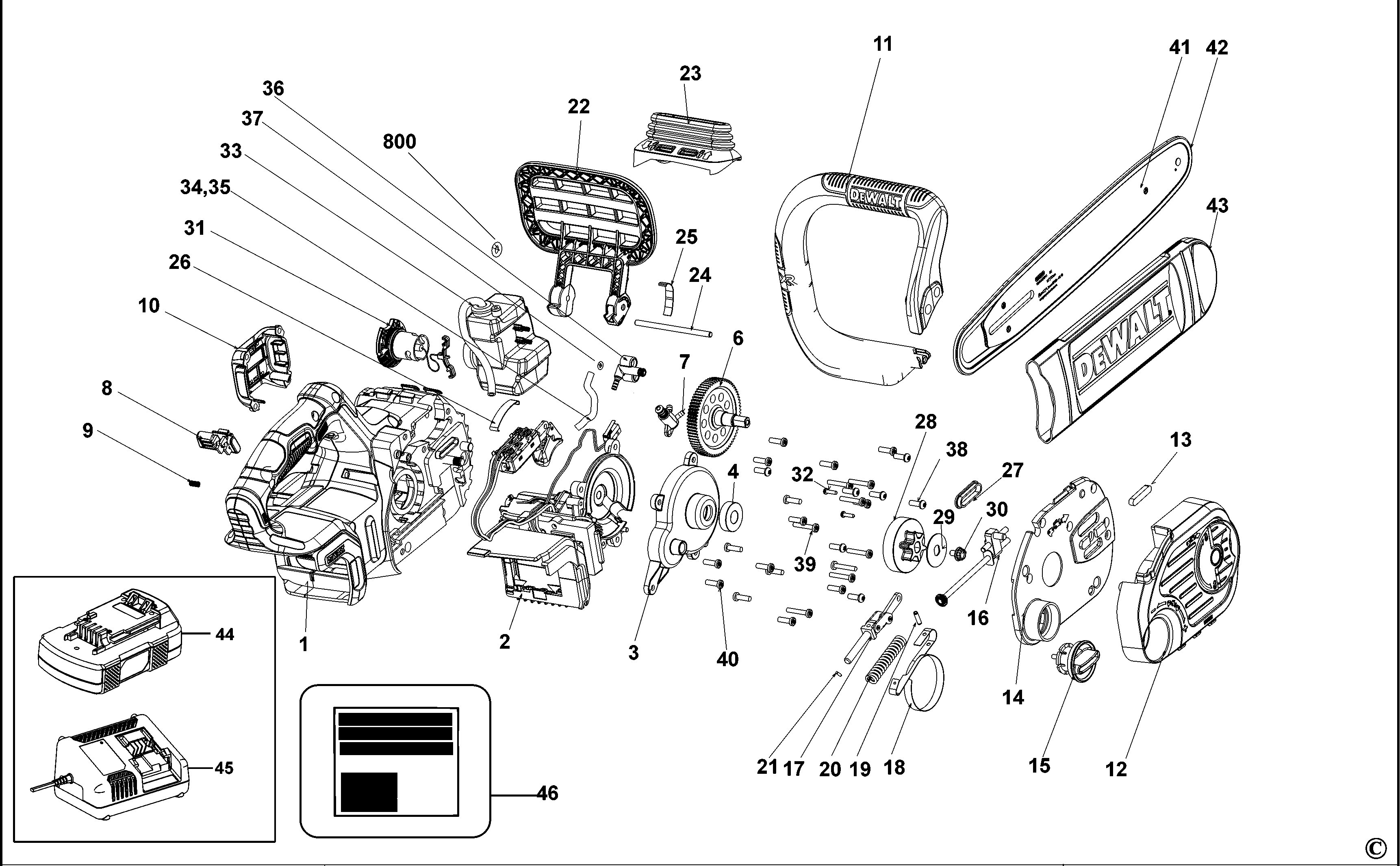

DCM565 CHAINSAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N496647 | 1 | HOUSING | XE | |||
| 2 | N784302 | 1 | MOTOR SA | XE | |||
| 3 | N604398 | 1 | COVER SA | XE | |||
| 4 | N150961 | 1 | BEARING | XE | |||
| 6 | N539694 | 1 | OUTPUT SHAFT SA | XE | |||
| 7 | 90624557 | 1 | PUMP SA | XE | |||
| 8 | N503277 | 1 | BUTTON LOCK-OFF | XE | |||
| 9 | N433343 | 1 | SPRING | XE | |||
| 10 | N507146 | 1 | END CAP | XE | |||
| 11 | N505189 | 1 | Handle | XE | |||
| 12 | N723753 | 1 | COVER | XE | |||
| 13 | 90622086 | 1 | SEAL | XE | |||
| 14 | 90609778 | 1 | COVER | XE | |||
| 15 | N738912 | 1 | KNOB SA | XE | |||
| 16 | 90626481 | 1 | ADJUSTER | CHAIN | XE | ||
| 17 | N523178 | 1 | BRAKE | XE | |||
| 18 | 90638025 | 1 | STRAP | XE | |||
| 19 | 90627301 | 1 | SPIROL PIN | XE | |||
| 20 | 90609777 | 1 | SPRING | XE | |||
| 21 | 90594864 | 1 | PIN | XE | |||
| 22 | 90609587 | 1 | GUARD | XE | |||
| 23 | N507145 | 1 | SEAL | XE | |||
| 24 | 90618528 | 1 | PIN | XE | |||
| 25 | 90621730 | 1 | LEAF SPRING | XE | |||
| 26 | 90622670 | 1 | LEAF SPRING | XE | |||
| 27 | 90618051 | 1 | SEAL | XE | |||
| 28 | 90618228 | 1 | SPROCKET | XE | |||
| 29 | 90618229 | 1 | WASHER | XE | |||
| 30 | 90639221 | 1 | BOLT | XE | |||
| 31 | 90618141 | 1 | CAP | XE | |||
| 32 | 330019-28 | 1 | SCREW | XE | |||
| 33 | N539697 | 1 | TANK | XE | |||
| 34 | 90609542 | 1 | TUBE | XE | |||
| 35 | 90620845 | 1 | SPRING | XE | |||
| 36 | 90104269 | 1 | PLUG | XE | |||
| 37 | 90104270 | 1 | O RING | XE | |||
| 38 | 330019-11 | 1 | SCREW | M4.55x13 T20 | XE | ||
| 39 | 330019-14 | 1 | SCREW | XE | |||
| 40 | 330019-12 | 1 | SCREW | XE | |||
| 41 | N594322 | 1 | BAR | XE | |||
| 42 | N580237 | 1 | CHAIN | XE | |||
| 43 | N517988 | 1 | SHEATH | 30CM | XE | ||
| 44 | N210873 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182-XE | DCM565M1 | XE | |
| 44 | N891525 | 1 | BATTERY 18V - 3.0AH - 54WH | DCB187-XE | DCM565L1 | XE | |
| 45 | N406065 | 1 | CHARGER SA | DCM565M1 / L1 | XE | ||
| 45 | N126190 | 1 | CHARGER 10.8V - 18V | 10.8 - 18V - DCB105; DCB105-XE | XE | ||
| 46 | N661835 | 1 | RATING LABEL | XE | |||
| 800 | 90618339 | 1 | O RING | XE |
