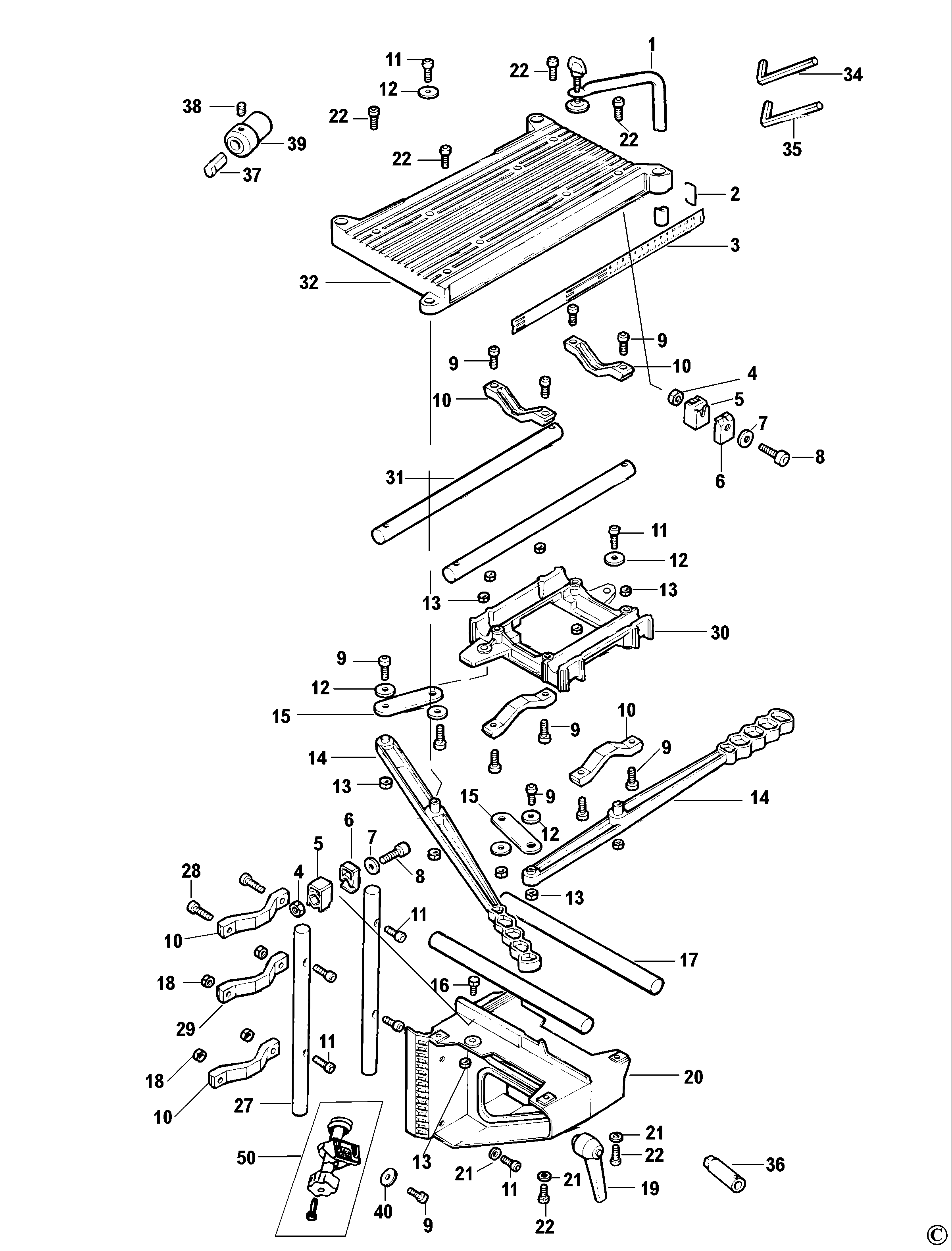

DW600 MORTISING ATTACHMENT Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860579-00 | 1 | CLAMP | XJ | |||
| 2 | 860569-00 | 3 | SPRING | XJ | |||
| 3 | 861141-01 | 1 | SCALE | XJ | |||
| 4 | 860083-04 | 2 | NUT | XJ | |||
| 5 | 860593-00 | 2 | CLAMP | XJ | |||
| 6 | 860594-00 | 2 | CLAMP | XJ | |||
| 7 | 860073-03 | 2 | WASHER M8 | XJ | |||
| 8 | 860093-00 | 2 | SCREW | XJ | |||
| 9 | 860093-09 | 13 | SCREW | XJ | |||
| 10 | 860576-01 | 6 | BRIDGE | XJ | |||
| 11 | 860093-08 | 10 | SCREW | XJ | |||
| 12 | 860075-01 | 6 | WASHER | XJ | |||
| 13 | 860092-03 | 14 | NUT M5 | XJ | |||
| 14 | 860599-00 | 2 | LEVER | XJ | |||
| 15 | 860602-00 | 2 | LEVER | XJ | |||
| 16 | 860085-06 | 1 | SCREW | XJ | |||
| 17 | 863568-00 | 2 | COLUMN | XJ | |||
| 18 | 860092-04 | 4 | NUT,STOP M5 | XJ | |||
| 19 | 861840-00 | 2 | Handle | XJ | |||
| 20 | 176450 | 1 | BRACKET | XJ | |||
| 21 | 860073-01 | 8 | WASHER | XJ | |||
| 22 | 860093-10 | 8 | SCREW | XJ | |||
| 27 | 863566-00 | 2 | COLUMN | XJ | |||
| 28 | 860085-10 | 2 | SCREW | XJ | |||
| 29 | 860576-03 | 1 | BRIDGE | XJ | |||
| 30 | 860572-00 | 1 | SLIDE | XJ | |||
| 31 | 32081 | 2 | COLUMN | XJ | |||
| 32 | 860570-01 | 1 | TABLE WORK | XJ | |||
| 33 | 860085-11 | 2 | SCREW | XJ | |||
| 34 | 949882-01 | 1 | WRENCH 4 MM | XJ | |||
| 35 | 860098-04 | 1 | WRENCH 6 MM | XJ | |||
| 36 | 860584-00 | 1 | SPANNER | XJ | |||
| 37 | 863102-00 | 1 | WRENCH | XJ | |||
| 38 | 860088-07 | 1 | SCREW | XJ | |||
| 39 | 863569-00 | 1 | CHUCK | XJ | |||
| 40 | 761035-00 | 2 | WASHER | XJ | |||
| 41 | 860093-16 | 4 | SCREW | XJ | |||
| 50 | 862449-00 | 1 | SUPPORT SA | XJ |
