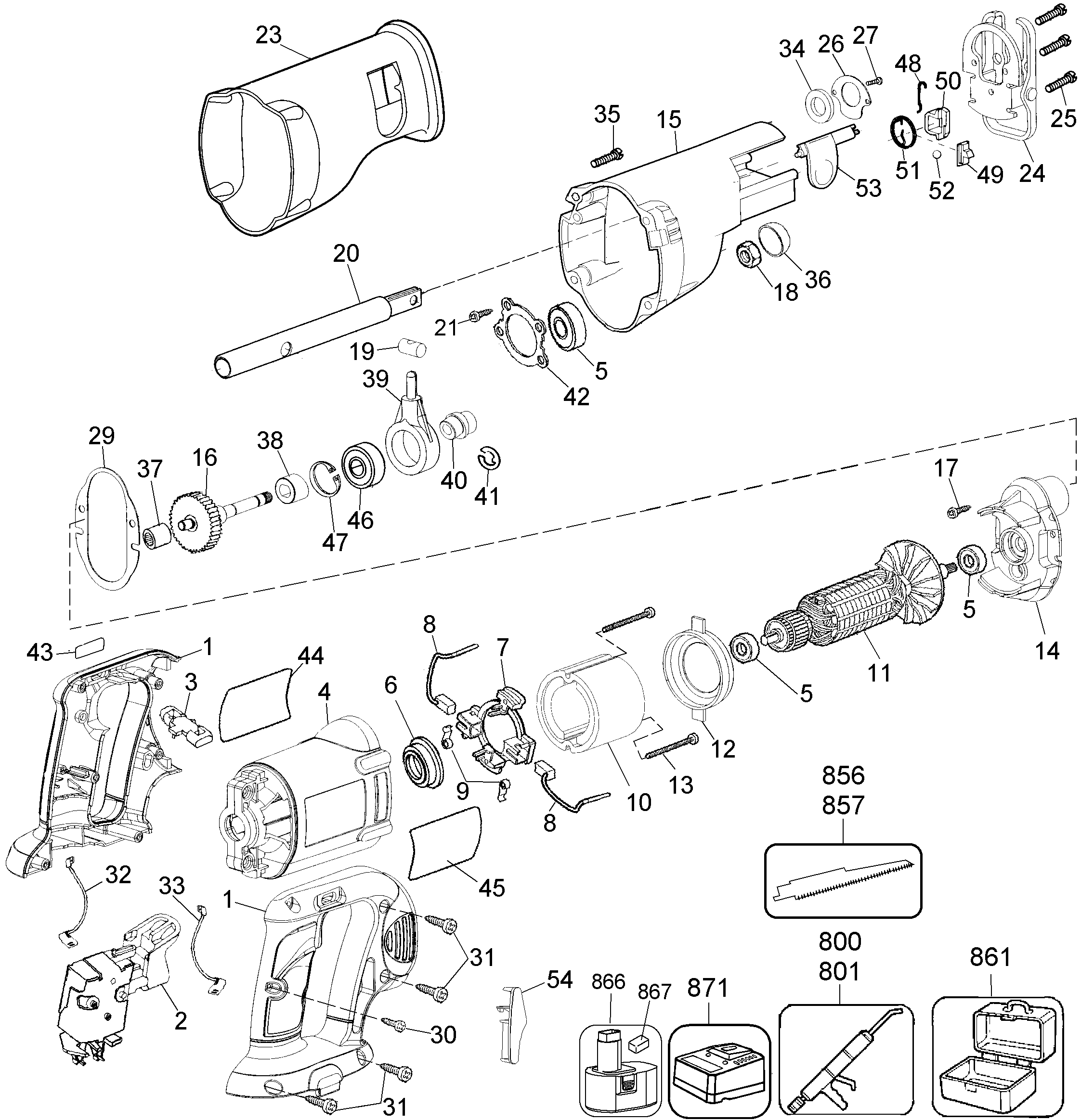

DW938K CUTSAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613840-00 | 1 | CLAMSHELL | HANDLE HOUSING SET | XE | ||
| 2 | 152274-19SV | 1 | SWITCH | XE | |||
| 3 | 607100-00 | 1 | LEVER LOCK-OFF | XE | |||
| 4 | 445217-02 | 1 | SLEEVE | XE | |||
| 4 | 382177-00 | 1 | FIELDCASE | XE | |||
| 5 | 330003-04 | 3 | BEARING | XE | |||
| 7 | 382178-01 | 1 | BRUSH FRAME | XE | |||
| 8 | 387558-01 | 2 | BRUSH & LEAD | XE | |||
| 9 | 445860-00 | 2 | BRUSH SPRING | XE | |||
| 10 | 388232-01SV | 1 | MAGNET | XE | |||
| 11 | 617777-00SV | 1 | ARMATURE | 9 TEETH | XE | ||
| 12 | 392415-00 | 1 | BAFFLE FAN | XE | |||
| 13 | 448269-00 | 2 | SCREW | XE | |||
| 14 | 382180-01 | 1 | GEARCASE COVER SA | INC 5, 37 | XE | ||
| 15 | 382625-01SV | 1 | GEARCASE SA | INC 5, 21, 42 | XE | ||
| 16 | 383883-00SV | 1 | GEAR & SHAFT | XE | |||
| 17 | 604609-00 | 2 | SCREW | XE | |||
| 18 | 382195-00 | 1 | NUT LH | LH THREAD | XE | ||
| 19 | 382187-00 | 1 | AXLE | XE | |||
| 20 | 623504-01 | 1 | OUTPUT SHAFT | XE | |||
| 21 | 330045-05 | 4 | SCREW | XE | |||
| 23 | N084699 | 1 | BOOT | XE | |||
| 24 | 382191-01 | 1 | SHOE SA | XE | |||
| 25 | 142940-00 | 3 | SCREW | XE | |||
| 26 | 387218-00 | 1 | RETAINER | XE | |||
| 27 | 330045-43 | 1 | SCREW | XE | |||
| 29 | 382626-00 | 1 | GASKET | XE | |||
| 30 | 682211-00 | 1 | SCREW | XE | |||
| 31 | 330019-04 | 6 | SCREW | XE | |||
| 32 | 382629-00 | 1 | LEAD BLACK | XE | |||
| 33 | 382630-00 | 1 | LEAD RED | XE | |||
| 34 | 5140006-30 | 1 | SEAL SA | XE | |||
| 35 | 330019-15 | 4 | SCREW | XE | |||
| 36 | 383227-00 | 1 | CAP | XE | |||
| 37 | 093128-00 | 1 | BEARING NEEDLE | XE | |||
| 38 | 647342-00 | 1 | SERVICE KIT | INC. DRIVER & BRG | XE | ||
| 39 | 382196-00SV | 1 | WOBBLE ASSY | INC 46, 47 | XE | ||
| 40 | 647342-00 | 1 | SERVICE KIT | INC. DRIVER & BRG | XE | ||
| 41 | 058836-00 | 1 | RETAINER | XE | |||
| 42 | 383668-01 | 1 | RETAINING PLATE | XE | |||
| 43 | 382816-01 | 1 | WARNING LABEL | XE | |||
| 44 | 614878-00 | 1 | IDENTITY LABEL | XE | |||
| 45 | 385712-01 | 1 | NP:DW938 T2 | XE | |||
| 46 | 605040-25 | 1 | BEARING,BALL | XE | |||
| 47 | 099022-02 | 1 | RET RING | XE | |||
| 48 | 620663-00 | 1 | LOCK PIN | XE | |||
| 49 | 383749-01 | 1 | SLIDE | XE | |||
| 50 | 604731-00 | 1 | BLADE CLAMP | XE | |||
| 51 | 623343-00 | 1 | SPRING | XE | |||
| 52 | 000903-00 | 1 | BALL | XE | |||
| 53 | 616450-00 | 1 | LEVER SA | XE | |||
| 54 | 387213-00 | 1 | COVER | XE | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | XE | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | XE | ||
| 861 | N152704 | 1 | KITBOX | XE | |||
| 866 | DE9095 | 1 | BATTERY 18V - 2.0AH - 36WH | Ni-Cad | ACC | XE | |
| 867 | 645221-00 | 1 | CAP | XE | |||
| 871 | DE9108-XE | 1 | XR2T CHARGER | ACC | XE |
