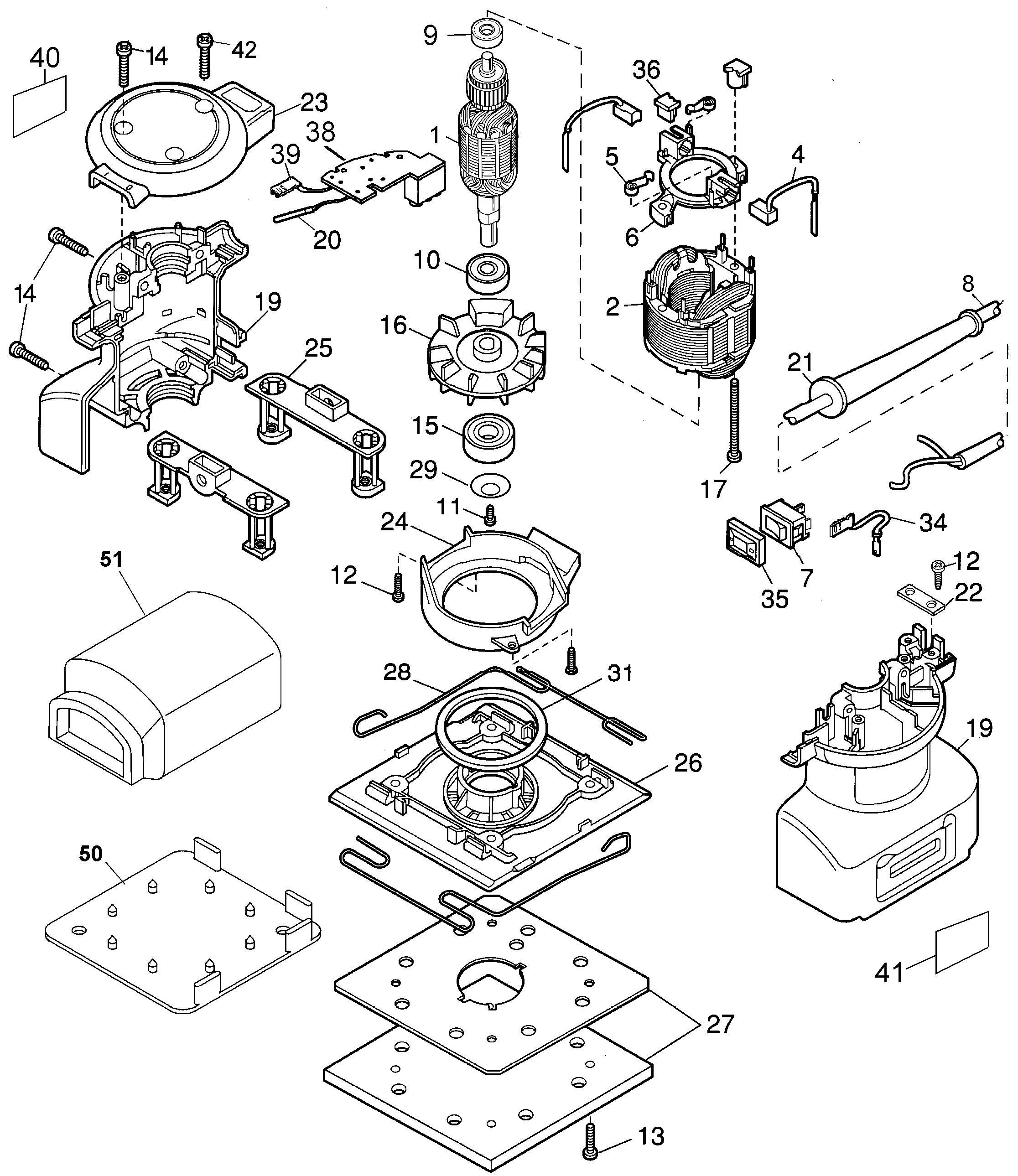

DW411 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 578863-01 | 1 | ARMATURE 230V | INC. 9,10 | XE | ||
| 2 | 807254-09 | 1 | FIELD 230V | XE | |||
| 4 | 445861-19 | 2 | BRUSH | XE | |||
| 5 | 445860-00 | 2 | BRUSH SPRING | XE | |||
| 6 | 449899-05 | 1 | RING | INC. 5 | XE | ||
| 7 | 144960-00 | 1 | SWITCH | XE | |||
| 8 | 444469-41 | 1 | CORDSET | XE | |||
| 9 | 605040-05 | 1 | BEARING | XE | |||
| 10 | 330003-17 | 1 | BEARING | XE | |||
| 11 | 098012-11 | 1 | SCREW | XE | |||
| 12 | 330019-02 | 4 | SCREW | XE | |||
| 13 | 464285-00 | 4 | SCREW | XE | |||
| 14 | 330019-13 | 6 | SCREW | M4X19 T20 | XE | ||
| 15 | 330003-64 | 1 | BEARING | XE | |||
| 16 | 464281-00 | 1 | FAN | XE | |||
| 17 | 330019-08 | 2 | SCREW | XE | |||
| 19 | 464279-15 | 1 | CLAMSHELL | XE | |||
| 20 | 825209-00 | 2 | CONNECTOR | XE | |||
| 21 | 330005-01 | 1 | CORD PROTECTOR | XE | |||
| 22 | 380414-00 | 1 | CORD CLAMP | XE | |||
| 23 | 285252-00 | 1 | CAP | XE | |||
| 24 | 144964-00 | 1 | COVER | XE | |||
| 25 | 144988-02 | 2 | FOOT | XE | |||
| 26 | N073798 | 1 | BASE | 1/4 SHEET | XE | ||
| 27 | 151284-00SV | 1 | PAD | XE | |||
| 28 | 151288-00 | 2 | CLAMP | XE | |||
| 29 | 151652-00 | 1 | WASHER | XE | |||
| 31 | 144974-00 | 1 | SEAL | XE | |||
| 34 | 144989-00 | 1 | TERMINAL & LEAD | BLACK, 20GA | INC. 20,39 | XE | |
| 35 | 144983-07 | 1 | COVER | XE | |||
| 36 | 144956-00 | 2 | NUT | XE | |||
| 38 | 145283-03 | 1 | PCB | Tyco | XE | ||
| 39 | 445964-00 | 2 | TERMINAL | XE | |||
| 40 | 608433-00 | 1 | NAMEPLATE | DW411-XE TY 1 | XE | ||
| 41 | 382956-00 | 1 | IDENTITY LABEL | XE | |||
| 42 | 146679-00 | 1 | SCREW | XE | |||
| 50 | 144954-00 | 1 | PUNCH | XE | |||
| 51 | 608358-00 | 1 | DUSTBAG | XE |
