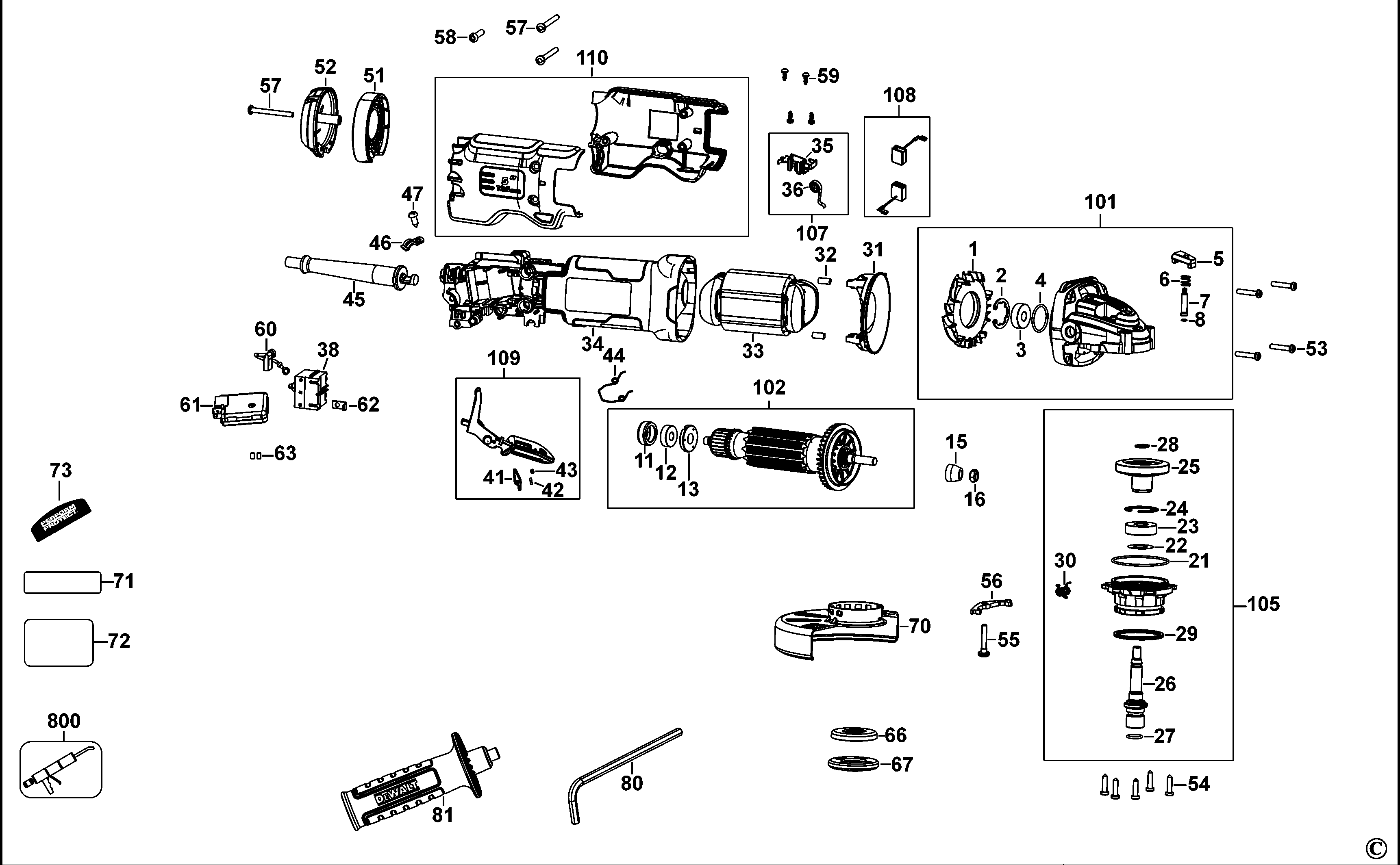

DWE4263 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N401958 | 1 | DEFLECTOR | XE | |||
| 2 | N453031 | 1 | RETAINER | XE | |||
| 3 | N175104 | 1 | BEARING | XE | |||
| 4 | N119639 | 1 | O RING | XE | |||
| 5 | N278899 | 1 | BUTTON | XE | |||
| 6 | N263579 | 1 | SPRING | XE | |||
| 7 | N481683 | 1 | LOCK PIN | XE | |||
| 8 | N263699 | 1 | O RING | XE | |||
| 11 | 641823-00 | 1 | SLEEVE | XE | |||
| 12 | N130916 | 1 | BEARING | XE | |||
| 13 | N449233 | 1 | MAGNET | XE | |||
| 15 | N423537 | 1 | PINION | XE | |||
| 16 | N372039 | 1 | NUT | XE | |||
| 21 | N307625 | 1 | O RING | XE | |||
| 22 | N400478 | 1 | WASHER | XE | |||
| 23 | 605040-24 | 1 | BEARING | XE | |||
| 24 | N481950 | 1 | RETAINER | XE | |||
| 25 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | XE | ||
| 26 | N163702 | 1 | SPINDLE | M14 | XE | ||
| 27 | N420261 | 1 | O RING | XE | |||
| 28 | 444793-00 | 1 | CIRCLIP | XE | |||
| 29 | N135116 | 1 | WASHER SPRING | XE | |||
| 30 | N465886 | 1 | SPRING | XE | |||
| 31 | N399419 | 1 | BAFFLE FAN | XE | |||
| 32 | 949638-02 | 2 | DAMPER | XE | |||
| 33 | N474976 | 1 | FIELD 230V | XE | |||
| 34 | N445564 | 1 | FIELDCASE | XE | |||
| 35 | N335560 | 2 | BRUSHBOX | XE | |||
| 36 | N273780 | 2 | SPRING | XE | |||
| 38 | N404377 | 1 | SWITCH | XE | |||
| 41 | 397657-00 | 1 | LEVER LOCK-OFF | Lock Off | XE | ||
| 42 | 099204-14 | 1 | ROLL PIN | XE | |||
| 43 | 150264-01 | 1 | SPRING | XE | |||
| 44 | N442909 | 1 | SPRING | XE | |||
| 45 | N475712 | 1 | CORDSET | XE | |||
| 46 | 619328-00 | 1 | CORD CLAMP | XE | |||
| 47 | 330065-06 | 1 | SCREW | XE | |||
| 51 | N563707 | 1 | DUST PORT | DES STATOR | XE | ||
| 52 | N402946 | 1 | END CAP | BLACK | XE | ||
| 53 | N371839 | 4 | SCREW | XE | |||
| 54 | 330045-06 | 5 | SCREW | XE | |||
| 55 | N297219 | 1 | SCREW | XE | |||
| 56 | N637725 | 1 | LEVER | XE | |||
| 57 | N389438 | 3 | SCREW | XE | |||
| 58 | 330065-09 | 1 | SCREW | XE | |||
| 59 | 593478-00 | 4 | SCREW | M3 X 8 | XE | ||
| 60 | 631028-00 | 1 | LEAD SA | RED, 80mm, 18GA | XE | ||
| 61 | N488901 | 1 | CONTROL MODULE SA | 230V | XE | ||
| 62 | 634599-00 | 1 | TERMINAL | XE | |||
| 63 | 633391-00 | 2 | SEAL | TERMINAL | XE | ||
| 66 | 391969-00 | 1 | INNER FLANGE | XE | |||
| 67 | N419748 | 1 | OUTER FLANGE | M14 | XE | ||
| 70 | N487790 | 1 | GUARD | XE | |||
| 71 | N400392 | 1 | BRAND LABEL | XE | |||
| 72 | N475710 | 1 | RATING PLATE | XE | |||
| 73 | N196273 | 1 | LABEL | PERFORM & PROTECT | XE | ||
| 80 | N107295 | 1 | HEX KEY | 6 mm | XE | ||
| 81 | N382311 | 1 | SIDE HANDLE | XE | |||
| 101 | N483617 | 1 | GEARCASE SA | XE | |||
| 102 | N474961 | 1 | ARMATURE 230V | XE | |||
| 105 | N475992 | 1 | GEARCASE COVER SA | XE | |||
| 107 | N413349 | 2 | BRUSHBOX SA | XE | |||
| 108 | N489059 | 1 | BRUSH PAIR 230V | XE | |||
| 109 | N413352 | 1 | PADDLE | XE | |||
| 110 | N453509 | 1 | CLAMSHELL SET | XE | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XE |
