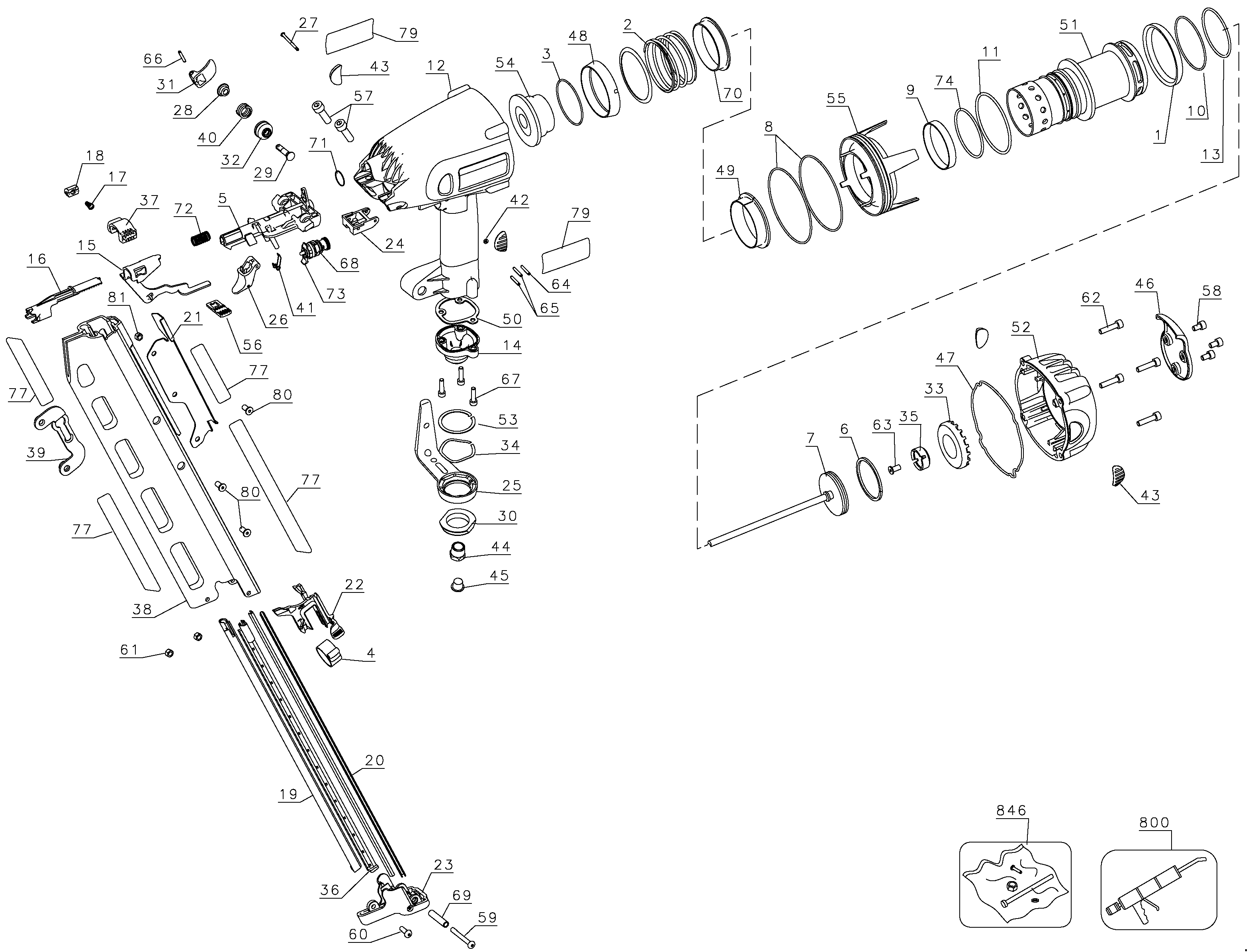

D51845 FULL ROUND HEAD FRAMING NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 390140-00 | 1 | SEAL | XE | |||
| 2 | 603413-00 | 1 | SPRING | HEAD VALVE | XE | ||
| 3 | 390146-00 | 1 | O RING | 2.239 x 0.070 | XE | ||
| 4 | 390147-00 | 1 | HUB | XE | |||
| 5 | 608601-00 | 1 | NOSE | XE | |||
| 6 | 390151-00 | 1 | PISTON RING | XE | |||
| 6 | 608611-00 | 1 | O RING | 1.859 * 0.139 | FOR PISTON W/CURVED RING GROOVE ONLY | XE | |
| 7 | 610757-00SV | 1 | PISTON | XE | |||
| 8 | 390156-00 | 2 | O RING | 96 x 2 | XE | ||
| 9 | 390159-00 | 1 | SEAL | XE | |||
| 10 | 390160-00 | 1 | O RING | 2.237 x 0.103 | XE | ||
| 11 | 612096-00 | 1 | O RING | 75 * 3 | XE | ||
| 12 | 390163-00 | 1 | HOUSING | XE | |||
| 13 | 390164-00 | 1 | O RING | 2.362 x 0.103 | XE | ||
| 14 | 612105-00 | 1 | END CAP | 3/8" NPT | XE | ||
| 15 | N016232 | 1 | CONTACT TRIP | UPPER | XE | ||
| 16 | 638750-00 | 1 | CONTACT | LOWER | XE | ||
| 17 | 390724-00 | 1 | SPRING | XE | |||
| 18 | 391804-00 | 1 | CAP | CONTACT TRIP ADJ. | XE | ||
| 19 | 391801-00 | 1 | LINER | LEFT | XE | ||
| 20 | 391803-00 | 2 | LINER | XE | |||
| 21 | 606632-01 | 1 | GUIDE | INCL. 75 | XE | ||
| 22 | 391805-00 | 1 | SLIDER | XE | |||
| 23 | 391798-00 | 1 | CAP | XE | |||
| 24 | N000248 | 1 | GUIDE | XE | |||
| 25 | 390744-00 | 1 | HOOK | XE | |||
| 26 | 395198-00SV | 1 | TRIGGER | XE | |||
| 27 | 395091-00 | 1 | PIN | XE | |||
| 28 | 391781-00 | 1 | WASHER | XE | |||
| 29 | 391782-00 | 1 | SHAFT | XE | |||
| 30 | 5140005-30 | 1 | NUT | INCL. NUT | XE | ||
| 31 | 391784-00 | 1 | LATCH | XE | |||
| 32 | 391785-00 | 1 | BUSHING | XE | |||
| 33 | 391786-00 | 1 | BUTTON | XE | |||
| 34 | 391787-00 | 1 | WASHER | XE | |||
| 35 | 391789-00 | 1 | BUMPER | XE | |||
| 36 | 391802-00 | 1 | LINER | XE | |||
| 37 | 391807-00 | 1 | COVER | XE | |||
| 38 | 5140000-24 | 1 | MAGAZINE | XE | |||
| 39 | 391788-00 | 1 | BRACKET | MAGAZINE | XE | ||
| 40 | 391812-00 | 1 | SPRING | XE | |||
| 41 | 391813-00 | 1 | SPRING | XE | |||
| 42 | 391814-00 | 1 | GROMMET | XE | |||
| 43 | 616557-00 | 4 | LABEL | XE | |||
| 44 | 395195-00 | 1 | BUSHING | XE | |||
| 45 | 395196-00 | 1 | PLUG | XE | |||
| 46 | 5140026-36 | 1 | DEFLECTOR | XE | |||
| 47 | 395201-00 | 1 | SEAL | XE | |||
| 48 | N009190 | 1 | COLLAR | XE | |||
| 49 | N009191 | 1 | SPRING RETAINER | XE | |||
| 50 | 649365-00 | 1 | GASKET | XE | |||
| 51 | 395207-00 | 1 | CYLINDER | XE | |||
| 52 | 395208-01 | 1 | COVER-TOP | XE | |||
| 53 | 395211-00 | 1 | SPACER | XE | |||
| 54 | 395213-00 | 1 | BUMPER | XE | |||
| 55 | 395215-00 | 1 | COVER | XE | |||
| 56 | 603380-00 | 1 | ADJUSTER | XE | |||
| 57 | 603383-00 | 2 | SCREW | XE | |||
| 58 | 603384-00 | 3 | SCREW | XE | |||
| 59 | 603385-00 | 1 | SCREW | XE | |||
| 60 | 603386-00 | 1 | SCREW | XE | |||
| 61 | 603387-00 | 2 | NUT | XE | |||
| 62 | 603390-00 | 4 | SCREW | XE | |||
| 63 | 650159-00 | 1 | SCREW | XE | |||
| 64 | 650155-00 | 1 | SPIROL PIN | XE | |||
| 65 | 650156-00 | 2 | SPIROL PIN | XE | |||
| 66 | 603394-00 | 1 | PIN | XE | |||
| 67 | 603395-00 | 3 | SCREW | XE | |||
| 68 | 5140095-73 | 1 | TRIGGER VALVE KIT | INCL. 73 | XE | ||
| 69 | 603397-00 | 1 | SPACER | XE | |||
| 70 | 603561-00 | 1 | BAND | XE | |||
| 71 | 617161-00 | 1 | O RING | 14 X 2 | XE | ||
| 72 | 390735-00 | 1 | SPRING | XE | |||
| 73 | 5140095-73 | 1 | TRIGGER VALVE KIT | XE | |||
| 74 | 606640-00 | 1 | O RING | 103 x 2.3 | XE | ||
| 77 | 609280-00 | 1 | LABEL | XE | |||
| 79 | 603409-00 | 2 | LABEL | XE | |||
| 80 | 610779-00 | 3 | SCREW | M6x1.0x10 BTN HD | XE | ||
| 81 | 389038-00 | 1 | LOCK NUT | XE | |||
| 800 | 429995-00 | 1 | GREASE 150 GMS | 5.3oz. TUBE | XE | ||
| 846 | 606111-00 | 1 | O RING KIT | XE | |||
| 846 | 606130-00 | 1 | BUMPER | D518003 | XE | ||
| 846 | 606131-00SV | 1 | MAGAZINE SPRING | XE | |||
| 846 | 605708-00 | 1 | OIL | 8 Ounces | XE | ||
| 846 | 605709-00 | 1 | OIL | 20 Ounces | XE | ||
| 846 | 609123-00 | 1 | SAFETY GLASSES | XE | |||
| 846 | 395440-00 | 1 | OIL | 1 oz BOTTLE | XE | ||
| 846 | 609172-00 | 1 | TRIGGER | SEQUENTIAL KIT | XE | ||
| 846 | 606123-00 | 1 | PISTON SA | D518452 | XE | ||
| 846 | 606132-00 | 1 | TRIGGER | D510005 | XE |
