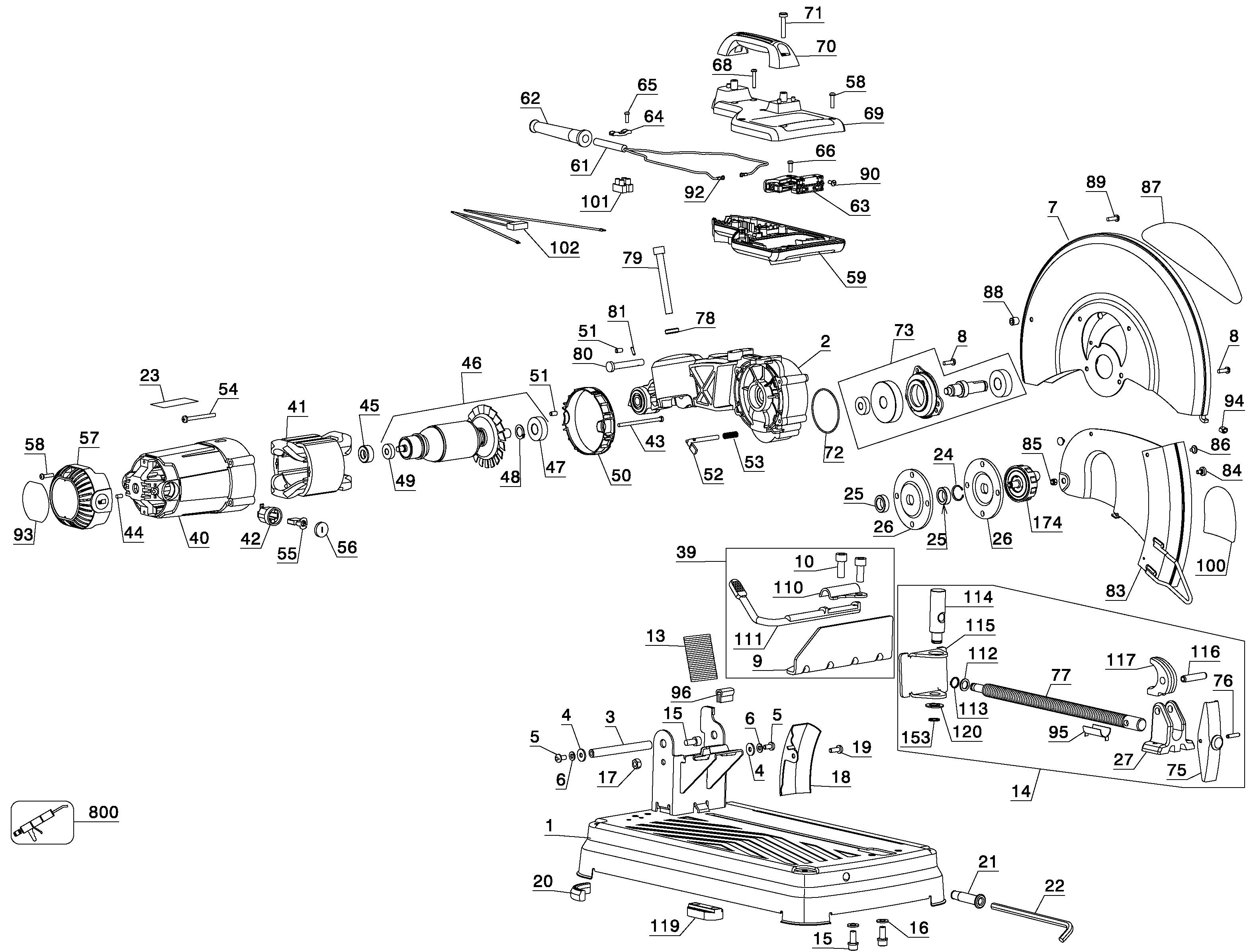

D28715 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 639944-01 | 1 | BASE | XE | |||
| 2 | N105335 | 1 | ARM | XE | |||
| 3 | 621101-00 | 1 | PIVOT SHAFT | XE | |||
| 4 | 330016-18 | 1 | WASHER | XE | |||
| 5 | 153778-01 | 2 | SCREW | XE | |||
| 6 | 098197-10 | 2 | WASHER LOCK | XE | |||
| 7 | 639967-00 | 1 | GUARD UPPER | XE | |||
| 8 | 330045-15 | 4 | SCREW | XE | |||
| 9 | 382677-00 | 1 | FENCE | XE | |||
| 10 | 383450-00 | 2 | SCREW | XE | |||
| 13 | 387282-00 | 1 | SPRING | XE | |||
| 14 | 384180-00S | 1 | VISE ASSEMBLY | XE | |||
| 15 | 098123-16 | 4 | SCREW | XE | |||
| 16 | 098197-09 | 2 | WASHER | XE | |||
| 17 | 330021-02 | 1 | NUT | XE | |||
| 18 | 648524-00 | 1 | DEFLECTOR | XE | |||
| 19 | 330045-64 | 1 | SCREW | M6 X 16 PATCHLOCK | XE | ||
| 20 | 383243-00 | 4 | FOOT | XE | |||
| 21 | 386765-00 | 1 | HOLDER TOOL | XE | |||
| 22 | 384717-00 | 1 | WRENCH | XE | |||
| 23 | 647920-00 | 1 | RATING PLATE | XE | |||
| 24 | 389750-00 | 1 | RETAINER | XE | |||
| 25 | 621081-00 | 2 | ADAPTOR | XE | |||
| 26 | 640168-00 | 2 | WASHER CLAMP | XE | |||
| 27 | 383810-00 | 1 | MOUNT SA | Packaged SA | XE | ||
| 39 | 384137-00 | 1 | FENCE SA | XE | |||
| 40 | 621067-02 | 1 | FIELDCASE | XE | |||
| 41 | 640192-01 | 1 | FIELD 230V | XE | |||
| 42 | 622440-00 | 2 | BRUSH HOLDER | XE | |||
| 43 | 330019-34 | 2 | SCREW | XE | |||
| 44 | 330022-18 | 2 | SCREW | XE | |||
| 45 | 609970-00 | 1 | SLEEVE INSULATING | XE | |||
| 46 | 621069-01 | 1 | ARMATURE SA | 230V | XE | ||
| 47 | 605040-27 | 1 | BEARING | XE | |||
| 48 | 144803-00 | 1 | CIRCLIP | XE | |||
| 49 | N110359 | 1 | BEARING | XE | |||
| 50 | 391375-00 | 1 | BAFFLE FAN | XE | |||
| 51 | 623092-00 | 2 | PLUG | RUBBER | XE | ||
| 52 | 621087-00 | 1 | SPINDLE LOCK | XE | |||
| 53 | 621088-00 | 1 | SPRING | XE | |||
| 54 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | XE | ||
| 55 | N558583 | 2 | BRUSH | XE | |||
| 55 | N558583 | 2 | BRUSH | XE | |||
| 56 | 622441-00 | 2 | BRUSH CAP | XE | |||
| 57 | 621118-00 | 1 | END CAP | XE | |||
| 58 | 330019-13 | 5 | SCREW | M4X19 T20 | XE | ||
| 59 | 639958-00 | 1 | LOWER HANDLE | XE | |||
| 61 | 330120-28 | 1 | CORDSET | XE | |||
| 62 | 330005-02 | 1 | CORD PROTECTOR | XE | |||
| 63 | 639961-02 | 1 | SWITCH SA | XE | |||
| 64 | 386540-00 | 1 | CORD CLAMP | XE | |||
| 65 | 330019-02 | 2 | SCREW | XE | |||
| 66 | 330019-11 | 1 | SCREW | M4.55x13 T20 | XE | ||
| 68 | 330045-08 | 4 | SCREW | XE | |||
| 69 | 639963-00 | 1 | HANDLE UPPER | XE | |||
| 70 | 621082-00 | 1 | Handle | XE | |||
| 71 | 330019-22 | 2 | SCREW | M5.74x32 | XE | ||
| 72 | 099180-46 | 1 | O RING | XE | |||
| 73 | 621074-01S | 1 | SPINDLE & GEAR | XE | |||
| 75 | 383252-00 | 1 | LOCK HANDLE | XE | |||
| 76 | 330036-08 | 1 | PIN | XE | |||
| 77 | 395856-00 | 1 | ROD | XE | |||
| 78 | 383246-01 | 1 | WASHER SPECIAL | NOT INCLUDED | XE | ||
| 79 | 383286-00 | 1 | SCREW | NOT INCLUDED | XE | ||
| 80 | 621104-00 | 1 | PIN | LOCK DOWN | XE | ||
| 81 | N058667 | 1 | SPIROL PIN | XE | |||
| 83 | 639971-00 | 1 | GUARD LOWER | XE | |||
| 84 | 384844-00 | 1 | SCREW SPECIAL | XE | |||
| 85 | 148641-00 | 1 | LOCK NUT | XE | |||
| 86 | 383637-00 | 3 | BUMPER | RUBBER | XE | ||
| 87 | 621093-00 | 1 | IDENTITY LABEL | XE | |||
| 88 | 629619-00 | 1 | SPACER | XE | |||
| 89 | 330045-16 | 1 | SCREW | XE | |||
| 90 | 648204-00 | 5 | SCREW | XE | |||
| 92 | 625933-00 | 3 | TERMINAL | RING INSULATED | XE | ||
| 93 | 391325-00 | 1 | IDENTITY LABEL | XE | |||
| 94 | 386526-00 | 1 | STOP RUBBER | XE | |||
| 95 | 383451-00 | 1 | SADDLE | XE | |||
| 96 | 642739-00 | 1 | STOP | XE | |||
| 100 | 639986-00 | 1 | LABEL | XE | |||
| 101 | 393520-00 | 1 | TERMINAL BLOCK | XE | |||
| 102 | 628939-00 | 1 | CAPACITOR | XE | |||
| 110 | 391459-00 | 1 | PLATE LOCK | XE | |||
| 111 | 382540-00 | 1 | LEVER | XE | |||
| 112 | 384365-00 | 1 | WASHER | XE | |||
| 113 | 383169-00 | 1 | CIRCLIP | XE | |||
| 114 | 603988-00 | 1 | PIN | XE | |||
| 115 | 607278-00 | 1 | VICE JAW | XE | |||
| 116 | 386525-01 | 1 | DOWEL | XE | |||
| 117 | 383828-00 | 1 | LOCKING DEVICE | XE | |||
| 119 | 383254-00 | 1 | BLOCK | XE | |||
| 120 | 607592-00 | 1 | WASHER | XE | |||
| 153 | 398605-00 | 1 | RETAINER | XE | |||
| 174 | 629984-00S | 1 | BLADE CLAMP | XE | |||
| 800 | 5140061-28 | 1 | GREASE | XE |
