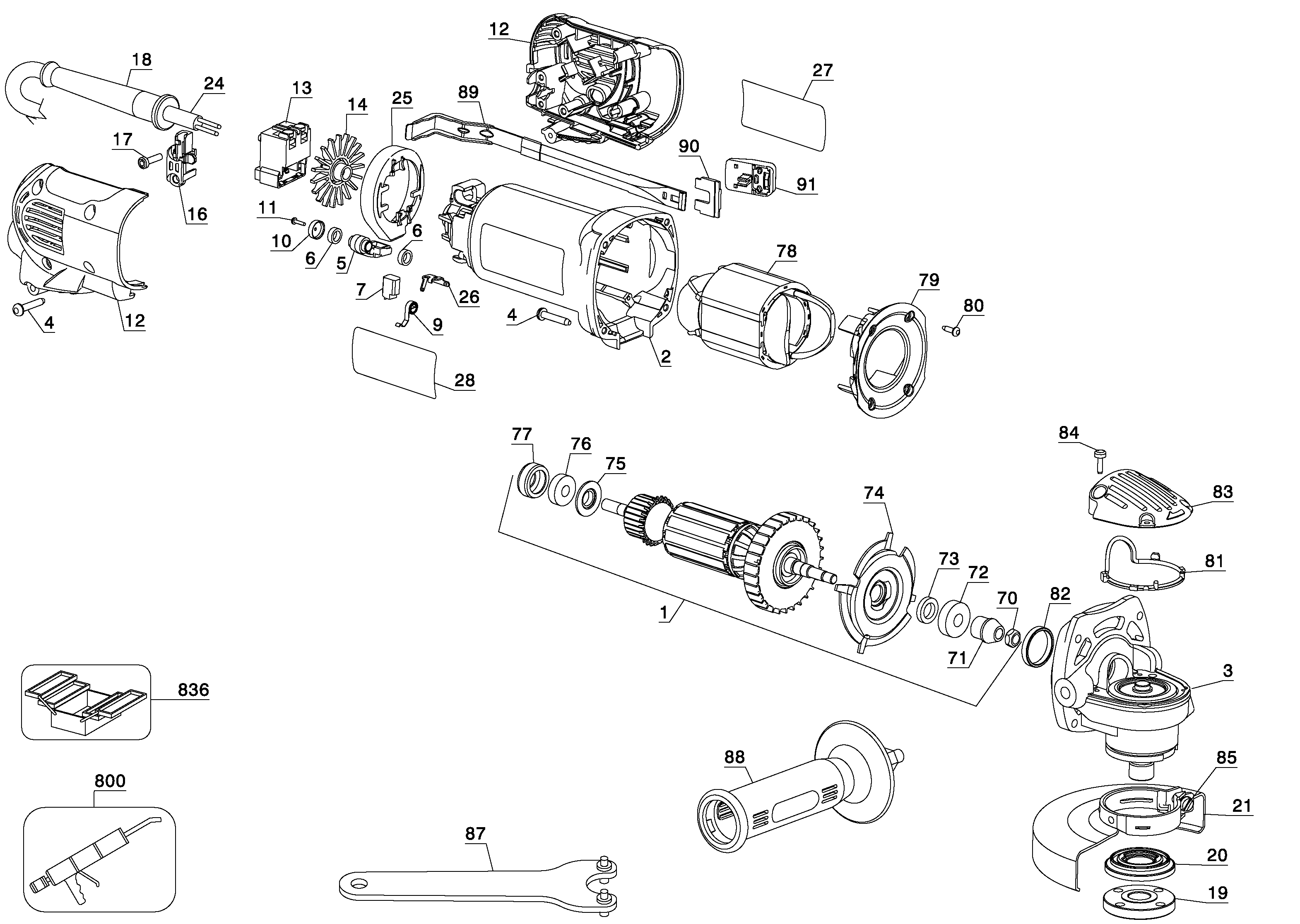

D28106 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 623584-04 | 1 | ARMATURE 230V | 230V | XE | ||
| 2 | 625242-05 | 1 | FIELDCASE | XE | |||
| 3 | 623586-03 | 1 | GEARCASE SA | W/SPINDLE M10 | XE | ||
| 4 | 330065-31 | 9 | PLASTIC SCREW | XE | |||
| 5 | 648743-00 | 2 | ARM | BRUSH | XE | ||
| 6 | 623592-00 | 4 | FELT SEAL | XE | |||
| 7 | 636128-03 | 2 | BRUSH CUT OFF | 230V POP OFF | XE | ||
| 9 | 623589-00 | 2 | BRUSH SPRING | XE | |||
| 10 | 623591-00 | 2 | BRUSH CAP | XE | |||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | XE | ||
| 12 | 625243-04 | 1 | HANDLE SA | XE | |||
| 13 | 641889-01S | 1 | SWITCH | XE | |||
| 14 | N055787 | 1 | SEPARATOR | Particle | XE | ||
| 16 | 636963-00 | 1 | CORD CLAMP | XE | |||
| 17 | 330019-03 | 2 | SCREW | XE | |||
| 18 | 330005-01 | 1 | CORD PROTECTOR | XE | |||
| 19 | 656927-00 | 1 | NUT | XE | |||
| 20 | 633257-01 | 1 | INNER FLANGE | XE | |||
| 21 | 636116-03 | 1 | GUARD | XE | |||
| 24 | 562226-71 | 1 | CORDSET | XE | |||
| 25 | 637616-00 | 1 | BAFFLE | XE | |||
| 26 | 623593-00 | 2 | TERMINAL | XE | |||
| 27 | 635892-00 | 1 | BRAND LABEL | XE | |||
| 28 | 640993-00 | 1 | RATING PLATE | D28106-XE | XE | ||
| 70 | 604484-00 | 1 | NUT | XE | |||
| 71 | 623564-00 | 1 | PINION | 9 TOOTH | XE | ||
| 72 | 605040-67 | 1 | BEARING | XE | |||
| 73 | 623617-00 | 1 | FELT SEAL | XE | |||
| 74 | N422242 | 1 | RETAINER | XE | |||
| 75 | 623613-00 | 1 | WASHER | XE | |||
| 76 | 605040-02 | 1 | BEARING | XE | |||
| 77 | 641823-00 | 1 | SLEEVE | XE | |||
| 78 | 621220-08 | 1 | FIELD SA 230V | 230V | XE | ||
| 79 | 623572-00 | 1 | BAFFLE FAN | XE | |||
| 80 | 330065-25 | 4 | SCREW | XE | |||
| 81 | 623618-00 | 1 | GASKET | XE | |||
| 82 | 611492-00 | 1 | SLEEVE | XE | |||
| 83 | 623562-00 | 1 | GEARCASE COVER | XE | |||
| 84 | 385676-01 | 4 | SCREW | XE | |||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | XE | ||
| 87 | 401253-00 | 1 | WRENCH ROUND-PINS | XE | |||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | XE | ||
| 89 | 623610-00 | 1 | ARM LINK | XE | |||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | XE | ||
| 91 | 623608-00 | 1 | BUTTON START | XE | |||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | XE | ||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | XE | ||
| 836 | 233804-36 | 1 | DRIVER | T6 | XE |
