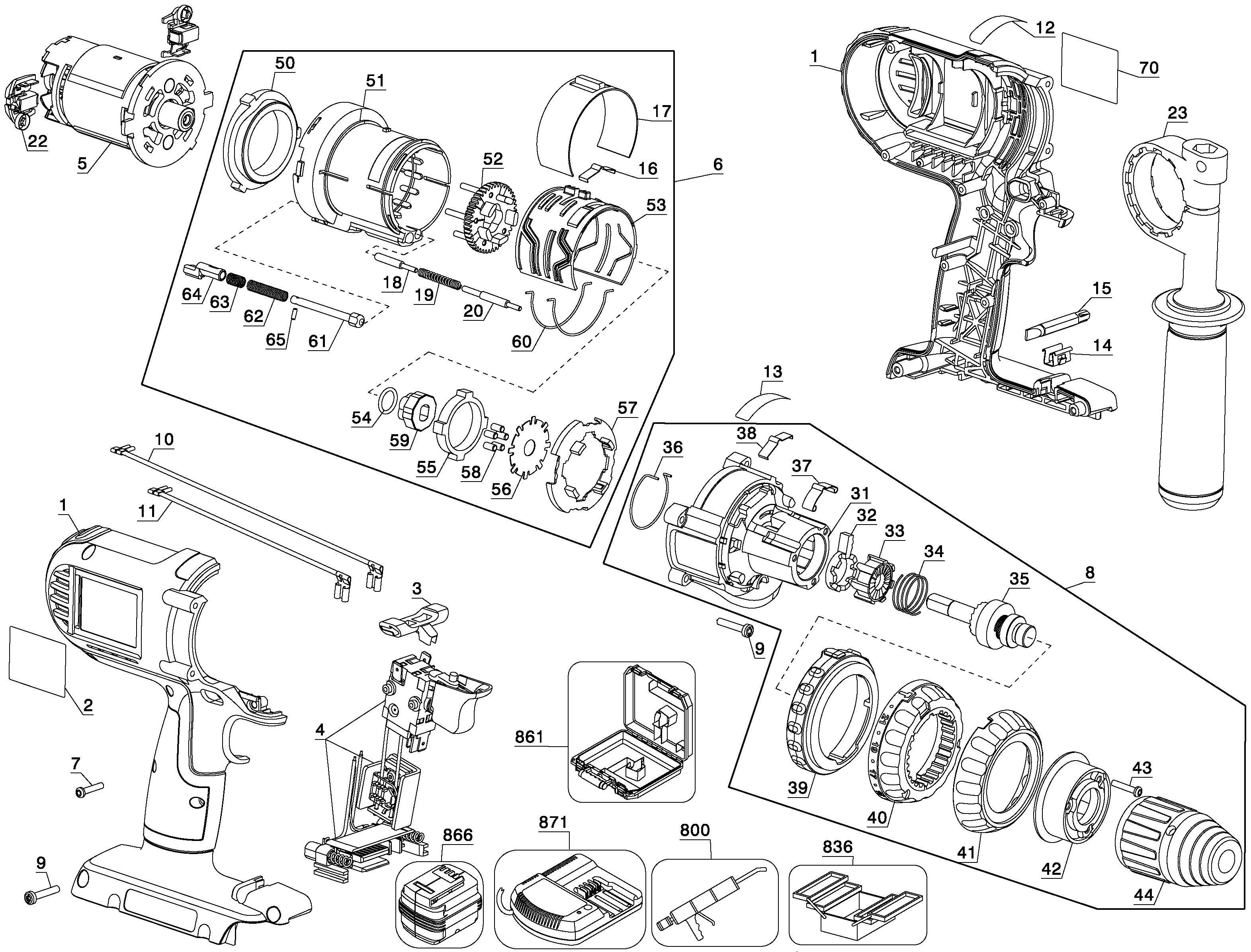

DC900KL CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 630141-00 | 1 | CLAMSHELL SET | XE | |||
| 2 | 636412-00 | 1 | LABEL | XE | |||
| 3 | 628741-00 | 1 | LEVER | XE | |||
| 4 | 648672-02SV | 1 | SWITCH SA | XE | |||
| 5 | 639521-00SV | 1 | MOTOR & PINION | XE | |||
| 6 | 629059-00SV | 1 | TRANSMISSION SA | Incl. 16-20 | XE | ||
| 7 | 330019-00 | 6 | SCREW | M3x16 T10 PLASTITE | XE | ||
| 8 | 628025-00SV | 1 | CHUCK & SPINDLE SA | Incl. 31-44 | XE | ||
| 9 | 330019-52 | 6 | SCREW | XE | |||
| 10 | 389025-03 | 1 | BRUSH PAIR | Contains 10,11,22 (2) | XE | ||
| 11 | 389025-03 | 1 | BRUSH PAIR | Contains 10,11,22 (2) | XE | ||
| 12 | 631583-00 | 1 | LABEL | 1-2-3 SELECTOR | XE | ||
| 13 | 631598-00 | 1 | LABEL | Selector Ring | XE | ||
| 14 | 148354-03 | 1 | HOLDER | XE | |||
| 15 | 607918-41 | 1 | BIT SCREWDRIVER | XE | |||
| 16 | 634729-00 | 1 | SPRING | XE | |||
| 17 | 394518-02 | 1 | SHROUD | XE | |||
| 18 | 630124-00 | 1 | PIN | XE | |||
| 19 | 613217-00 | 1 | SPRING | XE | |||
| 20 | 630125-00 | 1 | PIN | XE | |||
| 22 | 389025-03 | 1 | BRUSH PAIR | Contains 10,11,22 (2) | XE | ||
| 23 | 646594-00 | 1 | SIDE HANDLE | XE | |||
| 31 | 628021-00 | 1 | HOUSING SA | Nose cone & Brg. | XE | ||
| 32 | 394545-00 | 1 | CAM | XE | |||
| 33 | 638072-00 | 1 | RATCHET FIXED | XE | |||
| 34 | 394546-00 | 1 | SPRING | XE | |||
| 35 | 638427-00 | 1 | SPINDLE SA | XE | |||
| 36 | 399059-00 | 1 | SPRING | XE | |||
| 37 | 395460-00 | 1 | SPRING GUIDE | XE | |||
| 38 | 634729-00 | 1 | SPRING | XE | |||
| 39 | 630442-00 | 1 | COLLAR | Mode Collar | XE | ||
| 40 | 630443-00 | 1 | COLLAR | Clutch Collar | XE | ||
| 41 | 630444-00 | 1 | COLLAR | Metal Collar | XE | ||
| 42 | 630445-00 | 1 | CAP | Metal Cap | XE | ||
| 43 | 330019-00 | 3 | SCREW | M3x16 T10 PLASTITE | XE | ||
| 44 | N422782 | 1 | SERVICE KIT | Chuck & Spindle Assy | XE | ||
| 50 | 628002-00 | 1 | LOCKING RING | XE | |||
| 51 | 630063-00 | 1 | HOUSING GEAR | Gearbox | XE | ||
| 52 | 627988-00 | 1 | CARRIER SA | XE | |||
| 53 | 629104-00 | 1 | SELECTOR | XE | |||
| 54 | 050048-00 | 1 | RING | XE | |||
| 55 | 605008-01 | 1 | LOCKING RING | XE | |||
| 56 | 638700-00 | 1 | RETAINER | Spindle Lock Retain | XE | ||
| 57 | 628005-00 | 1 | RETAINER | XE | |||
| 58 | 330041-43 | 5 | PIN | XE | |||
| 59 | 634662-00 | 1 | ANVIL | XE | |||
| 60 | 629975-00 | 2 | WIRE STEEL | XE | |||
| 61 | 630028-00 | 1 | PIN | XE | |||
| 62 | 630709-00 | 1 | SPRING | XE | |||
| 63 | 630710-00 | 1 | SPRING | XE | |||
| 64 | 630029-00 | 1 | LOCK PIN | XE | |||
| 65 | 330043-03 | 1 | PIN | XE | |||
| 70 | 643760-00 | 1 | RATING PLATE | DC900KL-XE Type 1 | XE | ||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | XE | ||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | XE | |||
| 836 | 559662-99 | 1 | S.T.CHUCK REMOVAL JIG | XE | |||
| 836 | 559697-99 | 1 | S.T.INSERT | XE | |||
| 861 | N232344 | 1 | KITBOX | XE | |||
| 866 | DCB361 | 2 | BATTERY 36V - 2.0AH - 72WH | XE | |||
| 871 | DC9000-XE | 1 | CHARGER | XE |
