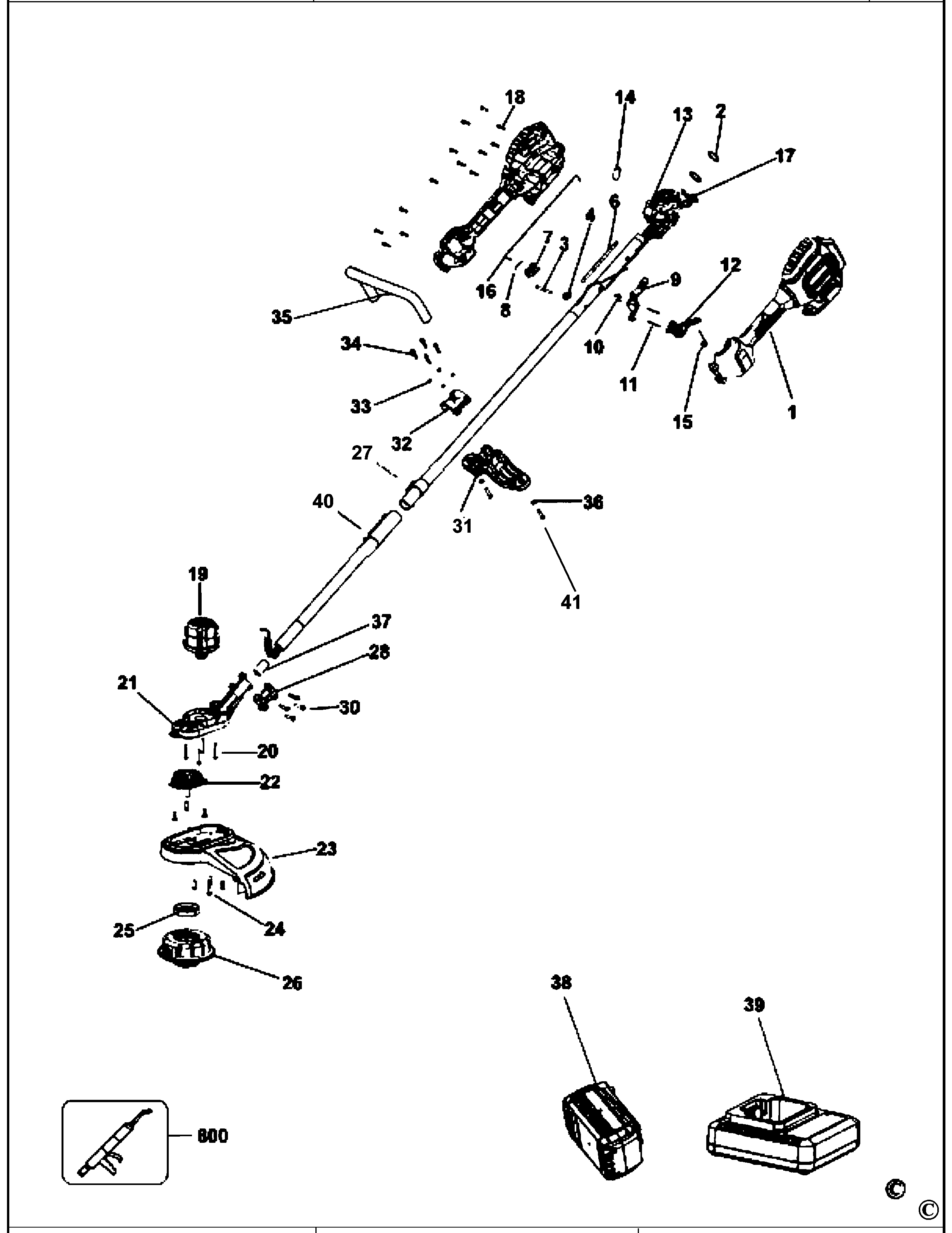

DCM561L1S STRING TRIMMER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	90613418-01	1	HANDLE SA			XE
2	90602632	2	RUBBER			XE
3	90608944	1	PIN			XE
4	90600458	1	SWITCH			XE
5	90608663-01	1	WIRE HARNESS			XE
6	90609633	1	COVER			XE
7	90602320	1	ACTUATOR			XE
8	N014681	1	LEAF SPRING			XE
9	90623756	1	ACTUATOR			XE
10	90602633	1	SPRING			XE
11	90608942	2	PIN			XE
12	90599030	1	TRIGGER			XE
13	90623025	1	INDUCTOR			XE
14	90623338	1	WASHER			XE
15	90602634	1	SPRING			XE
16	90614754	1	LINKAGE SA			XE
17	90635511	1	MODULE			XE
17	90616309-01	1	MODULE	Control		XE
18	90614124-02	13	SCREW			XE
19	90640981	1	MOTOR & PINION			XE
20	330019-15	4	SCREW			XE
21	90613424SV	1	GEARCASE SA			XE
22	90615764SV	1	GEAR CASE SA			XE
23	90624364	1	GUARD 13"			XE
24	90614124-06	7	SCREW			XE
25	90607066	1	SPINDLE LOCK			XE
26	90599025	1	SPOOL SA	DT20656		XE
27	90617532-01	1	HANDLE TUBE SA			XE
28	90615950	1	CLAMP			XE
30	90614124-04	6	SCREW			XE
31	90603784	1	HANDLE FRAME KIT			XE
32	90608998	1	CLAMP			XE
33	330016-15	4	WASHER			XE
34	90614038	4	SCREW			XE
35	90603783	1	Handle			XE
36	90615599	2	WASHER			XE
37	90623337	1	WASHER			XE
38	N891525	1	BATTERY 18V - 3.0AH - 54WH	DCB187-XE	DCM561L1S	XE
39	N406065	1	CHARGER SA		DCM561L1S	XE
800	585381-00	1	GREASE		0.6G	XE
800	N108694	1	GREASE	NYE Nyogel 760G 30ml		XE
