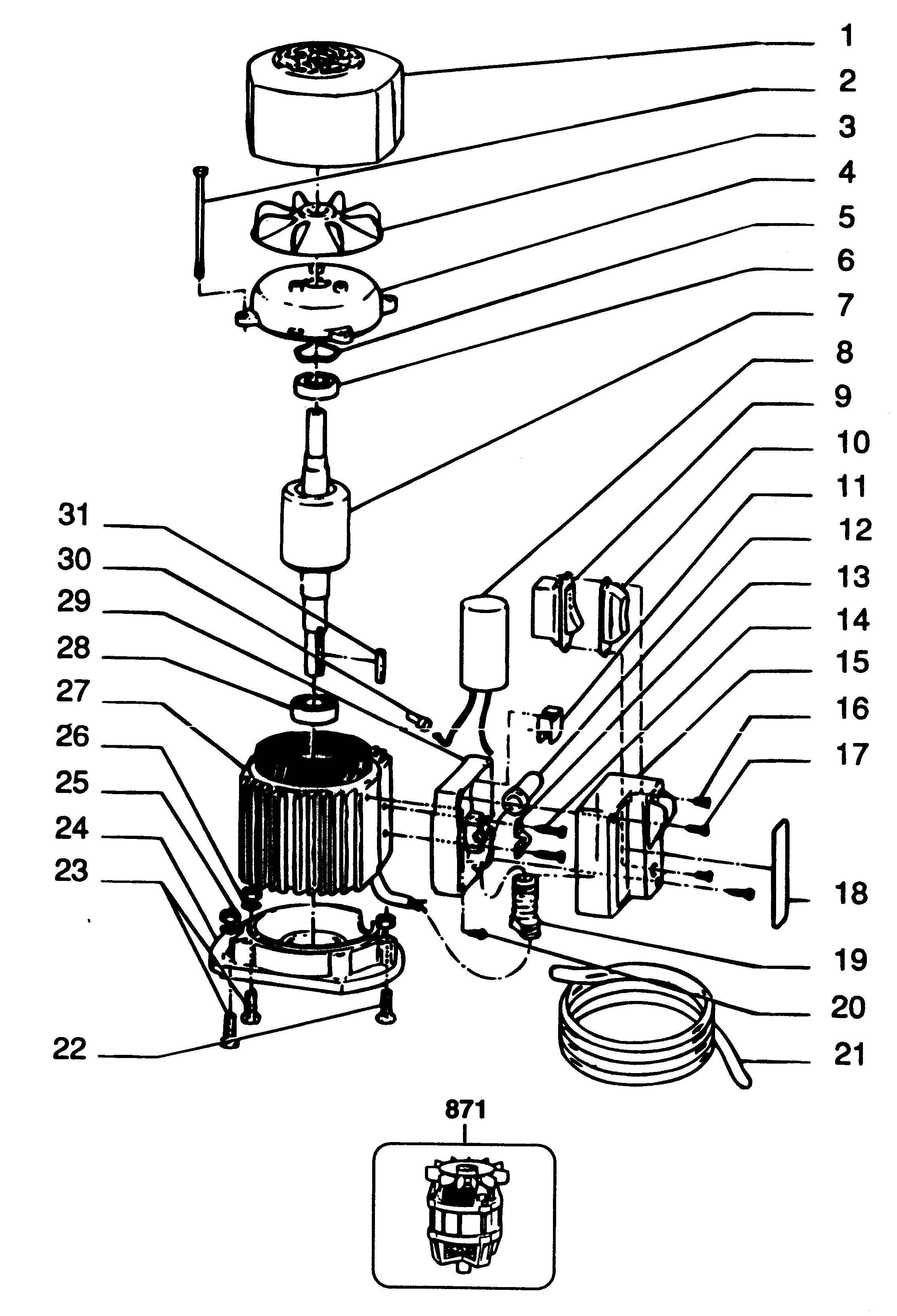

DW60------A DUST EXTRACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860445-00 | 1 | COVER | XJ | |||
| 2 | 863119-00 | 2 | TIE ROD | XJ | |||
| 3 | 860444-00 | 1 | FAN | XJ | |||
| 4 | 860443-00 | 1 | END CAP | XJ | |||
| 5 | 860080-02 | 1 | RING | XJ | |||
| 6 | 868768-07 | 1 | BEARING | XJ | |||
| 7 | 196999 | 1 | ROTOR 3 PH | 3 PHASE | XJ | ||
| 7 | 197252 | 1 | ROTOR 1 PH | 1 PHASE | XJ | ||
| 8 | 44755 | 1 | CAPACITOR | 1 PHASE | XJ | ||
| 9 | 949780-07 | 1 | SWITCH 3 PH | 3 PHASE | XJ | ||
| 9 | 860706-00 | 1 | SWITCH 1 PH | 1 PHASE | XJ | ||
| 10 | 862451-00 | 1 | CAP | XJ | |||
| 11 | 44617 | 1 | CONNECTOR | XJ | |||
| 13 | 11791 | 1 | STRAP | XJ | |||
| 14 | 330045-05 | 2 | SCREW | XJ | |||
| 15 | 31780 | 1 | COVER | XJ | |||
| 16 | 11271 | 2 | SCREW | XJ | |||
| 17 | 860084-13 | 1 | SCREW | XJ | |||
| 18 | 31888 | 1 | NAMEPLATE | 3 PHASE | XJ | ||
| 18 | 31888 | 1 | NAMEPLATE | 1 PHASE | XJ | ||
| 19 | 31873 | 1 | INLET | XJ | |||
| 20 | 949894-06 | 2 | SCREW | XJ | |||
| 21 | 945640-00 | 1 | CABLE | 1 PHASE | XJ | ||
| 21 | 860618-00 | 1 | CABLE | 3 PHASE | XJ | ||
| 22 | 11144 | 1 | SCREW | XJ | |||
| 23 | 860085-19 | 2 | SCREW | XJ | |||
| 24 | 76562 | 1 | CALOTTE FRONT | XJ | |||
| 25 | 860083-04 | 3 | NUT | XJ | |||
| 26 | 11408 | 3 | WASHER | XJ | |||
| 27 | 197189 | 1 | STATOR SA | 3 PHASE | XJ | ||
| 27 | 197188 | 1 | STATOR SA | 1 PHASE | XJ | ||
| 28 | 861721-12 | 1 | BEARING | XJ | |||
| 29 | 31762 | 1 | BOX | XJ | |||
| 30 | 44042 | 1 | CONNECTOR | XJ | |||
| 31 | 11631 | 1 | KEY | XJ | |||
| 871 | 197215 | 1 | MOTOR SA | 3 PHASE | XJ | ||
| 871 | 197214 | 1 | MOTOR SA | 1 PHASE | XJ |
