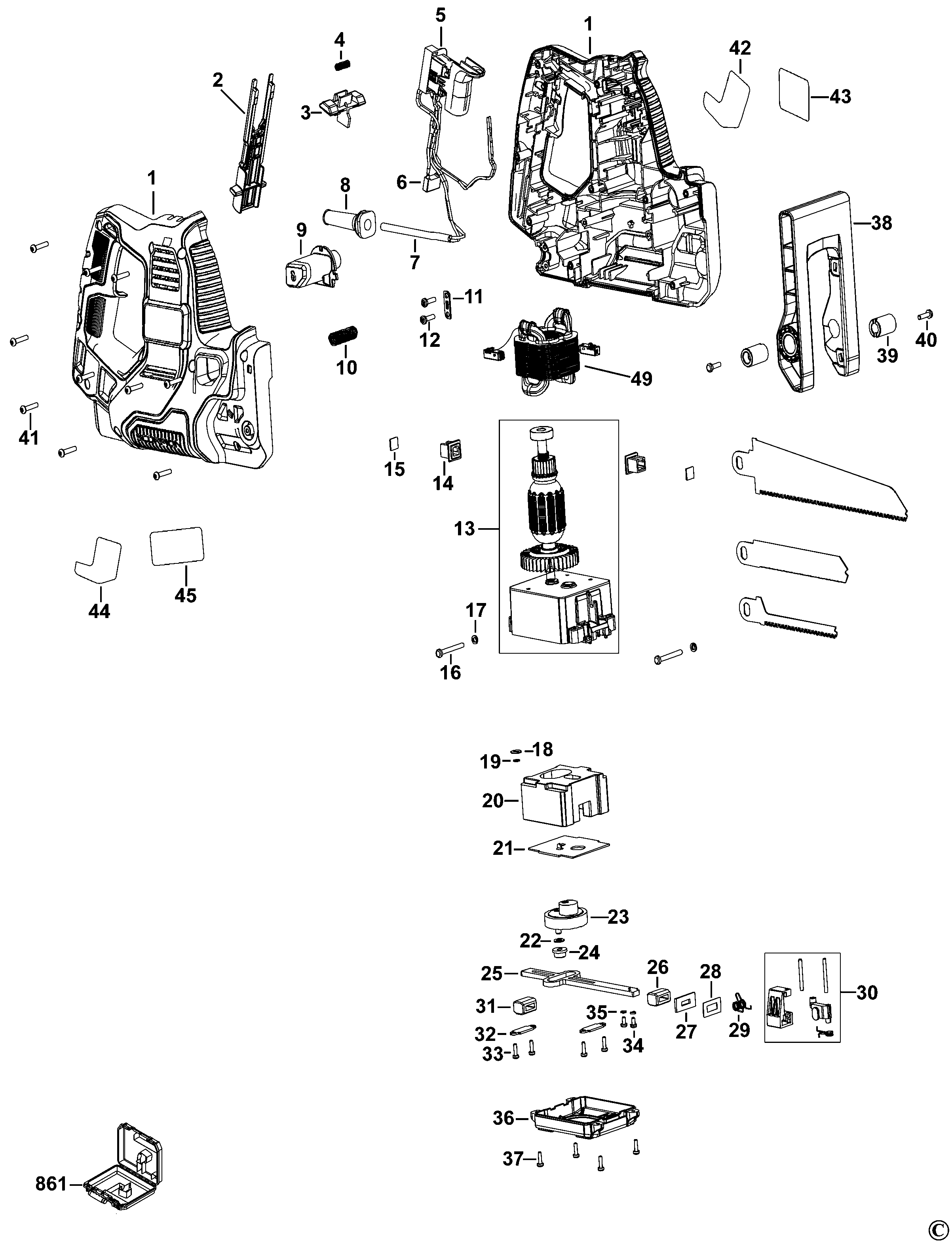

RS890 CUT SAW Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	90583808	1	CLAMSHELL SET			XE
2	90588213	1	ACTUATOR			XE
3	90584063N	1	SWITCH LOCK OFF			XE
4	90532974	1	SPRING			XE
5	90585223	1	SWITCH			XE
6	90551199	1	CAPACITOR			XE
8	770235	1	PROTECTOR			XE
9	90585699N	1	BUTTON RELEASE			XE
10	90581764	1	SPRING			XE
11	329301-00	1	CORD CLAMP			XE
12	821057	2	SCREW	No 6 x 12.7mm		XE
13	90597935	1	ARMATURE SA	230		XE
14	875735	2	INSERT			XE
15	90595464	2	INSERT			XE
16	330019-06	2	SCREW			XE
17	98197-03	2	WASHER			XE
18	588593-00	1	WASHER			XE
19	588592-00	1	LOCKING RING			XE
20	90584909	1	CONNTERWEIGHT			XE
21	90581138	1	PLATE THRUST			XE
22	823954	1	WASHER			XE
23	90597892	1	GEAR SA			XE
24	90595094	1	DRIVE ROLLER			XE
25	90585683	1	RECIPROCATOR			XE
26	90585693	1	BEARING			XE
27	90592973	1	FELT SEAL			XE
28	90590450	1	PLATE			XE
29	90585684	1	SPRING			XE
30	90597891	1	BLADE CLAMP			XE
31	90585693	1	BEARING			XE
32	90593281	2	PLATE			XE
33	330045-01	4	SCREW			XE
34	324007-02	2	SCREW	M3 X 06		XE
35	90572517	2	WASHER SPRING	M3		XE
36	90584908	1	GEARCASE COVER			XE
37	330045-01	4	SCREW			XE
38	90581135	1	SHOE			XE
39	90582696	1	POST			XE
40	330019-02	2	SCREW			XE
41	375669	10	SCREW			XE
42	90597134	1	LABEL	RH		XE
43	90589142	1	BRAND LABEL			XE
44	90597215	1	LABEL	LH		XE
49	90597890	1	FIELD SA	230V		XE
861	90590477NL	1	KITBOX		RS890K	XE
