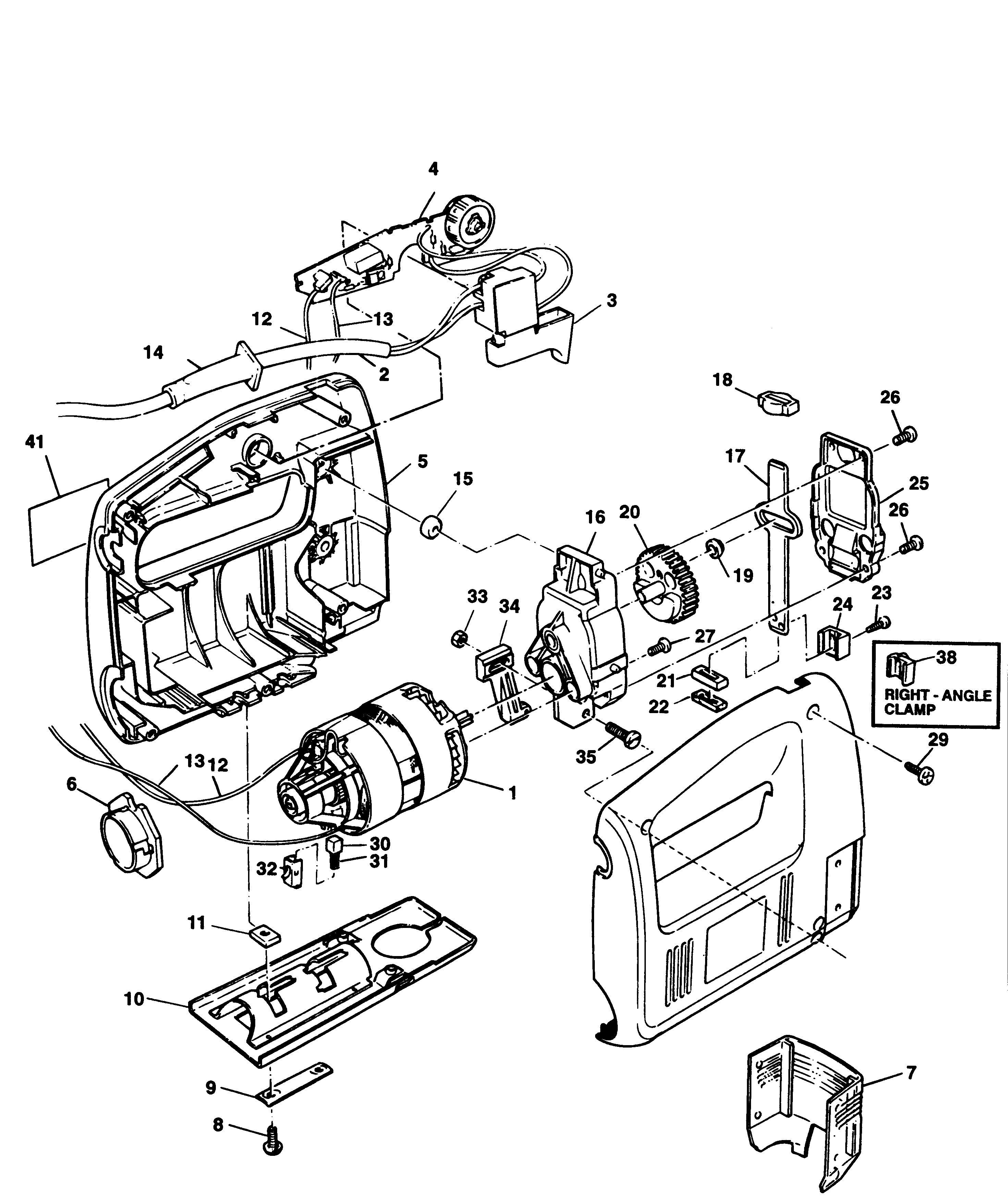

MST533E JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 576376-03 | 1 | MOTOR SA | XJ | |||
| 2 | 330048-27 | 1 | CORDSET | XJ | |||
| 3 | 374005 | 1 | SWITCH SA | XJ | |||
| 4 | 799843 | 1 | ELECTRONIC SA | XJ | |||
| 5 | 806719-06 | 1 | CLAMSHELL | XJ | |||
| 6 | 805156 | 1 | OUTLET | XJ | |||
| 7 | 826918 | 1 | GUARD | XJ | |||
| 8 | 376409 | 2 | SCREW | XJ | |||
| 9 | 805981-00 | 1 | SUPPORT | XJ | |||
| 10 | 823909 | 1 | SHOE SA | XJ | |||
| 11 | 845591 | 2 | NUT | XJ | |||
| 12 | 811666 | 1 | LEAD | XJ | |||
| 13 | 811667 | 1 | LEAD | XJ | |||
| 14 | 770235 | 1 | PROTECTOR | XJ | |||
| 15 | 847185 | 4 | SEAL | XJ | |||
| 16 | 828569 | 1 | GEARCASE SA | XJ | |||
| 17 | 810946 | 1 | SHAFT | XJ | |||
| 18 | 810897 | 1 | BEARING | XJ | |||
| 19 | 492994-00 | 1 | ROLLER | XJ | |||
| 20 | 847211 | 1 | GEAR | XJ | |||
| 21 | 810893 | 1 | BEARING | XJ | |||
| 22 | 847216 | 1 | SEAL | XJ | |||
| 23 | 797123 | 2 | SCREW | XJ | |||
| 24 | 847182 | 1 | CLAMP | XJ | |||
| 25 | 822297 | 1 | COVER | XJ | |||
| 26 | 891024 | 4 | SCREW | XJ | |||
| 27 | 812171 | 2 | SCREW | XJ | |||
| 29 | 809961 | 5 | SCREW | XJ | |||
| 30 | 372523 | 2 | BRUSH | XJ | |||
| 31 | 847709 | 2 | SPRING | XJ | |||
| 32 | 846076 | 2 | BRUSHBOX | XJ | |||
| 33 | 892153 | 1 | NUT | XJ | |||
| 34 | 793242 | 1 | SUPPORT SA | XJ | |||
| 35 | 813403 | 1 | SCREW | XJ | |||
| 36 | 858274 | 1 | FENCE | PARTS NOT DRAWN | XJ | ||
| 37 | 812331 | 1 | KNOB | PARTS NOT DRAWN | XJ | ||
| 38 | 821542 | 1 | CLAMP | XJ | |||
| 39 | A5642 | 1 | ADAPTOR | PARTS NOT DRAWN | XJ |
