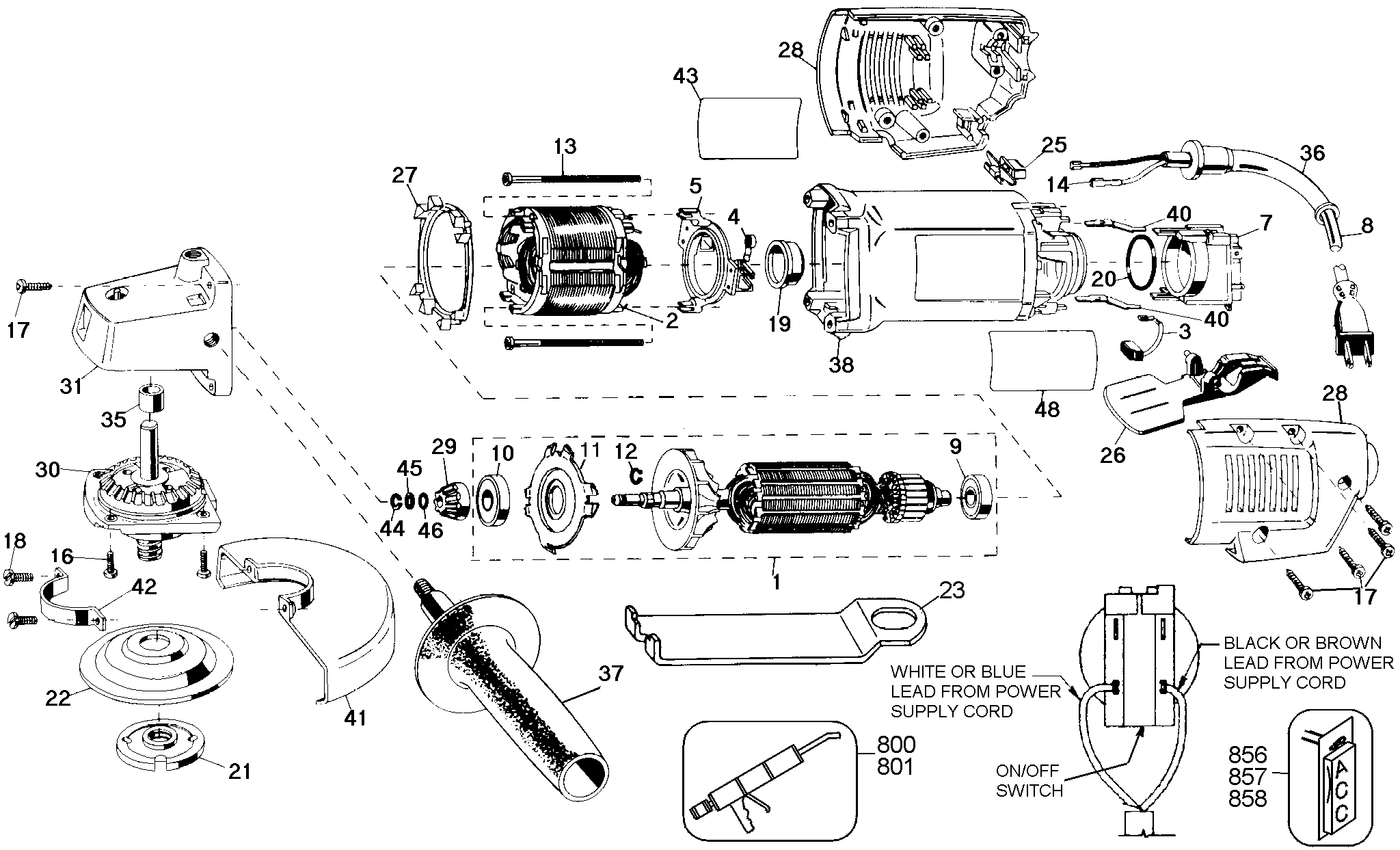

6930-45 ET1345C45 4-1/2 GRINDER Type 100 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 150320-05 | 1 | ARMATURE SA | INC 9-12 | XE | ||
| 2 | 150050-01 | 1 | FIELD | INC 13 | XE | ||
| 3 | 445861-30 | 2 | BRUSH 220V | XE | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | XE | |||
| 5 | 449899-05 | 1 | RING | XE | |||
| 7 | 147818-05 | 1 | SWITCH | XE | |||
| 8 | 444469-32 | 1 | CORD & PLUG | XE | |||
| 9 | 330003-04 | 1 | BEARING | XE | |||
| 10 | 605040-15 | 1 | BEARING,BALL | XE | |||
| 11 | 150057-00 | 1 | RETAINER | XE | |||
| 12 | 444793-00 | 1 | CIRCLIP | XE | |||
| 13 | 445880-00 | 2 | SCREW | XE | |||
| 14 | 464228-00 | 2 | TERMINAL | XE | |||
| 16 | 146929-00 | 4 | SCREW | XE | |||
| 17 | 330019-13 | 8 | SCREW | M4X19 T20 | XE | ||
| 18 | 99284-08 | 2 | SCREW | XE | |||
| 19 | 445217-02 | 1 | SLEEVE | XE | |||
| 20 | 700248-00 | 1 | SEAL | XE | |||
| 21 | 149480-00 | 1 | CLAMP OUTER | 5/8-11 THREAD | XE | ||
| 22 | 448156-01 | 1 | FLANGE | XE | |||
| 23 | 149645-00 | 1 | WRENCH | XE | |||
| 25 | 447847-00 | 1 | LOCK BUTTON | XE | |||
| 26 | 150428-00SV | 1 | PADDLE | XE | |||
| 27 | 445876-00 | 1 | BAFFLE | XE | |||
| 28 | 429882-59 | 1 | END CAP & COVER | XE | |||
| 29 | 152487-01 | 1 | PINION | 12 TEETH | XE | ||
| 30 | 5140001-91 | 1 | REPAIR KIT | W/ NUT & WRENCH | XE | ||
| 31 | 150323-00SV | 1 | GEARCASE COVER | XE | |||
| 35 | 036826-00 | 1 | SLEEVE BEARING | XE | |||
| 36 | 330005-01 | 1 | CORD PROTECTOR | XE | |||
| 37 | N239381 | 1 | SIDE HANDLE | XE | |||
| 38 | 445886-01 | 1 | CASE, FIELD | INC 40 | XE | ||
| 40 | 445882-00 | 2 | CONTACT | XE | |||
| 41 | 450733-01 | 1 | GUARD | NLS | XE | ||
| 42 | 146954-01 | 1 | CLAMP,GUARD | XE | |||
| 43 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 44 | 38751-00 | 1 | RING | XE | |||
| 45 | 449559-00 | 1 | WASHER | XE | |||
| 46 | 050050-00 | 1 | RING | XE | |||
| 48 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | XE | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | XE | ||
| 856 | 314842-19 | 1 | WHEEL,GRINDING | XE |
