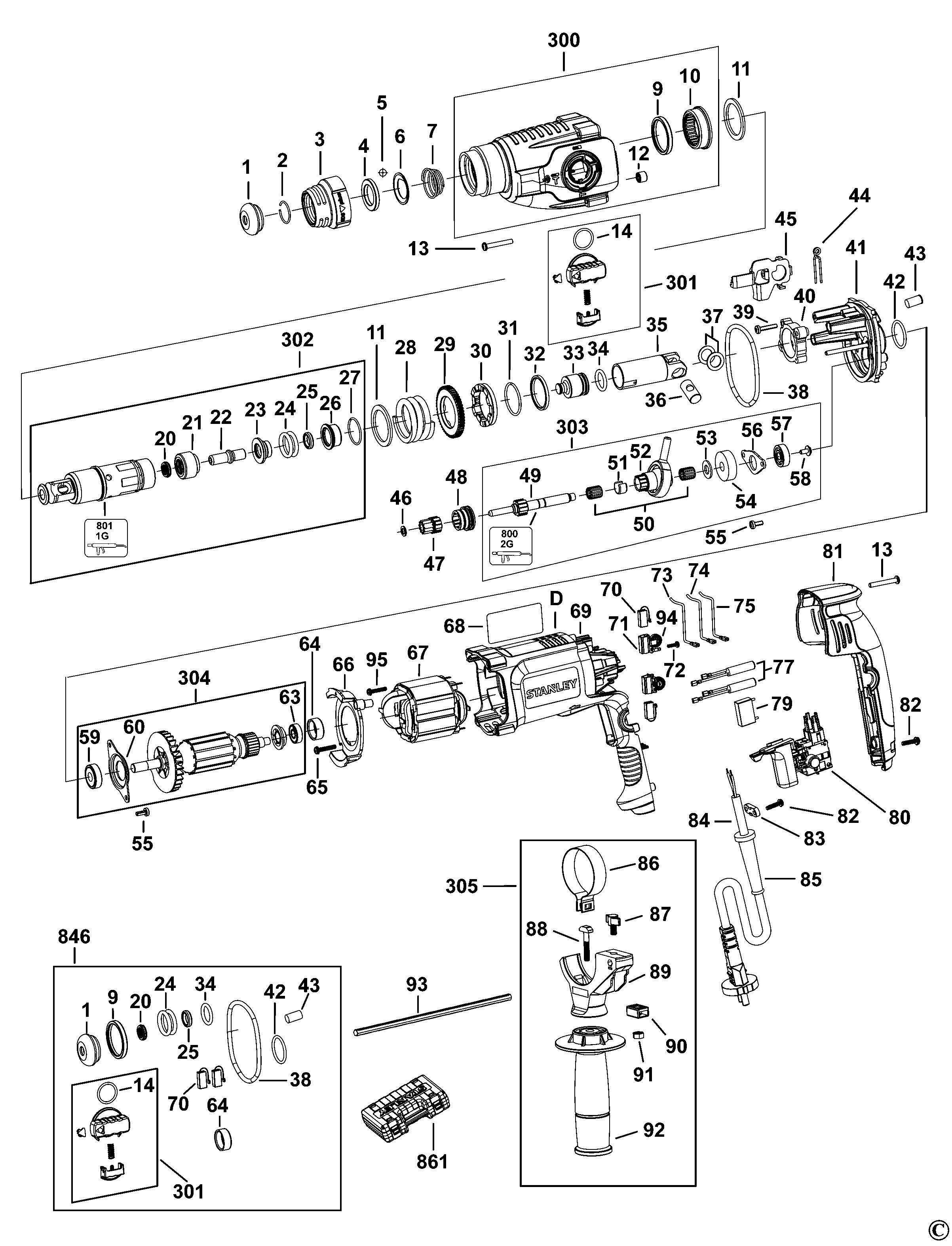

SFMEH200 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N767453 | 1 | RUBBER BOOT | XE | |||
| 2 | 4030104010 | 1 | CIRCLIP | XE | |||
| 3 | N465555 | 1 | TUBE | XE | |||
| 4 | 4030104020 | 1 | WASHER. CUP | XE | |||
| 5 | 4030304014 | 1 | BALL STEEL | XE | |||
| 6 | 4030104006 | 1 | RETAINER | XE | |||
| 7 | 4030108003 | 1 | SPRING COMPRESSION | XE | |||
| 9 | N767462 | 1 | SEAL | XE | |||
| 10 | 577813-00 | 1 | BEARING NEEDLE | XE | |||
| 11 | N465552 | 2 | WASHER | XE | |||
| 12 | N465533 | 1 | BEARING | XE | |||
| 13 | N468888 | 5 | SCREW | XE | |||
| 14 | N767452 | 1 | O RING | XE | |||
| 20 | N776745 | 1 | RING | XE | |||
| 21 | N465543 | 1 | BEARING | XE | |||
| 22 | N465541 | 1 | BEAT PIECE | XE | |||
| 23 | N465545 | 1 | DAMPER | XE | |||
| 24 | N767461 | 2 | O RING | XE | |||
| 25 | N767460 | 1 | RING | CATCH | XE | ||
| 26 | N465546 | 1 | RAM | XE | |||
| 27 | N465548 | 1 | RING | XE | |||
| 28 | N465551 | 1 | SPRING | XE | |||
| 29 | N465550 | 1 | GEAR | XE | |||
| 29 | N531538 | 1 | GEAR | XE | |||
| 30 | N531539 | 1 | RING | XE | |||
| 30 | N465549 | 1 | RING | XE | |||
| 31 | N465553 | 1 | RING | XE | |||
| 32 | N465554 | 1 | RING | XE | |||
| 33 | N465560 | 1 | RAM | XE | |||
| 34 | N465561 | 1 | O RING | XE | |||
| 35 | N465559 | 1 | PISTON | XE | |||
| 36 | N465562 | 1 | BEARING SPINDLE | XE | |||
| 37 | N465563 | 2 | WASHER | XE | |||
| 38 | N767463 | 1 | O RING | XE | |||
| 39 | N465538 | 3 | SCREW | XE | |||
| 40 | N465537 | 1 | BEARING | XE | |||
| 41 | N465534 | 1 | HOUSING BEARING | XE | |||
| 42 | N767445 | 1 | O RING | XE | |||
| 43 | N465536 | 1 | FELT | XE | |||
| 44 | N465523 | 1 | SPRING | XE | |||
| 45 | N465521 | 1 | PLATE | XE | |||
| 46 | N465566 | 1 | WASHER | XE | |||
| 47 | N465567 | 1 | GEAR | XE | |||
| 48 | N465568 | 1 | COLLAR | XE | |||
| 49 | N465565 | 1 | INTER SHAFT | XE | |||
| 50 | 577818-00 | 2 | BEARING CAGE | XE | |||
| 51 | N465570 | 1 | SPACER | XE | |||
| 52 | N465569 | 1 | BEARING | XE | |||
| 53 | N465574 | 1 | WASHER | XE | |||
| 54 | N465573 | 1 | GEAR | XE | |||
| 55 | N468881 | 4 | SCREW | XE | |||
| 56 | N465576 | 1 | BEARING PLATE | XE | |||
| 57 | 49106007 | 1 | BEARING | XE | |||
| 58 | N468882 | 1 | SCREW | XE | |||
| 59 | 49111014 | 1 | BEARING | XE | |||
| 60 | N465516 | 1 | BEARING PLATE | XE | |||
| 63 | 49111011 | 1 | BEARING | XE | |||
| 64 | N767444 | 1 | SLEEVE BEARING | XE | |||
| 65 | N496704 | 2 | SCREW | XE | |||
| 66 | N465511 | 1 | GUIDE | XE | |||
| 67 | N531440 | 1 | FIELD SA | XE | |||
| 68 | N842274 | 1 | RATING PLATE | XE | |||
| 69 | N592101 | 1 | HOUSING MOTOR | XE | |||
| 70 | N465518 | 1 | BRUSH PAIR 230V | XE | |||
| 71 | N465517 | 1 | BRUSH HOLDER | XE | |||
| 72 | 49206001 | 4 | SCREW | XE | |||
| 73 | N469365 | 1 | WIRE | XE | |||
| 74 | 4030101006 | 1 | LEADWIRE | XE | |||
| 75 | 4030101614 | 2 | LEADWIRE | XE | |||
| 77 | 4020404607 | 2 | INDUCTOR | XE | |||
| 79 | N510278 | 1 | CAPACITOR | XE | |||
| 80 | N468884 | 1 | SWITCH | XE | |||
| 81 | N592114 | 1 | HANDLE COVER | XE | |||
| 82 | N468889 | 4 | SCREW | XE | |||
| 83 | 4100301008 | 1 | CORD CLAMP | XE | |||
| 84 | N900656 | 1 | CORDSET | XE | |||
| 85 | N767140 | 1 | CORD PROTECTOR | XE | |||
| 86 | 4030204012 | 1 | COLLAR | XE | |||
| 87 | 4030101008 | 1 | SCREW | XE | |||
| 88 | 4030104001 | 1 | SCREW | XE | |||
| 89 | 4030101026 | 1 | PAD | XE | |||
| 90 | 4030101022 | 1 | NUT | XE | |||
| 91 | 49205013 | 1 | NUT | XE | |||
| 92 | 4030301001 | 1 | Handle | XE | |||
| 93 | 4030101019 | 1 | DEPTH ROD | XE | |||
| 94 | 4030108002 | 1 | SPRING BRUSH | XE | |||
| 95 | N468887 | 2 | SCREW | XE | |||
| 96 | 4030303010 | 1 | DUST GUARD | XE | |||
| 300 | N776385 | 1 | GEARCASE SA | XE | |||
| 301 | N776386 | 1 | BUTTON SA | XE | |||
| 302 | N776387 | 1 | SPINDLE SA | XE | |||
| 303 | N465564 | 1 | INTER SHAFT SA | XE | |||
| 304 | N776388 | 1 | ARMATURE 220V | XE | |||
| 305 | 4030131003 | 1 | SIDE HANDLE | XE | |||
| 305 | N479434 | 1 | HANDLE SIDE SA | XE | |||
| 800 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | 2G | XE | |
| 801 | N505291 | 1 | GREASE | 1G | XE | ||
| 846 | N778825 | 1 | SERVICE KIT | XE | |||
| 861 | N722628 | 1 | KITBOX | SFMEH200K | XE |
