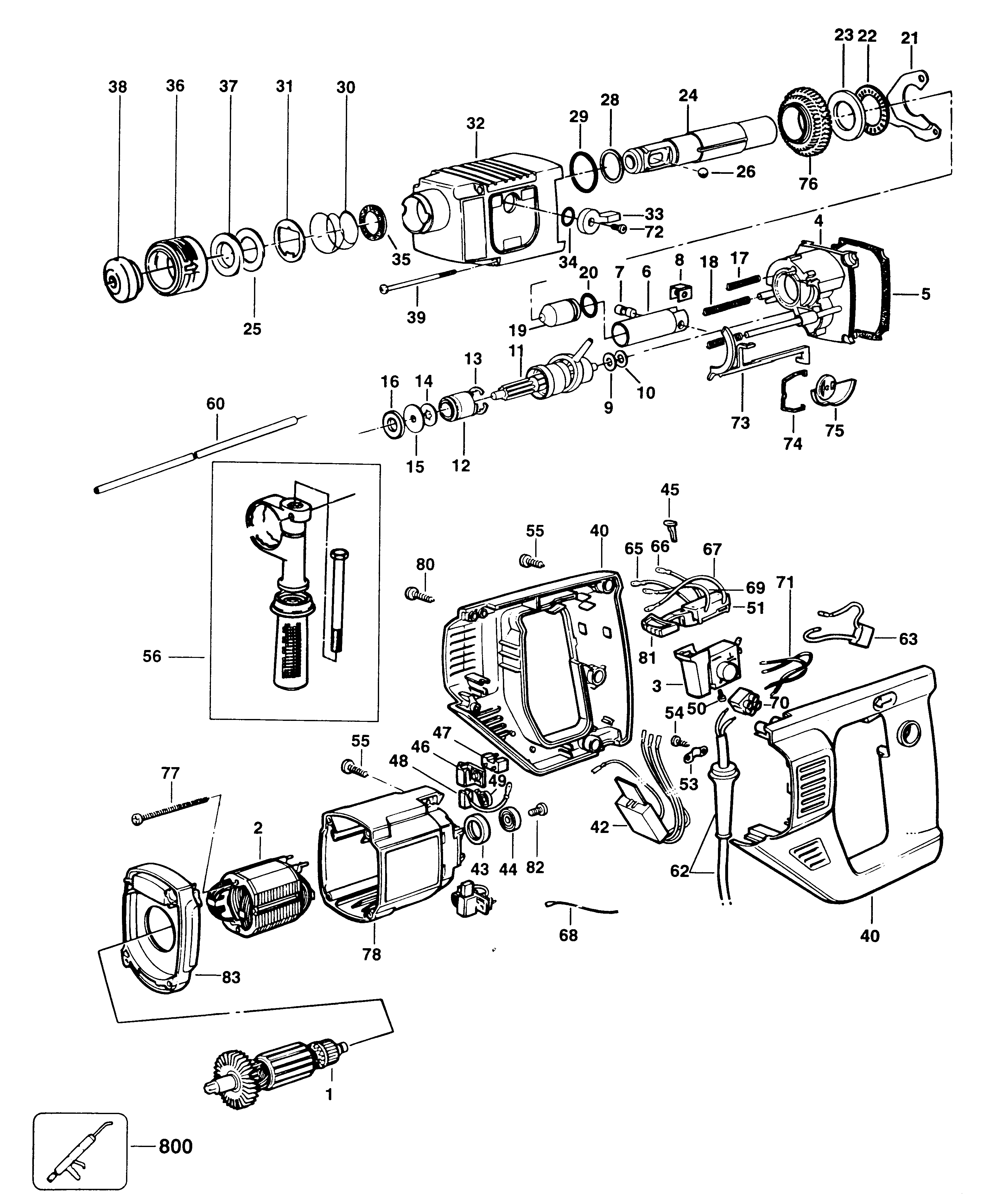

MBH26L ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 377762-05 | 1 | ARMATURE 240V | 240v | XJ | ||
| 1 | 377762-07 | 1 | ARMATURE 115V | 115v | XJ | ||
| 2 | 373874-09 | 1 | FIELD 115V | 115v | XJ | ||
| 2 | 373874-08 | 1 | FIELD 230V | 240v | XJ | ||
| 3 | 324556-49 | 1 | SWITCH | XJ | |||
| 4 | 324032-01 | 1 | HOUSING | XJ | |||
| 5 | 323572-00 | 1 | SEAL | XJ | |||
| 6 | 323926-00 | 1 | PISTON | XJ | |||
| 7 | 323569-00 | 1 | AXLE | XJ | |||
| 8 | 324487-00 | 1 | SPRING | XJ | |||
| 9 | 324430-03 | 1 | BEARING AXIAL | XJ | |||
| 10 | 324431-03 | 1 | WASHER 7 | XJ | |||
| 11 | 324155-00 | 1 | GEAR | XJ | |||
| 12 | 325232-01 | 1 | SLEEVE | XJ | |||
| 13 | 323487-00 | 1 | RING | XJ | |||
| 14 | 325294-00 | 1 | WASHER SPRING | XJ | |||
| 15 | 324431-00 | 1 | WASHER 6 | XJ | |||
| 16 | 324430-00 | 1 | BEARING NEEDLE | XJ | |||
| 17 | 323395-00 | 2 | SPRING | XJ | |||
| 18 | 323395-02 | 1 | SPRING | XJ | |||
| 19 | 325175-00 | 1 | RAM | XJ | |||
| 20 | 323711-25 | 1 | O RING | XJ | |||
| 21 | 323488-01 | 1 | PLATE | XJ | |||
| 22 | 324430-01 | 1 | BEARING,NEEDLE | XJ | |||
| 23 | 323999-00 | 1 | WASHER | XJ | |||
| 24 | 324031-00 | 1 | SPINDLE | XJ | |||
| 25 | 323492-00 | 1 | WASHER | XJ | |||
| 26 | 583890-00 | 1 | BALL | XJ | |||
| 28 | 323753-01 | 1 | WASHER | XJ | |||
| 29 | 323711-04 | 1 | SEAL | XJ | |||
| 30 | 871690 | 1 | SPRING | XJ | |||
| 31 | 578387-00 | 1 | WASHER | XJ | |||
| 32 | 324033-10 | 1 | GEARCASE | XJ | |||
| 33 | 323882-00 | 1 | LEVER | XJ | |||
| 34 | 323711-07 | 1 | O RING | XJ | |||
| 35 | 324432-00 | 1 | SEAL SA | XJ | |||
| 36 | 576756-00 | 1 | COLLAR | XJ | |||
| 37 | 323480-00 | 1 | SPACER | XJ | |||
| 38 | 323489-00 | 1 | CAP | XJ | |||
| 39 | 324044-01 | 4 | SCREW.TEMP | XJ | |||
| 40 | 324189-02 | 1 | HANDLE SA | XJ | |||
| 42 | 324552-04 | 1 | ELECTRONIC 115V | 115v | XJ | ||
| 42 | 324552-00 | 1 | ELECTRONIC 230V | 240v | XJ | ||
| 43 | 870052 | 1 | SLEEVE | XJ | |||
| 44 | 330003-19 | 1 | BEARING | XJ | |||
| 45 | 324165-03 | 1 | INSERT | XJ | |||
| 46 | 323496-01 | 2 | BRUSH HOLDER | XJ | |||
| 47 | 491366-00 | 2 | BRUSH KIT | XJ | |||
| 48 | 323660-02 | 2 | BRUSH | 115v | XJ | ||
| 48 | 323660-01 | 2 | BRUSH 230V | 240v | XJ | ||
| 49 | 872843 | 2 | SPRING | XJ | |||
| 50 | 911026 | 3 | SCREW | XJ | |||
| 51 | 324400-00 | 1 | SWITCH REVERSE | XJ | |||
| 53 | 821070 | 1 | CORD CLAMP | XJ | |||
| 54 | 323924-08 | 2 | SCREW | XJ | |||
| 55 | 323924-02 | 3 | SCREW | XJ | |||
| 56 | 939794-02 | 1 | HANDLE SIDE SA | XJ | |||
| 60 | 580787-00 | 1 | DEPTH STOP | XJ | |||
| 62 | 324438-73 | 1 | CORDSET | 240v | XJ | ||
| 62 | 330061-03 | 1 | CORDSET | 115v | XJ | ||
| 63 | 320842-03 | 1 | CAPACITOR | XJ | |||
| 65 | 877358 | 1 | LEAD 220MM | XJ | |||
| 66 | 877357 | 1 | LEAD 160MM BLACK | XJ | |||
| 67 | 877357 | 1 | LEAD 160MM BLACK | XJ | |||
| 68 | 878846 | 1 | LEAD 360MM | XJ | |||
| 69 | 323768-02 | 1 | LEAD 120MM BLACK | XJ | |||
| 70 | 323534-00 | 1 | CONNECTOR | XJ | |||
| 71 | 323635-10 | 2 | LEAD 70MM | XJ | |||
| 72 | 324007-10 | 1 | SCREW | XJ | |||
| 73 | 323795-01 | 1 | LEVER | XJ | |||
| 74 | 323797-00 | 1 | CLIP | XJ | |||
| 75 | 323956-01 | 1 | LEVER | XJ | |||
| 76 | 324108-01 | 1 | GEAR | XJ | |||
| 77 | 911250 | 2 | SCREW.TEMP | XJ | |||
| 78 | 324188-05 | 1 | FIELDCASE | XJ | |||
| 80 | 323924-11 | 3 | SCREW.TEMP | XJ | |||
| 81 | 323490-08 | 1 | LEVER | XJ | |||
| 82 | 329794-00 | 1 | SCREW | XJ | |||
| 83 | 324196-02 | 1 | BAFFLE | XJ | |||
| 800 | 870889-02 | 1 | GREASE | XJ |
