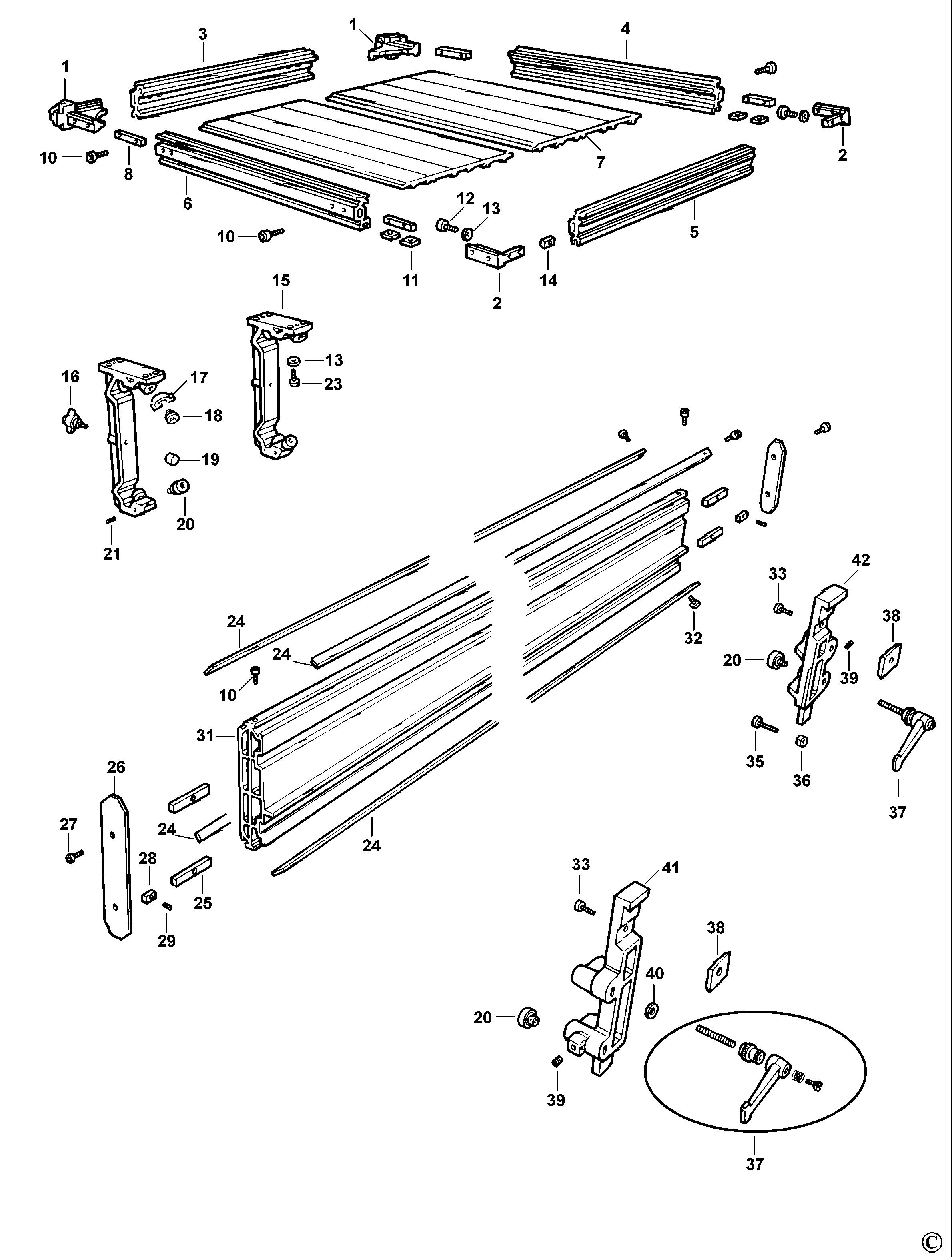

EZ41202 SLIDING TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 279356-00 | 2 | JOINT | XJ | |||
| 2 | 279412-00 | 2 | JOINT | XJ | |||
| 3 | 279431-00 | 1 | SIDE EXTRUSION | XJ | |||
| 4 | 567554-00 | 1 | RAIL | XJ | |||
| 5 | 279417-00 | 1 | RAIL | XJ | |||
| 6 | 567555-00 | 1 | RAIL | XJ | |||
| 7 | 567556-00 | 2 | INSERT | XJ | |||
| 8 | 567557-00 | 6 | BLOCK | XJ | |||
| 10 | 279367-00 | 12 | SCREW.SPECIAL | XJ | |||
| 11 | 567559-00 | 6 | NUT | XJ | |||
| 12 | 932617 | 2 | SCREW | XJ | |||
| 13 | 720959-00 | 10 | WASHER | XJ | |||
| 14 | 279418-00 | 2 | NUT | XJ | |||
| 15 | 567560-00 | 2 | FRAME | XJ | |||
| 16 | 567561-00 | 1 | SCREW WING | XJ | |||
| 17 | 279629-00 | 8 | COVER BEARING | XJ | |||
| 18 | 567562-00 | 4 | BEARING SA | XJ | |||
| 19 | 567563-00 | 1 | CAP | XJ | |||
| 20 | 567564-00 | 6 | BEARING SA | XJ | |||
| 21 | 567565-00 | 8 | GRUB SCREW | XJ | |||
| 23 | 860085-09 | 6 | SCREW.TEMP | XJ | |||
| 24 | 567567-00 | 4 | STRIP | XJ | |||
| 25 | 567568-00 | 4 | NUT | XJ | |||
| 26 | 567569-00 | 2 | COVER | XJ | |||
| 27 | 567744-00 | 4 | BOLT | XJ | |||
| 28 | 567570-00 | 2 | NUT | XJ | |||
| 29 | 567571-00 | 2 | GRUB SCREW | XJ | |||
| 31 | 567572-00 | 1 | SUPPORT | XJ | |||
| 32 | 567573-00 | 2 | SCREW | XJ | |||
| 33 | 567574-00 | 2 | SCREW | XJ | |||
| 35 | 567575-00 | 2 | SCREW | XJ | |||
| 36 | 567576-00 | 4 | NUT | XJ | |||
| 37 | 567577-00 | 4 | LOCKING DEVICE | XJ | |||
| 38 | 279426-00 | 2 | NUT | XJ | |||
| 39 | 567578-00 | 2 | GRUB SCREW | XJ | |||
| 40 | 567579-00 | 4 | WASHER | XJ | |||
| 41 | 567580-00 | 1 | BRACKET LH | XJ | |||
| 42 | 567581-00 | 1 | BRACKET RH | XJ | |||
| 43 | 279333-00 | 1 | NUT | XJ | |||
| 44 | 567805-00 | 1 | STOP | XJ | |||
| 45 | 935328 | 1 | PAD | XJ | |||
| 101 | 567582-00 | 1 | LOCK SA | XJ | |||
| 102 | 567583-00 | 2 | LOCKING DEVICE | XJ | |||
| 103 | 567584-00 | 1 | LOCKING DEVICE | XJ | |||
| 104 | 567585-00 | 1 | COLUMN | XJ | |||
| 105 | 567586-00 | 3 | SCREW | XJ | |||
| 106 | 567804-00 | 1 | SCALE | XJ | |||
| 107 | 568081-00 | 1 | PROFILE | XJ | |||
| 109 | 567587-00 | 1 | PLATE | XJ | |||
| 110 | 567588-00 | 2 | SCREW | XJ | |||
| 111 | 567589-00 | 2 | SCREW WING | XJ | |||
| 112 | 567590-00 | 2 | WASHER | XJ | |||
| 113 | 567591-00 | 1 | STUD | XJ | |||
| 114 | 567592-00 | 4 | NUT | XJ | |||
| 115 | 567593-00 | 1 | PROTRACTOR | XJ | |||
| 116 | 567594-00 | 2 | NUT | XJ | |||
| 117 | 567595-00 | 1 | MOUNT | XJ | |||
| 118 | 567596-00 | 1 | SCALE | XJ | |||
| 119 | 567597-00 | 1 | STUD | XJ | |||
| 121 | 567598-00 | 1 | NUT WING | XJ | |||
| 122 | 567599-00 | 2 | SCREW | XJ | |||
| 123 | 567600-00 | 1 | CAP | XJ | |||
| 124 | 567601-00 | 1 | SPRING | XJ | |||
| 125 | 567602-00 | 1 | HOLDER | XJ | |||
| 126 | 567603-00 | 1 | STOP | XJ | |||
| 127 | 567558-00 | 4 | LOCKING DEVICE | XJ | |||
| 128 | 567604-00 | 2 | PLATE | XJ | |||
| 129 | 567605-00 | 2 | STOP | XJ | |||
| 130 | 567606-00 | 2 | SCREW | XJ | |||
| 132 | 567607-00 | 1 | SCALE | XJ | |||
| 133 | 567608-00 | 1 | STOP | XJ | |||
| 135 | 567610-00 | 1 | PLATE | XJ | |||
| 136 | 567611-00 | 2 | SCREW | XJ | |||
| 137 | 567612-00 | 1 | PLATE | XJ | |||
| 138 | 568070-00 | 1 | EXTENSION | XJ | |||
| 139 | 567806-00 | 1 | NUT | XJ | |||
| 846 | 568080-00 | 1 | KIT SA | XJ |
