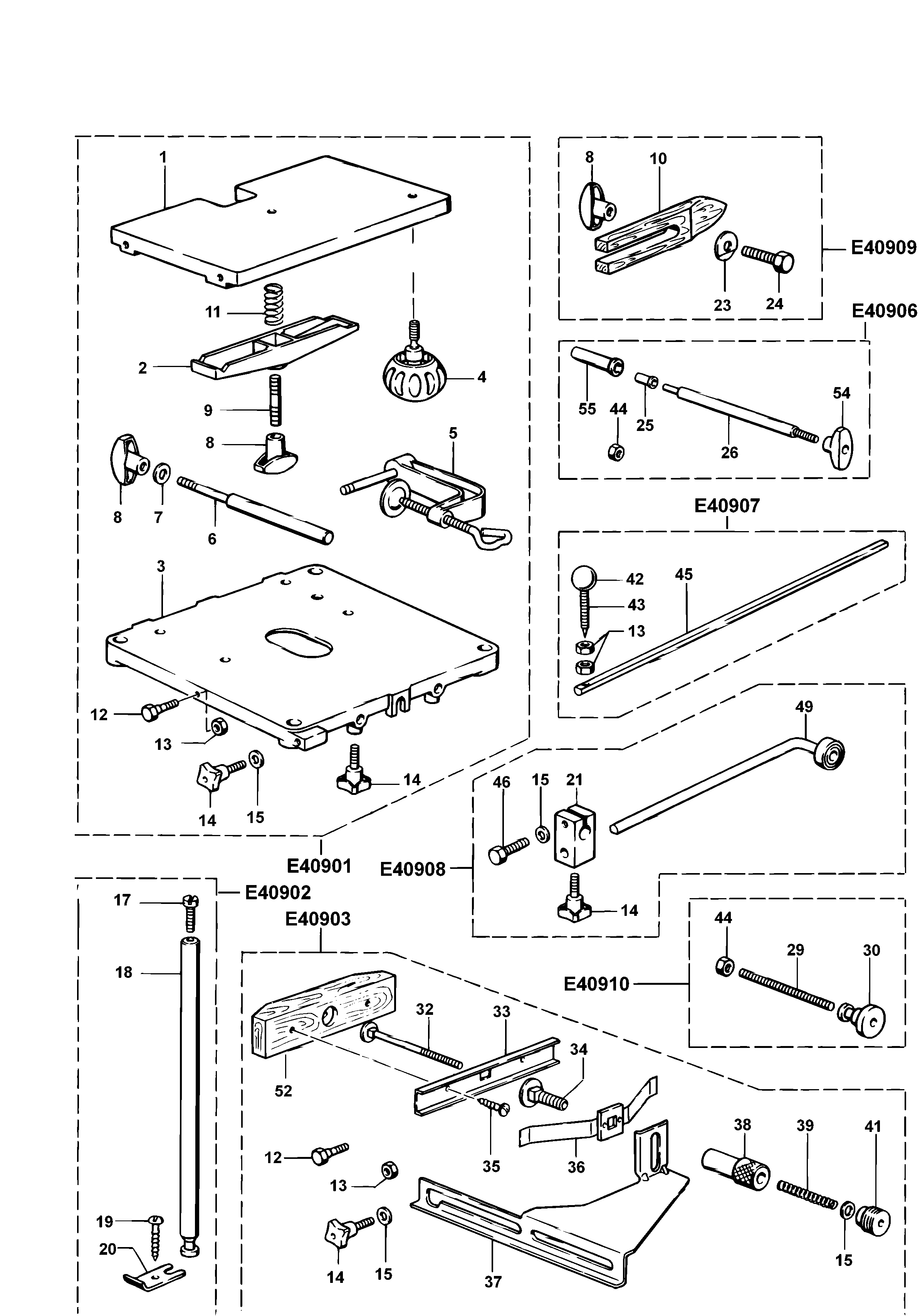

E40901 TABLE KIT Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 096230200 | 1 | PLATE | E40901 | XJ | ||
| 2 | 096236400 | 1 | BRIDGE | E40901 | XJ | ||
| 3 | 096235100 | 1 | TABLE TOP | E40901 | XJ | ||
| 4 | 869284-05 | 1 | HANDLE SA | E40901 | XJ | ||
| 5 | 248943-00 | 2 | CLAMP | E40901 | XJ | ||
| 6 | 096230400 | 2 | SPINDLE | E40901 | XJ | ||
| 7 | 249223-00 | 2 | WASHER M8 | E40901 | XJ | ||
| 8 | 941756-00 | 3 | KNOB | E40901 | XJ | ||
| 8 | 941756-00 | 1 | KNOB | E40909 | XJ | ||
| 9 | 011812900 | 1 | STUD | E40901 | XJ | ||
| 10 | 096216902 | 1 | GUARD | E40909 | XJ | ||
| 11 | 021931026 | 1 | SPRING | E40901 | XJ | ||
| 12 | 096912717 | 1 | SCREW | E40901 | XJ | ||
| 12 | 096912717 | 1 | SCREW | E40903 | XJ | ||
| 13 | 249232-10 | 1 | NUT M5 | E40901 | XJ | ||
| 13 | 249232-10 | 1 | NUT M5 | E40903 | XJ | ||
| 14 | 025922908 | 4 | KNOB | E40901 | XJ | ||
| 14 | 025922908 | 4 | KNOB | E40903 | XJ | ||
| 14 | 025922908 | 1 | KNOB | E40908 | XJ | ||
| 15 | 249221-00 | 1 | WASHER | E40901 | XJ | ||
| 15 | 249221-00 | 2 | WASHER | E40903 | XJ | ||
| 15 | 249221-00 | 1 | WASHER | E40908 | XJ | ||
| 17 | 249424-31 | 4 | SCREW | E40902 | XJ | ||
| 18 | 096235600 | 4 | TABLE LEG | E40902 | XJ | ||
| 19 | 249402-00 | 4 | SCREW WOODSCREW | E40902 | XJ | ||
| 20 | 249093-00 | 4 | PLATE | E40902 | XJ | ||
| 21 | 096231500 | 1 | BUSH | E40908 | XJ | ||
| 23 | 249092-10 | 1 | WASHER 8.4 DIN | E40909 | XJ | ||
| 24 | 249094-00 | 1 | SCREW | E40909 | XJ | ||
| 25 | 096231501 | 1 | BUSH | E40906 | XJ | ||
| 26 | 096238701 | 1 | SPINDLE | E40906 | XJ | ||
| 29 | 096238700 | 1 | STUD | E40910 | XJ | ||
| 30 | 096920111 | 1 | NUT | E40910 | XJ | ||
| 32 | 249439-00 | 1 | BOLT | E40903 | XJ | ||
| 33 | 249080-00 | 1 | RAIL | E40903 | XJ | ||
| 34 | 249406-20 | 1 | SCREW | E40903 | XJ | ||
| 35 | 249437-00 | 2 | SCREW | E40903 | XJ | ||
| 36 | 096931225 | 1 | SPRING | E40903 | XJ | ||
| 37 | 249097-00 | 1 | SUPPORT | E40903 | XJ | ||
| 38 | 096213500 | 1 | NUT | E40903 | XJ | ||
| 39 | 096934011 | 1 | SPRING | E40903 | XJ | ||
| 41 | 096213501 | 1 | NUT | E40903 | XJ | ||
| 43 | 096910636 | 1 | SCREW | E40907 | XJ | ||
| 44 | 249232-10 | 2 | NUT M5 | E40907 | XJ | ||
| 44 | 249411-00 | 1 | NUT M6 | E40906 | XJ | ||
| 44 | 249411-00 | 1 | NUT M6 | E40910 | XJ | ||
| 45 | 096231201 | 1 | TRAMMEL ROD | E40907 | XJ | ||
| 46 | 249409-01 | 1 | SCREW | E40908 | XJ | ||
| 49 | 096231202 | 1 | ROD SA | E40908 | XJ | ||
| 52 | 096216900 | 1 | FENCE | E40903 | XJ | ||
| 54 | 071921305 | 1 | KNOB | E40906 | XJ | ||
| 55 | 329013-00 | 1 | SLEEVE | E40906 | XJ |
