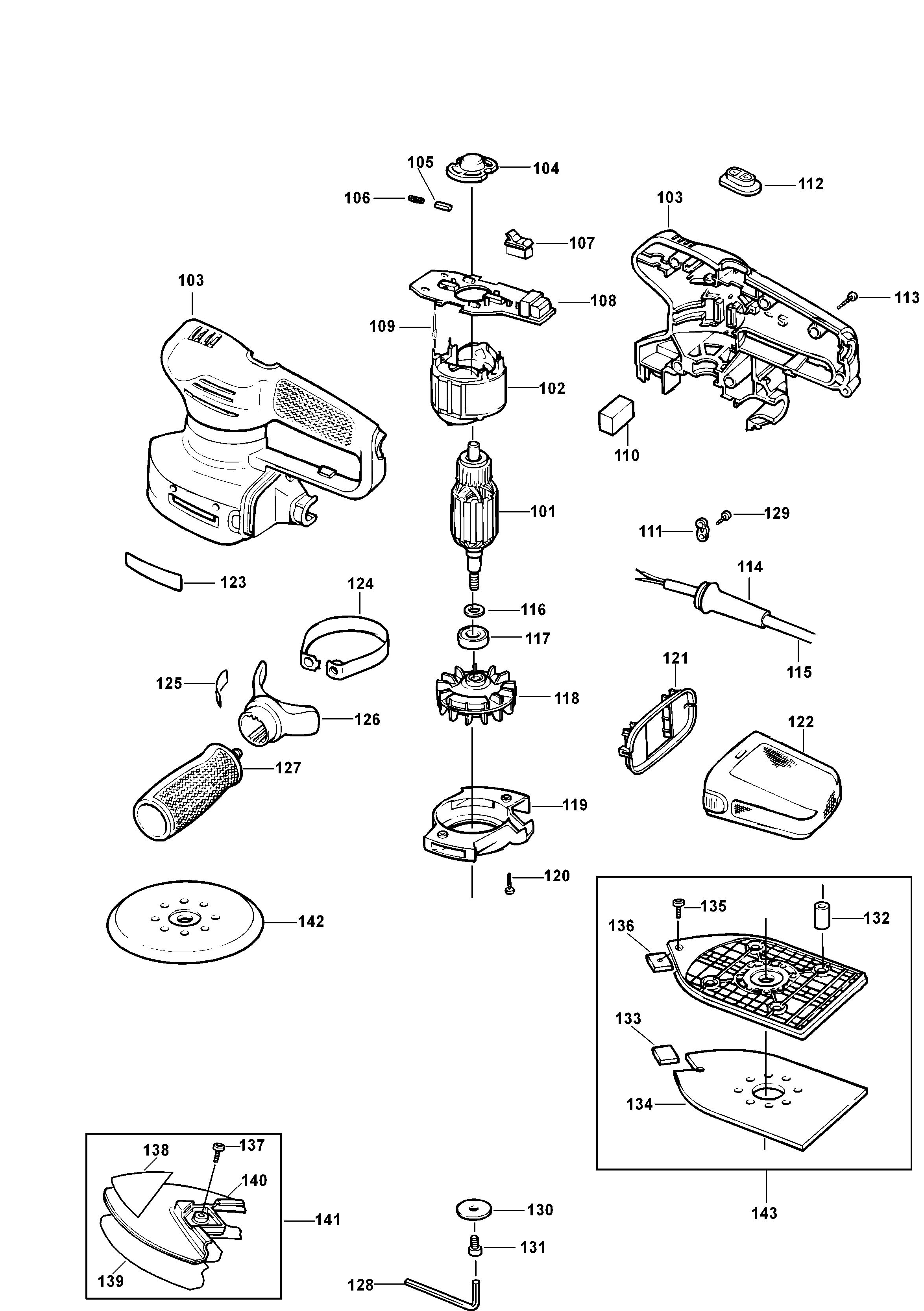

KA210LD SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 628804-00 | 1 | SCREW | XE | |||
| 3 | 176901-03 | 1 | HANDLE COVER | XE | |||
| 4 | 082481-00 | 1 | WASHER | XE | |||
| 5 | 429598-00 | 1 | CHUCK & KEY | XE | |||
| 7 | 382180-01 | 4 | GEARCASE COVER SA | XE | |||
| 8 | 393759-00 | 1 | PLATE | XE | |||
| 9 | 330065-08 | 1 | SCREW | M4x18 T20 | XE | ||
| 10 | 605040-72 | 1 | BEARING | XE | |||
| 11 | 007027-00 | 1 | KEY | XE | |||
| 13 | 51402-00 | 1 | PINION | XE | |||
| 15 | 616831-00 | 1 | ANVIL ASSY. | XE | |||
| 16 | 146636-00 | 1 | NUT, FIELD | XE | |||
| 17 | 626393-00 | 1 | TABLE | XE | |||
| 18 | A23284 | 1 | CORDSET | Incl. Capacitor | XE | ||
| 19 | 581240-00 | 1 | BAFFLE FAN | XE | |||
| 20 | 616857-00 | 2 | BRUSH HOLDER | XE | |||
| 21 | 050056-00 | 2 | O RING | XE | |||
| 22 | 005762-00 | 1 | SCREW | XE | |||
| 24 | 582831-00 | 1 | BAFFLE | XE | |||
| 25 | 489669-00 | 1 | VACUUM ADAPTOR | XE | |||
| 26 | N011328 | 4 | LOCKING DEVICE | XE | |||
| 27 | N411027 | 8 | LEAD ASSY. | WHITE (125MM) | XE | ||
| 28 | 496429-00 | 2 | FAN | XE | |||
| 32 | 477340-00 | 1 | FIELD SA 230V | 230V | XE | ||
| 34 | 330045-06 | 2 | SCREW | XE | |||
| 69 | 5103553-00 | 2 | BATTERY 18V - 1.5AH - 27WH | XE | |||
| 70 | 663029-00 | 1 | HANDLE SIDE SA | XE | |||
| 71 | 617223-00 | 1 | KITBOX | XE | |||
| 72 | 152251-02SV | 1 | PACK-BATTERY | XE | |||
| 74 | 390096-00 | 1 | DEFLECTOR | XE | |||
| 75 | 450849-00 | 1 | SELECTOR | XE | |||
| 76 | 146957-00 | 1 | LEAD RED | XE | |||
| 77 | 146957-01 | 1 | LEAD BLACK | XE | |||
| 80 | A23584 | 1 | HOUSING | XE | |||
| 81 | N083671 | 1 | SHIFT KNOB | XE | |||
| 100 | 21246-00 | 3 | BEARING NEEDLE | XE | |||
| 101 | 373311-01 | 1 | ARMATURE 230V | XE | |||
| 102 | 807254-13 | 1 | FIELD SA | XE | |||
| 102 | 700964-00 | 1 | BEARING | XE | |||
| 103 | 374126-00 | 1 | CLAMSHELL | TYPE 1 | XE | ||
| 103 | 580941-03 | 1 | CLAMSHELL SET | ORANGE | FROM DCODE 010202 | XE | |
| 103 | 571983-00 | 1 | CLAMSHELL | TYPE 2 | XE |
| ||
| 104 | 146736-02 | 1 | GEAR & SPINDLE SA | XE | |||
| 104 | 807262 | 1 | HEATSINK SA | XE | |||
| 105 | 736703 | 2 | BRUSH | XE | |||
| 105 | N522017 | 1 | LEVER | XE | |||
| 106 | 830501 | 2 | SPRING | XE | |||
| 106 | 330003-11 | 1 | BEARING | XE | |||
| 107 | 368320 | 1 | SWITCH | XE | |||
| 108 | 627226-00 | 1 | LABEL | ID/INSTRUCTION | XE | ||
| 108 | 807264-00 | 1 | PCB SA | TYPE 1 | XE | ||
| 108 | 807264-02 | 1 | PCB | TYPE 2 | XE | ||
| 109 | 402140-00 | 1 | ANTI SPLINTER DEVICE | XE | |||
| 109 | 823723 | 4 | CONNECTOR | XE | |||
| 110 | 021635-00 | 1 | NEEDLE BEARING | XE | |||
| 110 | 807242 | 1 | PAD | XE | |||
| 111 | 821070 | 1 | CORD CLAMP | XE | |||
| 111 | 389658-00 | 1 | Handle | XE | |||
| 112 | 808495-01 | 1 | ACTUATOR | XE | |||
| 112 | 624281-00 | 1 | CAP | NON VS | XE | ||
| 113 | 747329 | 7 | SCREW | XE | |||
| 113 | 648036-00 | 2 | CIRCUIT BREAKER | 125/250V 25A | XE | ||
| 114 | N388927 | 1 | BASE SA | XE | |||
| 114 | 770235 | 1 | PROTECTOR | XE | |||
| 115 | 330080-06 | 1 | CORDSET | XE | |||
| 116 | 807246 | 1 | WASHER | UPTO DATE CODE 09-97 | XE | ||
| 117 | 330003-39 | 1 | BEARING | XE | |||
| 118 | 807235 | 1 | FAN SA | XE | |||
| 119 | 807241 | 1 | SHROUD | XE | |||
| 120 | 747329 | 2 | SCREW | XE | |||
| 121 | 808766 | 1 | BAFFLE | XE | |||
| 122 | 807237 | 1 | DUST BAG SA | XE | |||
| 123 | 369881-04 | 1 | BRAND LABEL | KA200 | XE | ||
| 123 | 369881-03 | 1 | BRAND LABEL | KA210 | XE | ||
| 123 | 369881-01 | 1 | BRAND LABEL | KA220 | XE | ||
| 124 | 797165-01 | 1 | STRAP | XE | |||
| 125 | 369996-00 | 1 | BRAND LABEL | XE | |||
| 126 | 807255-03 | 1 | BLOCK | XE | |||
| 127 | 808144-02 | 1 | SIDE HANDLE | XE | |||
| 128 | 807043 | 1 | WRENCH | 4mm | XE | ||
| 129 | 370748 | 2 | SCREW | XE | |||
| 130 | 807936 | 1 | WASHER | XE | |||
| 131 | 797190 | 1 | SCREW.TEMP | XE | |||
| 132 | 807224 | 4 | LEG | XE | |||
| 133 | 90558556 | 1 | TIP | XE | |||
| 134 | 807274-01 | 1 | PAD | XE | |||
| 135 | 808765 | 1 | SCREW | XE | |||
| 136 | 377443-01 | 1 | TIP | XE | |||
| 137 | 371936 | 1 | SCREW | KA210 LD | XE | ||
| 138 | 90554651N | 1 | BASE | KA210 LD | XE | ||
| 139 | 371933 | 1 | FASTENER | KA210 LD | XE | ||
| 140 | 371934 | 1 | PLATEN | KA210 LD | XE | ||
| 141 | 371931 | 1 | BASE SA | KA210 LD | XE | ||
| 142 | 807939 | 1 | PLATE | XE | |||
| 143 | 575772-01 | 1 | SHOE SA | XE | |||
| 856 | 90548729 | 1 | BATTERY 14.4V - 1.2AH | NiCd - A14E | XE |
