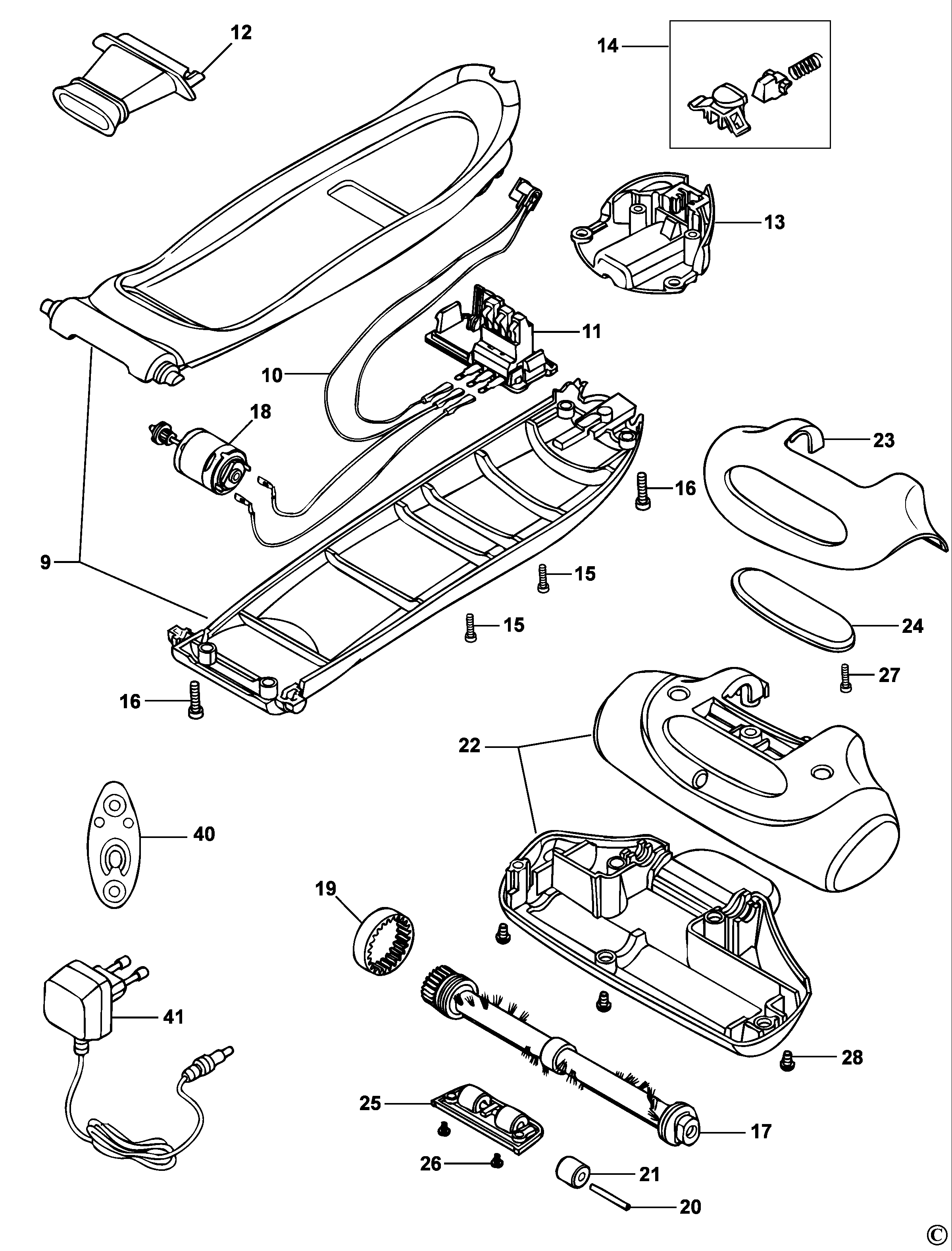

FV9601 STICK-VAC Type H2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5101446-00 | 1 | HANDLE SA | XE | |||
| 2 | 5101449-00 | 1 | BUTTON SA | XE | |||
| 3 | 499748-06 | 1 | BRUSH SA | XE | |||
| 4 | 499745-06 | 1 | TOOL CREVICE | XE | |||
| 5 | 5101479-00 | 1 | LOOP HANDLE | XE | |||
| 6 | 5101444-00 | 1 | INSERT SA | XE | |||
| 7 | 5101476-00 | 1 | COVER | XE | |||
| 8 | 5101502-00 | 2 | SCREW | 3.5 x 38mm | XE | ||
| 9 | 5101441-00 | 1 | HOUSING PAIR | 9.6 Volt | XE | ||
| 10 | 5101447-00 | 1 | LEAD SA | XE | |||
| 11 | 499738-05 | 1 | CONTACT SA | XE | |||
| 12 | 5101461-02 | 1 | FUNNEL | XE | |||
| 13 | 5101464-00 | 1 | COVER | XE | |||
| 14 | 5101450-00 | 1 | CATCH SA | XE | |||
| 15 | 5101503-00 | 6 | SCREW | 3.5 x 12mm | XE | ||
| 16 | 5100439-01 | 10 | SCREW | 3.6 x 18mm | XE | ||
| 17 | 5100550-01 | 1 | POWERBRUSH SA | XE | |||
| 18 | 5100562-02 | 1 | MOTOR SA | 9.6 Volt | XE | ||
| 19 | 5100561-00 | 1 | BELT TOOTHED | XE | |||
| 20 | 5101492-00 | 4 | AXLE | 2.5 x 30mm | XE | ||
| 21 | 5101486-00 | 4 | ROLLER | XE | |||
| 22 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 23 | 5101462-00 | 1 | CAP | XE | |||
| 24 | 5101477-00 | 1 | INSERT | XE | |||
| 25 | 5101478-00 | 1 | COVER | XE | |||
| 26 | 419799-05 | 2 | SCREW | XE | |||
| 27 | 5101503-00 | 6 | SCREW | 3.5 x 12mm | XE | ||
| 28 | 5100439-01 | 5 | SCREW | 3.6 x 18mm | XE | ||
| 29 | 499731-17 | 1 | BOWL | XE | |||
| 30 | 499739-01 | 1 | FILTER | XE | |||
| 31 | 499742-00 | 1 | COVER | XE | |||
| 32 | 499724-03 | 1 | HOUSING LOWER | XE | |||
| 33 | 5101448-04 | 1 | CLAMSHELL SET | XE | |||
| 34 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 35 | 5101437-00 | 1 | SWITCH SA | XE | |||
| 36 | 499744-04 | 1 | INSERT | XE | |||
| 37 | 499721-04 | 1 | LATCH | XE | |||
| 38 | 499694-08 | 1 | BATTERY PACK 9.6V | NiCd | XE | ||
| 39 | 5100439-01 | 5 | SCREW | 3.6 x 18mm | XE | ||
| 40 | 5101484-00 | 1 | HOOK | XE | |||
| 41 | 5147638-00 | 1 | CHARGER | XE |
