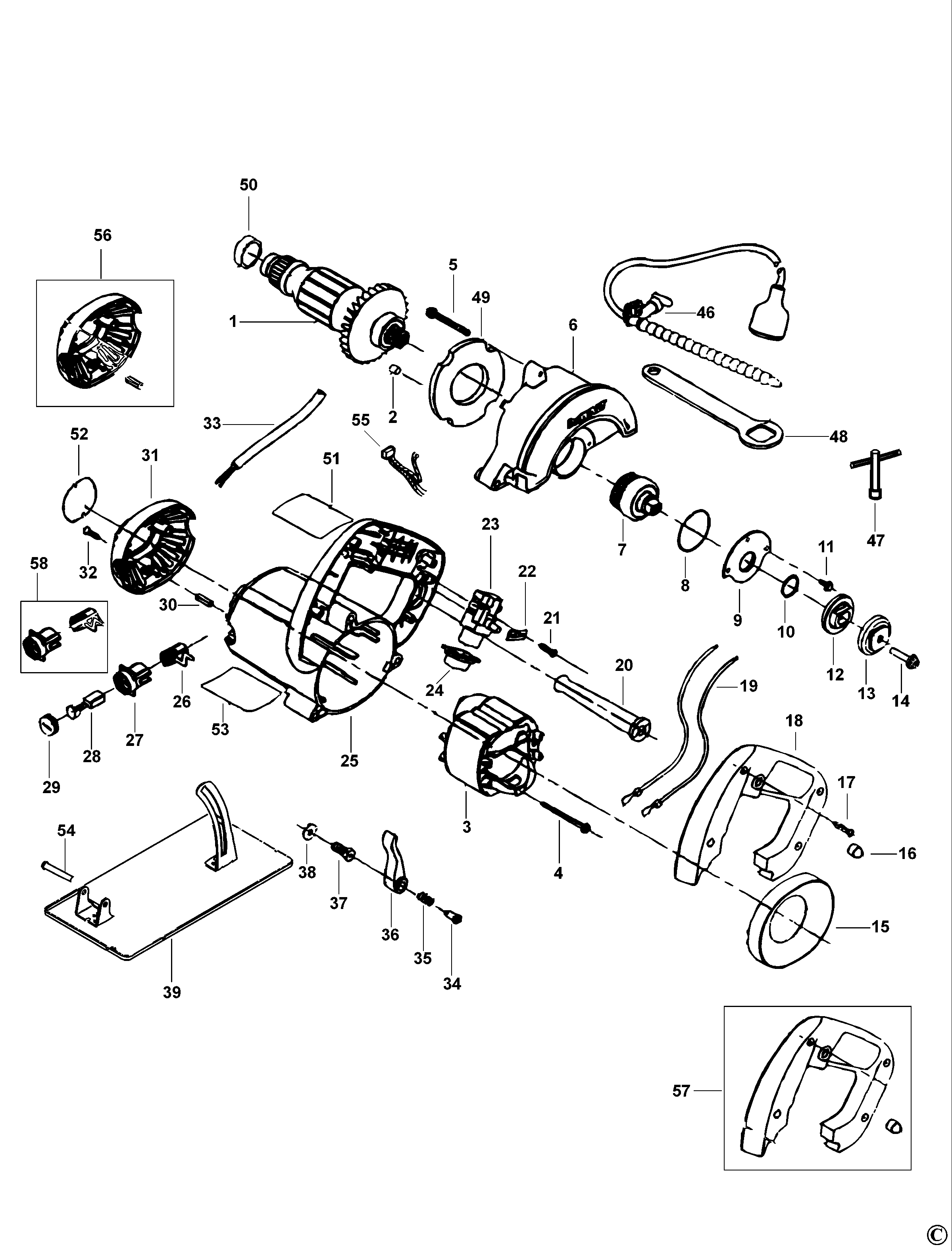

DW861 TILE CUTTER Type 2 | Drawings
Documents

Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
---|---|---|---|---|---|---|---|
1 | 562214-00 | 1 | ARMATURE 230V | XD | |||
2 | 561928-01 | 1 | PIN | XD | ![]() |
||
3 | 562216-00 | 1 | FIELD 230V | XD | ![]() |
||
4 | 561914-02 | 2 | SCREW | XD | ![]() |
||
5 | 561914-01 | 3 | SCREW | XD | ![]() |
||
6 | 562228-00 | 1 | GEARCASE | XD | ![]() |
||
7 | 562229-00 | 1 | SPINDLE & GEAR | XD | ![]() |
||
8 | 561917-02 | 1 | O RING | XD | ![]() |
||
9 | 562252-00 | 1 | GEARCASE COVER | XD | ![]() |
||
10 | 561917-01 | 1 | O RING | XD | ![]() |
||
11 | 561914-00 | 3 | SCREW | XD | ![]() |
||
12 | 562231-00 | 1 | INNER FLANGE | XD | ![]() |
||
13 | 562232-00 | 1 | OUTER FLANGE | XD | ![]() |
||
14 | 562233-00 | 1 | SCREW | XD | ![]() |
||
15 | 562215-00 | 1 | BAFFLE | XD | ![]() |
||
16 | 562225-00 | 1 | BUTTON | XD | ![]() |
||
17 | 562097-03 | 4 | SCREW | XD | ![]() |
||
18 | 562221-00 | 1 | HANDLE COVER | XD | ![]() |
||
19 | 561913-00 | 2 | LEAD | XD | ![]() |
||
20 | 330005-01 | 1 | CORD PROTECTOR | XD | ![]() |
||
21 | 562097-00 | 2 | SCREW | XD | ![]() |
||
22 | 930103-00 | 1 | CORD CLAMP | XD | ![]() |
||
23 | 646568-00 | 1 | SWITCH | XD | ![]() |
||
24 | 562224-00 | 1 | BOOT | XD | ![]() |
||
25 | 562245-00 | 1 | FIELDCASE | XD | ![]() |
||
26 | 562227-00 | 2 | BRUSH HOLDER | XD | ![]() |
||
27 | 562218-00 | 2 | BRUSH FRAME | XD | ![]() |
||
28 | N088931 | 1 | BRUSH PAIR 230V | 562217-01 x 2 | XD | ![]() |
|
28 | 562217-01 | 2 | BRUSH 230V | XD | ![]() |
||
29 | 562219-00 | 2 | BRUSH CAP | XD | ![]() |
||
30 | 561928-00 | 2 | PIN | XD | ![]() |
||
31 | 562222-00 | 1 | END CAP | XD | ![]() |
||
32 | 562097-05 | 2 | SCREW | XD | ![]() |
||
33 | 562226-02 | 1 | CABLE | XD | ![]() |
||
34 | 561920-00 | 1 | PIN | XD | ![]() |
||
35 | 562210-00 | 1 | SPRING | XD | ![]() |
||
36 | 561918-00 | 1 | LEVER | XD | ![]() |
||
37 | 562235-00 | 1 | BOLT | XD | ![]() |
||
38 | 561916-00 | 1 | WASHER | XD | ![]() |
||
39 | 562234-00 | 1 | SHOE | XD | ![]() |
||
46 | 562239-00 | 1 | ACCESSORY KIT | XD | ![]() |
||
47 | 562238-00 | 1 | HEX KEY | XD | ![]() |
||
48 | 562237-00 | 1 | SPANNER | XD | ![]() |
||
49 | 569723-00 | 1 | DEFLECTOR | XD | |||
50 | 949721-05 | 1 | SLEEVE | XD | ![]() |
||
51 | 562230-00 | 1 | IDENTITY LABEL | XD | ![]() |
||
52 | 561922-00 | 1 | LABEL | XD | ![]() |
||
53 | 569037-00 | 1 | RATING PLATE | XD | ![]() |
||
54 | 562254-00 | 1 | ROLL PIN | XD | ![]() |
||
56 | 569560-00 | 1 | END CAP SA | XD | |||
57 | 569561-00 | 1 | HANDLE COVER | XD | |||
58 | 569518-00 | 1 | BRUSH HOLDER | XD |
