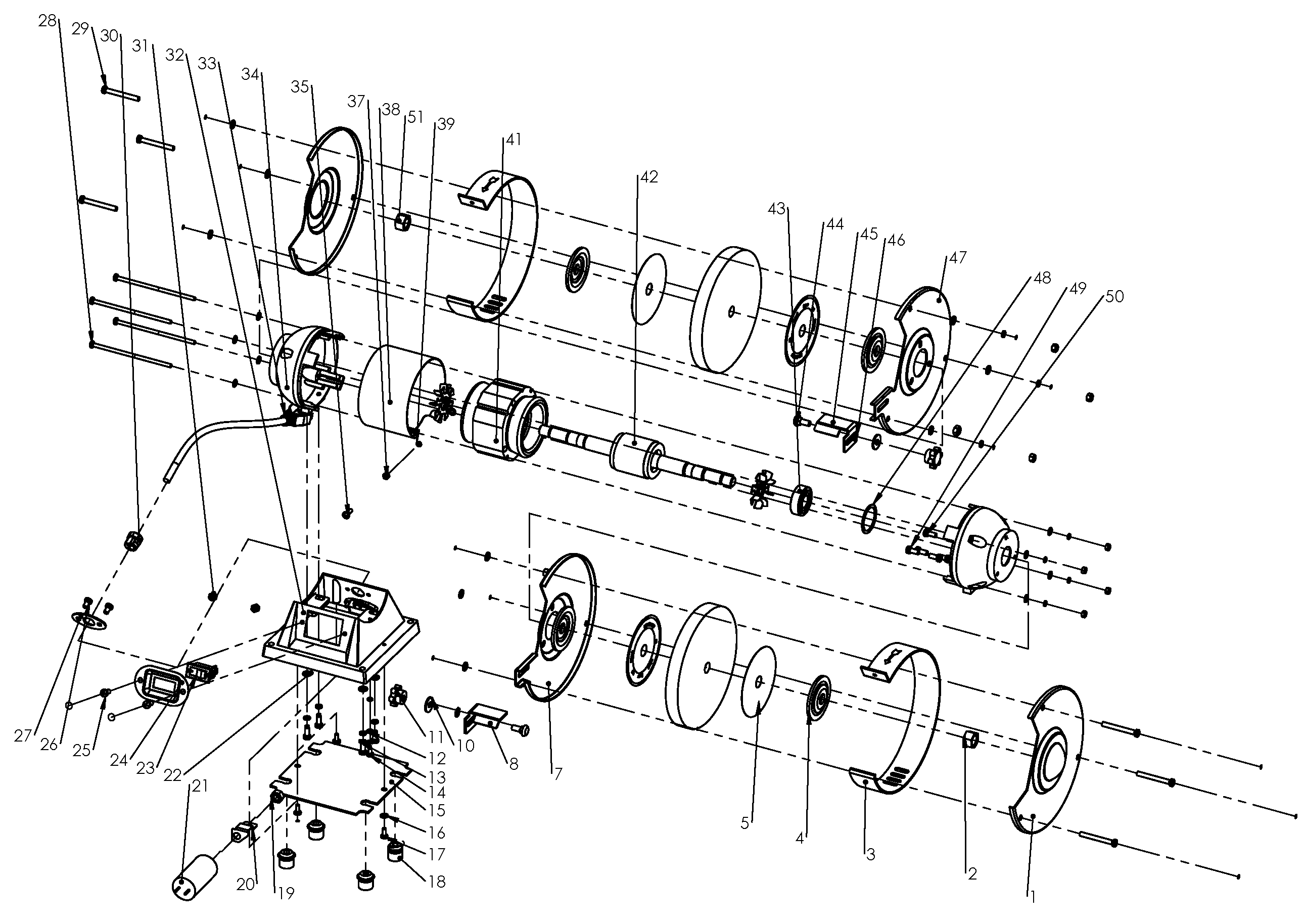

BG180 BENCH GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Markets
1	5140130-58	2	OUTER COVER	BR
2	5140130-59	1	NUT	BR
3	5140130-60	2	WHEEL COVER	BR
4	5140130-61	4	FLANGE	BR
5	5140130-62	4	PAD	BR
7	5140130-63	1	INNER COVER	BR
8	5140130-64	1	TOOL REST R H	BR
10	5140130-65	2	WASHER	BR
11	5140130-66	2	KNOB	BR
12	5140130-67	1	WASHER	BR
13	5140130-68	1	SPRING	BR
14	5140130-69	1	BOLT	BR
15	5140130-70	1	BASE PLATE	BR
16	5140130-71	12	WASHER	BR
17	5140130-72	3	BOLT	BR
18	5140130-73	4	FOOT	BR
19	5140130-74	1	HEX NUT	BR
20	5140130-75	1	CAPACITOR SUPPORT	BR
21	5140130-76	1	CAPACITOR	BR
22	5140130-77	16	WASHER	BR
23	5140130-78	1	SWITCH	BR
24	5140130-79	1	SWITCH PLATE	BR
25	5140130-80	2	BOLT	BR
26	5140130-81	2	BOLT	BR
27	5140130-82	1	CABLE PLATE	BR
28	5140130-83	4	BOLT	BR
29	5140130-84	6	BOLT	BR
30	5140130-85	1	SLEEVE	BR
31	5140130-86	8	NUT	BR
32	5140130-87	1	BASE	BR
33	5140130-88	1	CABLE PLUG	BR
34	5140130-89	2	BEARING HOUSING	BR
35	5140130-90	1	BOLT	BR
37	5140130-91	5	NUT	BR
38	5140130-92	1	MOTOR HOUSING	BR
39	5140130-93	6	WASHER	BR
41	5140130-94	1	STATOR	BR
42	5140130-95	1	ROTOR	BR
43	5140130-96	2	BEARING	BR
44	5140130-97	2	BOLT	BR
45	5140130-98	1	TOOL REST LH	BR
46	5140130-99	2	WASHER	BR
47	5140131-00	1	INNER COVER	BR
48	5140131-01	1	WAVY WASHER	BR
49	5140131-02	16	WASHER	BR
50	5140131-03	10	BOLT	BR
51	5140131-04	1	NUT	BR
