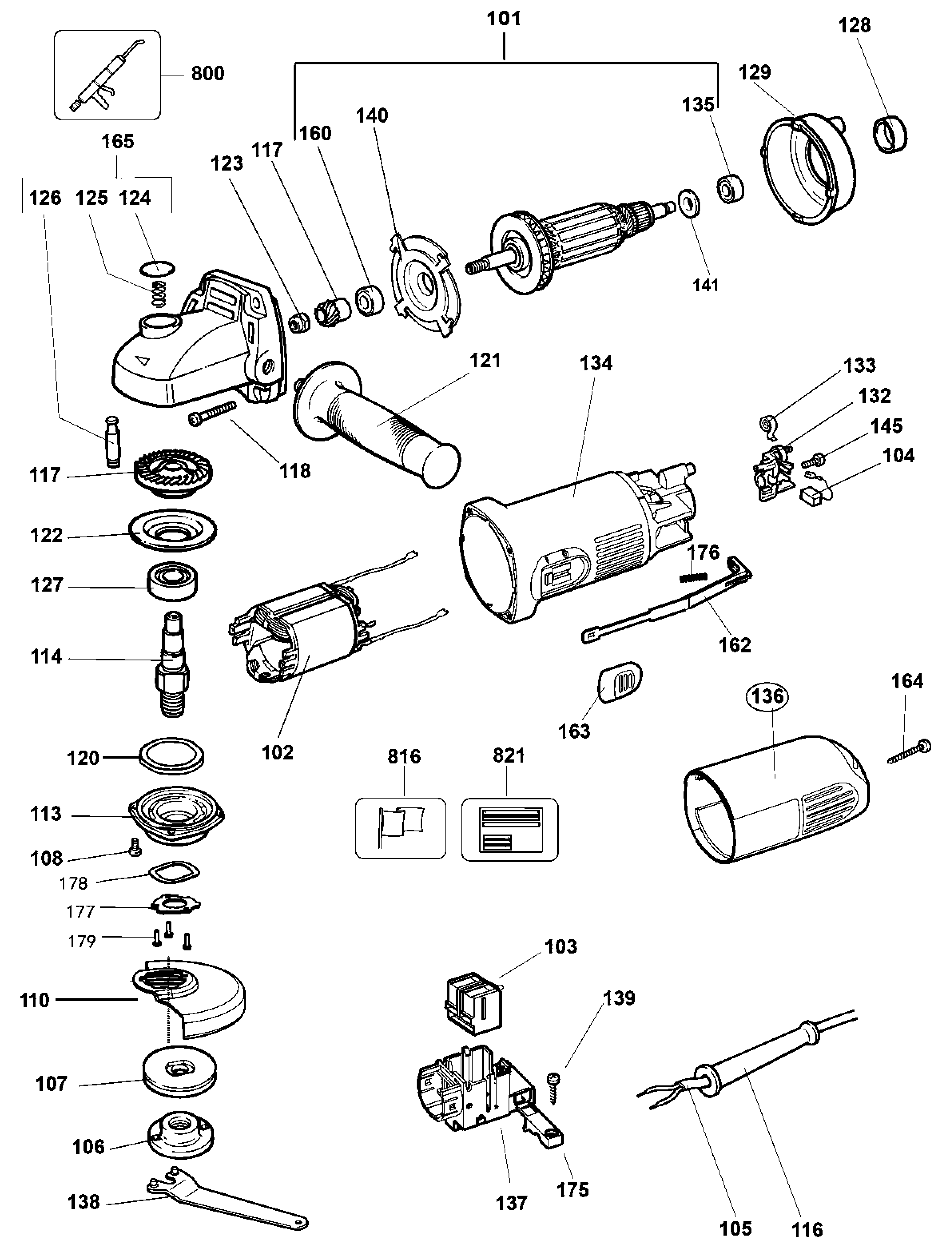

DWE4010 SMALL ANGLE GRINDER Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | N561808 | 1 | ARMATURE SA | AR | |||
| 102 | N578699 | 1 | FIELD SA | AR | |||
| 103 | N327459 | 1 | SWITCH | AR | |||
| 104 | N035676 | 1 | BRUSH PAIR 230V | AR | |||
| 105 | N537670 | 1 | CORDSET | AR | |||
| 106 | N526028 | 1 | OUTER FLANGE | AR | |||
| 107 | N525999 | 1 | INNER FLANGE | AR | |||
| 108 | N520080 | 1 | SCREW | AR | |||
| 110 | N516995 | 1 | GUARD | AR | |||
| 113 | N516728 | 1 | GEARCASE | AR | |||
| 114 | N526011 | 1 | SPINDLE | AR | |||
| 116 | 641081-00 | 1 | CORD PROTECTOR | AR | |||
| 117 | 661244-00 | 1 | GEAR & PINION | AR | |||
| 118 | N520085 | 4 | SCREW | AR | |||
| 120 | 641893-00 | 1 | FELT SEAL | AR | |||
| 121 | N512593 | 1 | HANDLE SIDE SA | AR | |||
| 122 | N520065 | 1 | FLANGE | AR | |||
| 123 | 49205017 | 1 | NUT | AR | |||
| 124 | N499496 | 1 | BUTTON | AR | |||
| 125 | N520072 | 1 | SPRING | AR | |||
| 126 | N499495 | 1 | SPINDLE LOCK | AR | |||
| 127 | 605040-22 | 1 | BEARING | AR | |||
| 128 | 930275-00 | 1 | SLEEVE | AR | |||
| 129 | N522613 | 1 | BAFFLE | AR | |||
| 132 | N566924 | 2 | BRUSH HOLDER SA | AR | |||
| 133 | 562204-00 | 2 | SPRING | AR | |||
| 134 | N506686 | 1 | FIELDCASE | AR | |||
| 135 | 605040-03 | 1 | BEARING BALL | AR | |||
| 136 | N506691 | 1 | END CAP | AR | |||
| 137 | N513692 | 1 | SWITCH SUPPORT | AR | |||
| 138 | N107295 | 1 | HEX KEY | 6 mm | AR | ||
| 139 | N520084 | 1 | SCREW | AR | |||
| 140 | 401622-01 | 1 | FLANGE | AR | |||
| 141 | 398906-00 | 1 | SPACER INSULATING | AR | |||
| 145 | N520084 | 2 | SCREW | AR | |||
| 160 | N110359 | 1 | BEARING | AR | |||
| 162 | N510166 | 1 | LINK | AR | |||
| 163 | N519344 | 1 | BUTTON | AR | |||
| 164 | N520087 | 3 | SCREW | AR | |||
| 165 | N561809 | 1 | GEARCASE SA | AR | |||
| 175 | N525990 | 1 | CORD CLAMP | AR | |||
| 176 | N526221 | 1 | SPRING | AR | |||
| 177 | N525975 | 1 | GUARD RET PLATE | AR | |||
| 178 | 393576-00 | 1 | RING | AR | |||
| 179 | N516962 | 3 | SCREW | M3x11mm | AR | ||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | AR | ||
| 816 | N526987 | 1 | BRAND LABEL | AR | |||
| 821 | N527003 | 1 | RATING LABEL | AR |
