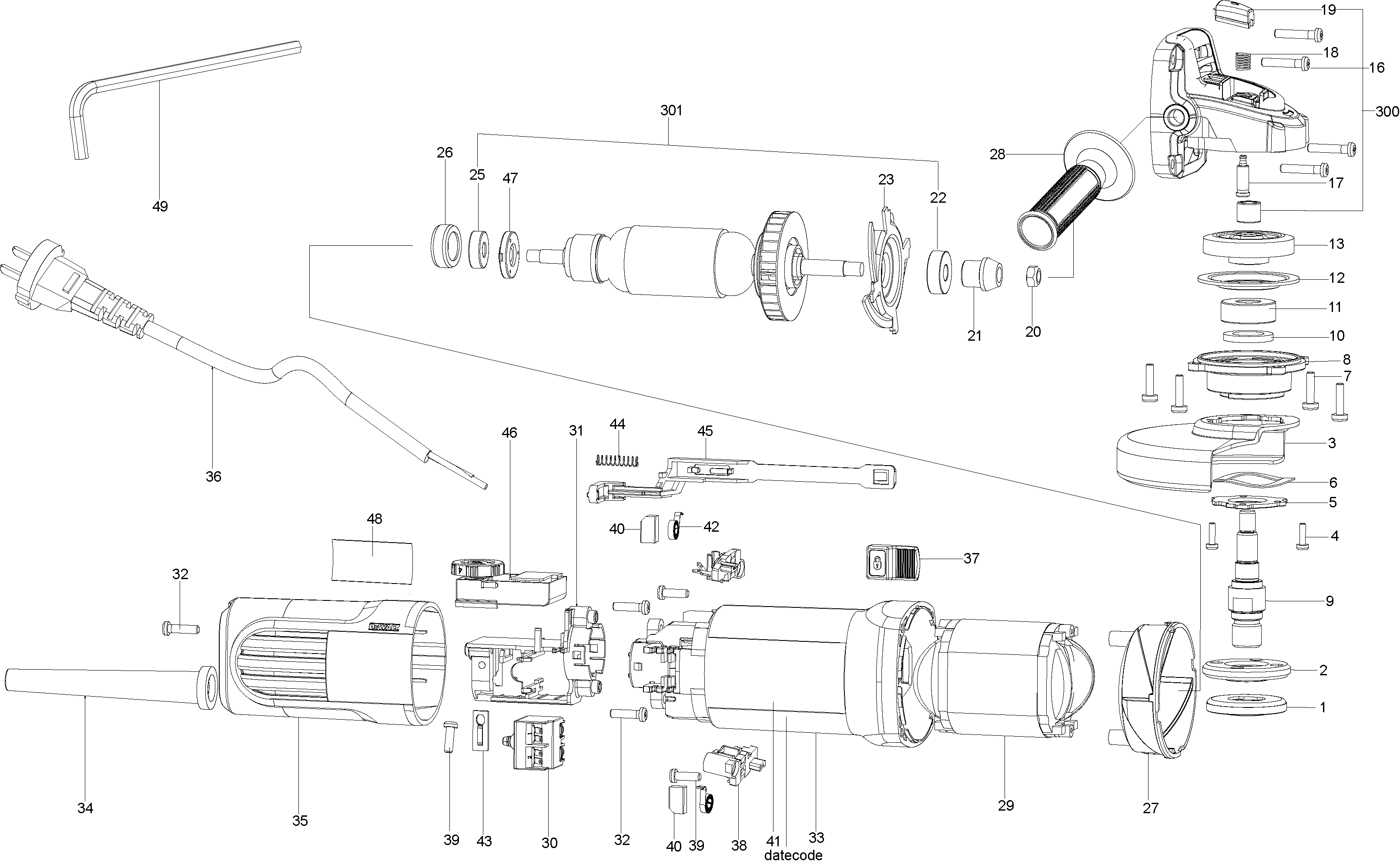

DWE4118 SMALL ANGLE GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	N526028	1	OUTER FLANGE		B2
2	N525999	1	INNER FLANGE		B2
3	N516995	1	GUARD		B2
4	N516962	3	SCREW	M3x11mm	B2
5	N525975	1	GUARD RET PLATE		B2
6	393576-00	1	RING		B2
7	N520080	4	SCREW		B2
8	N516728	1	GEARCASE		B2
9	N526011	1	SPINDLE		B2
10	641893-00	1	FELT SEAL		B2
11	605040-22	1	BEARING		B2
12	N520065	1	FLANGE		B2
13	661243-00	1	GEAR & PINION		B2
16	N520085	4	SCREW		B2
17	N499495	1	SPINDLE LOCK		B2
18	N520072	1	SPRING		B2
19	N499496	1	BUTTON		B2
20	49205017	1	NUT		B2
21	661243-00	1	GEAR & PINION		B2
22	N110359	1	BEARING		B2
23	401622-01	1	FLANGE		B2
25	605040-03	1	BEARING BALL		B2
26	930275-00	1	SLEEVE		B2
27	N522613	1	BAFFLE		B2
28	N512593	1	HANDLE SIDE SA		B2
29	N615209	1	FIELD SA		B2
30	N327459	1	SWITCH		B2
31	N513692	1	SWITCH SUPPORT		B2
32	N520087	3	SCREW		B2
33	N506686	1	FIELDCASE		B2
34	641081-00	1	CORD PROTECTOR		B2
35	N517652	1	END CAP		B2
36	N526486	1	CORDSET		B2
37	N519344	1	BUTTON		B2
38	N566924	2	BRUSH HOLDER SA		B2
39	N520084	3	SCREW		B2
40	N035676	1	BRUSH PAIR 230V		B2
41	N858149	1	RATING LABEL		B2
42	562204-00	2	SPRING		B2
43	N525990	1	CORD CLAMP		B2
44	N526221	1	SPRING		B2
45	N510166	1	LINK		B2
46	N568417	1	MODULE		B2
47	N514046	1	MAGNET		B2
48	N527000	1	LABEL		B2
49	N107295	1	HEX KEY	6 mm	B2
300	N561809	1	GEARCASE SA		B2
301	N615212	1	ARMATURE SA		B2
