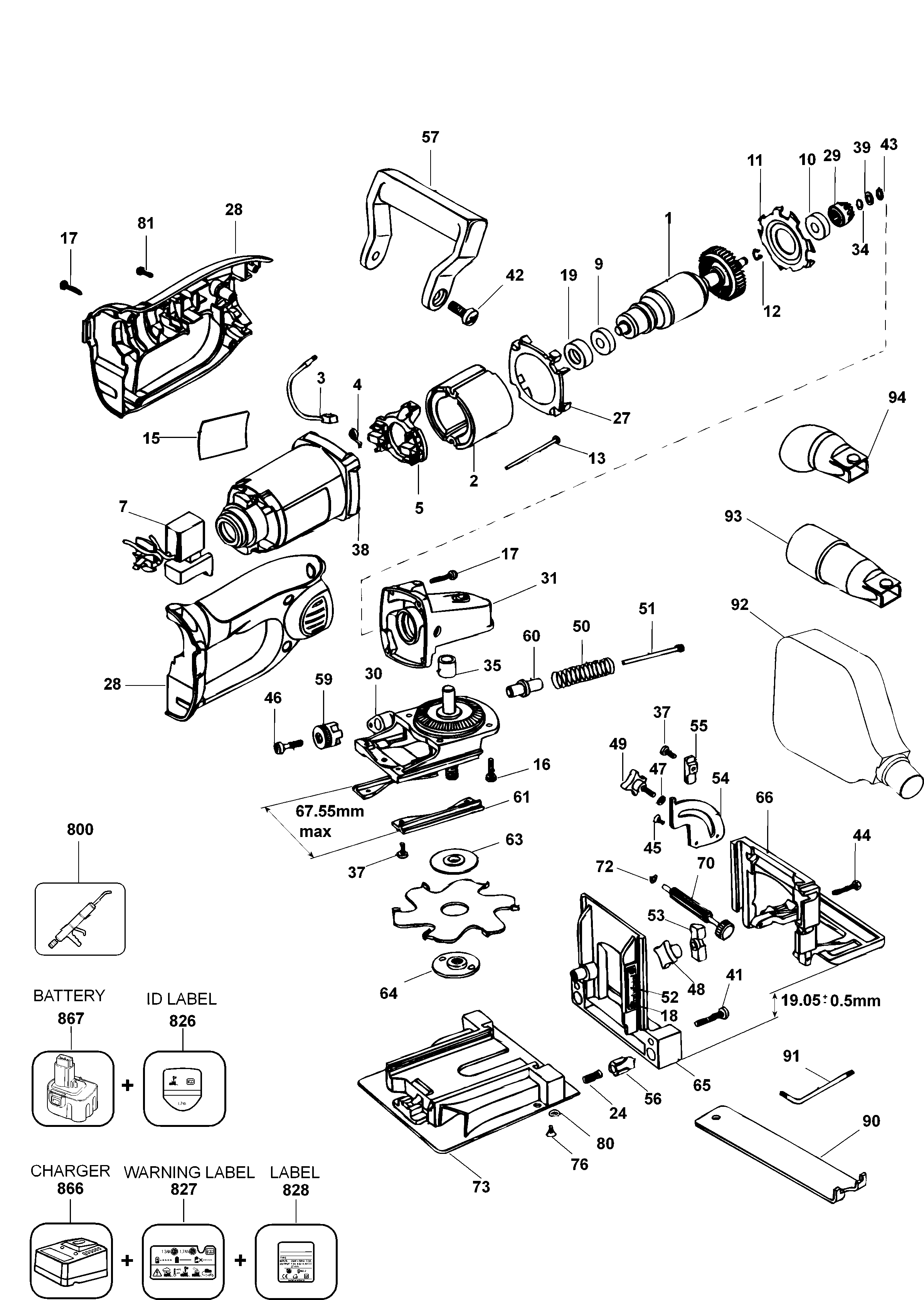

DW932K PLATE JOINER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 389823-01SV | 1 | ARMATURE & FAN | CH | |||
| 2 | 388232-01SV | 1 | MAGNET | CH | |||
| 3 | 387558-01 | 2 | BRUSH & LEAD | CH | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | CH | |||
| 5 | 382178-01 | 1 | BRUSH FRAME | CH | |||
| 7 | 620508-00 | 1 | SWITCH SA | CH | |||
| 9 | 605040-06 | 1 | BEARING,BALL | CH | |||
| 10 | 605040-15 | 1 | BEARING,BALL | CH | |||
| 11 | 150057-00 | 1 | RETAINER | CH | |||
| 12 | 444793-00 | 1 | CIRCLIP | CH | |||
| 13 | 448269-00 | 2 | SCREW | CH | |||
| 15 | 391372-00 | 1 | LABEL | CH | |||
| 16 | 146929-00 | 4 | SCREW | CH | |||
| 17 | 330019-13 | 8 | SCREW | M4X19 T20 | CH | ||
| 18 | 330045-43 | 2 | SCREW | CH | |||
| 19 | 445217-02 | 1 | SLEEVE | CH | |||
| 24 | 147809-00 | 2 | SPRING | CH | |||
| 27 | 390181-00 | 1 | BAFFLE | CH | |||
| 28 | 389591-01 | 1 | HANDLE & COVER | CH | |||
| 29 | 152487-01 | 1 | PINION | CH | |||
| 30 | 147730-02 | 1 | GEARCASE COVER | CH | |||
| 31 | N835822 | 1 | GEARCASE SA | CH | |||
| 34 | 050050-00 | 1 | RING | CH | |||
| 35 | 36826-00 | 1 | SLEEVE BEARING | CH | |||
| 37 | 330045-05 | 5 | SCREW | CH | |||
| 38 | 445857-08 | 1 | FIELDCASE | CH | |||
| 39 | 449559-00 | 1 | WASHER | CH | |||
| 41 | 330045-16 | 2 | SCREW | CH | |||
| 42 | 330045-32 | 2 | SCREW | CH | |||
| 43 | 38751-00 | 1 | RING | CH | |||
| 44 | 98022-25 | 1 | SCREW | CH | |||
| 45 | 098102-10 | 2 | SCREW.TEMP | CH | |||
| 46 | 147791-00 | 1 | SCREW | CH | |||
| 47 | 330016-07 | 1 | WASHER | CH | |||
| 48 | 396991-00 | 1 | KNOB | CH | |||
| 49 | 396992-00 | 1 | KNOB | CH | |||
| 50 | 391684-00 | 1 | SPRING | CH | |||
| 51 | 147759-00 | 1 | SHAFT | CH | |||
| 52 | 147797-00 | 1 | SCALE | CH | |||
| 53 | 147749-00 | 1 | CLAMP | CH | |||
| 54 | 147795-00 | 1 | QUADRANT | CH | |||
| 55 | 147786-00 | 1 | STOP | CH | |||
| 56 | 147753-00 | 2 | PIN | CH | |||
| 57 | 147793-00 | 1 | Handle | CH | |||
| 59 | 147760-00 | 1 | STOP | CH | |||
| 60 | 390758-00 | 1 | GUIDE | CH | |||
| 61 | 147736-01 | 2 | PAD | CH | |||
| 63 | 147725-00 | 1 | WASHER | CH | |||
| 64 | 151001-00 | 1 | NUT | CH | |||
| 65 | 147741-00 | 1 | SUPPORT | CH | |||
| 66 | 147740-01 | 1 | FENCE | CH | |||
| 70 | 147745-00SV | 1 | PINION | CH | |||
| 72 | 147799-00 | 2 | O RING | CH | |||
| 73 | 385914-00 | 1 | BASEPLATE SA | CH | |||
| 76 | 385915-01 | 4 | SCREW | CH | |||
| 80 | 385946-00 | 4 | WASHER SPRING | CH | |||
| 81 | 682211-00 | 1 | SCREW | CH | |||
| 90 | 445871-00 | 1 | SPANNER | CH | |||
| 91 | 152693-00 | 1 | KEY | CH | |||
| 92 | 147734-06 | 1 | DUSTBAG | CH | |||
| 93 | 147794-00 | 1 | ADAPTOR | CH | |||
| 94 | 151002-00 | 1 | DUST DEFLECTOR | CH | |||
| 800 | 870889-02 | 1 | GREASE | CH | |||
| 826 | 578763-00 | 1 | IDENTITY LABEL | CH | |||
| 827 | 643500-00 | 1 | WARNING LABEL | CH | |||
| 828 | 583471-05 | 1 | NAMEPLATE | CH |
