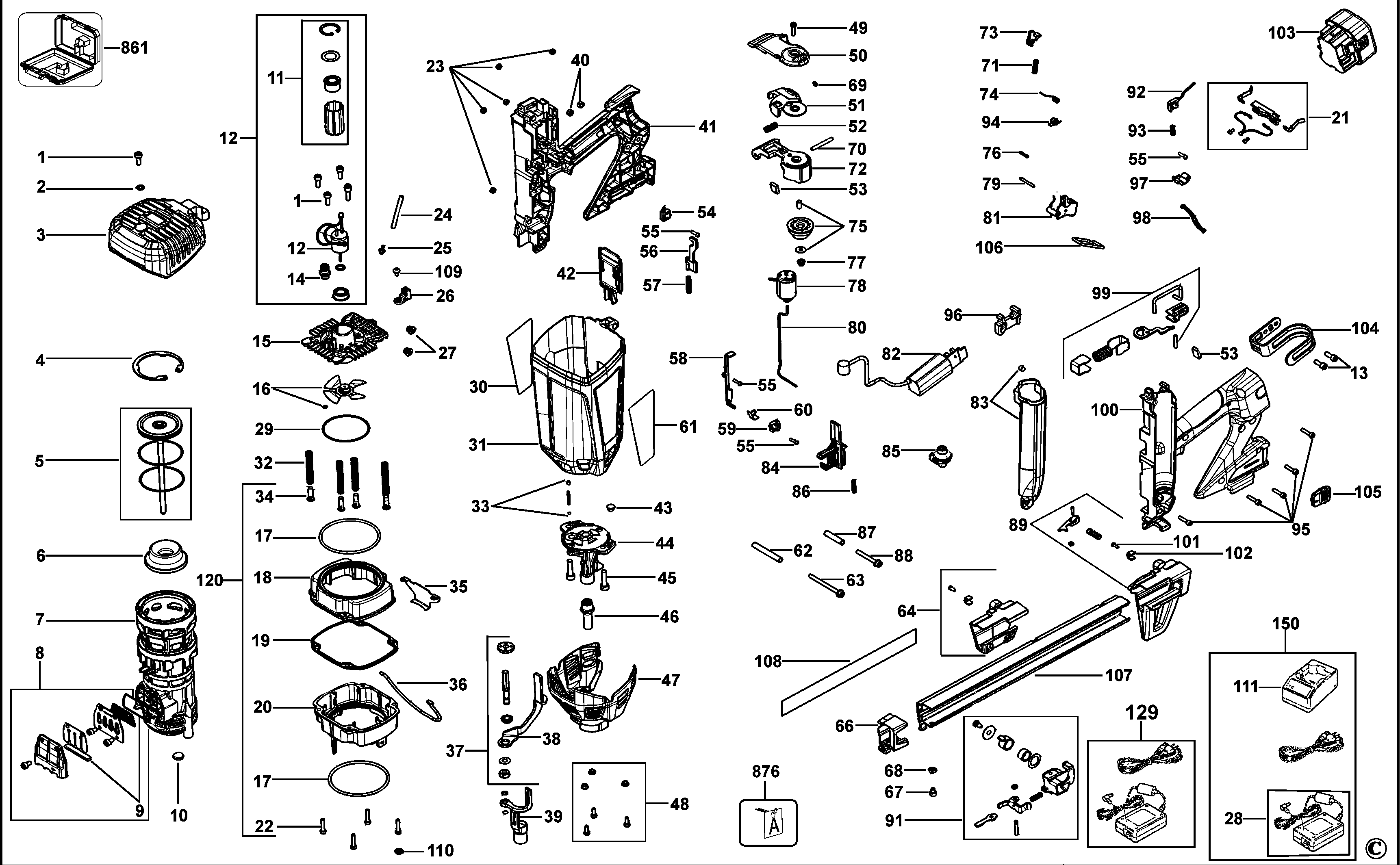

DDF5120550 NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 56100-PWR | 6 | BOLT | QW | |||
| 2 | 56101-PWR | 1 | WASHER | QW | |||
| 3 | 56103-PWR | 1 | END CAP | QW | |||
| 4 | 55807-PWR | 1 | RING | QW | |||
| 5 | 56361-PWR | 1 | PISTON SA | QW | |||
| 6 | 56150-PWR | 1 | BUMPER | QW | |||
| 7 | 56152-PWR | 1 | CYLINDER | QW | |||
| 8 | 56362-PWR | 1 | VALVE REED | QW | |||
| 9 | 56360-PWR | 1 | VALVE REED | QW | |||
| 10 | 56192-PWR | 1 | BUMPER | QW | |||
| 11 | 56367-PWR | 1 | BUFFER | QW | |||
| 12 | 56356-PWR | 1 | MOTOR SA | QW | |||
| 13 | 56245-PWR | 2 | SCREW | QW | |||
| 14 | 56114-PWR | 1 | PLUG | QW | |||
| 15 | 56115-PWR | 1 | CYLINDER HEAD | QW | |||
| 16 | 56369-PWR | 1 | FAN SA | QW | |||
| 17 | 56132-PWR | 2 | O RING | QW | |||
| 18 | 56134-PWR | 1 | HOUSING UPPER | QW | |||
| 19 | 56136-PWR | 1 | SEAL | QW | |||
| 20 | 56500-PWR | 1 | HOUSING LOWER | QW | |||
| 21 | 56354-PWR | 1 | BATTERY CONNECTOR | QW | |||
| 22 | 56140-PWR | 1 | SCREW | QW | |||
| 23 | 56380-PWR | 1 | NUT M4 | QW | |||
| 24 | 56119-PWR | 1 | TUBE | QW | |||
| 25 | 56120-PWR | 1 | CONNECTOR | QW | |||
| 26 | 56126-PWR | 1 | HOLDER | QW | |||
| 27 | 56174-PWR | 1 | NUT M5 | QW | |||
| 28 | DW56510 | 1 | ADAPTOR SA | QW | |||
| 29 | 56122-PWR | 1 | O RING | QW | |||
| 30 | DW56506 | 1 | WARNING LABEL | QW | |||
| 31 | DW56502 | 1 | HOUSING | QW | |||
| 32 | 56358-PWR | 1 | SPRING | QW | |||
| 33 | 56355-PWR | 1 | STOP | QW | |||
| 34 | 56359-PWR | 1 | SPRING GUIDE | QW | |||
| 35 | 56144-PWR | 1 | ADJUSTER PLATE | QW | |||
| 36 | 56501-PWR | 1 | ARM | QW | |||
| 37 | DW56511 | 1 | ADJUSTER DEPTH | QW | |||
| 38 | 56270-PWR | 1 | ACTUATION ARM | QW | |||
| 39 | 56278-PWR | 1 | ACTUATION ARM | QW | |||
| 40 | 56166-PWR | 1 | NUT M5 | QW | |||
| 41 | 56167-PWR | 1 | HANDLE RH | QW | |||
| 42 | 56170-PWR | 1 | GUIDE | QW | |||
| 43 | 56184-PWR | 1 | BUFFER | QW | |||
| 44 | 56186-PWR | 1 | NOSE | QW | |||
| 45 | 56188-PWR | 2 | BOLT | QW | |||
| 46 | 56190-PWR | 1 | NOSE | QW | |||
| 47 | 56194-PWR | 1 | COVER | QW | |||
| 48 | 56368-PWR | 1 | SCREW KIT | QW | |||
| 49 | 56279-PWR | 1 | SCREW | QW | |||
| 50 | 56281-PWR | 1 | CAP | QW | |||
| 51 | DW56504 | 1 | LATCH | QW | |||
| 52 | 56285-PWR | 1 | SPRING COMPRESSION | QW | |||
| 53 | 56239-PWR | 1 | PROTECTOR | QW | |||
| 54 | 56299-PWR | 1 | COVER | QW | |||
| 55 | 56208-PWR | 1 | SCREW | QW | |||
| 56 | 56209-PWR | 1 | LEVER | QW | |||
| 57 | 56211-PWR | 1 | SPRING COMPRESSION | QW | |||
| 58 | 56201-PWR | 1 | COVER | QW | |||
| 59 | 56213-PWR | 1 | SWITCH | QW | |||
| 60 | 56212-PWR | 1 | LEVER | QW | |||
| 61 | DW56505 | 1 | RATING PLATE | QW | |||
| 62 | 56193-PWR | 1 | SHAFT | QW | |||
| 63 | 56331-PWR | 1 | SCREW | QW | |||
| 64 | 56312-PWR | 1 | MAGAZINE INTERFACE | QW | |||
| 66 | 56305-PWR | 1 | COVER | QW | |||
| 67 | 56326-PWR | 1 | SCREW | QW | |||
| 68 | 56324-PWR | 1 | NUT M5 | QW | |||
| 69 | 56185-PWR | 1 | O RING | QW | |||
| 70 | 56287-PWR | 1 | PIN | QW | |||
| 71 | 56224-PWR | 1 | SPRING COMPRESSION | QW | |||
| 72 | 56289-PWR | 1 | CAP | QW | |||
| 73 | 56222-PWR | 1 | LEVER | QW | |||
| 74 | 56230-PWR | 1 | SPRING TORSION | QW | |||
| 75 | 56293-PWR | 1 | MOUNT | QW | |||
| 76 | 56236-PWR | 1 | PIN | QW | |||
| 77 | 56297-PWR | 1 | VALVE | QW | |||
| 78 | 56200-PWR | 1 | SOLENOID ASSEMBLY | QW | |||
| 79 | 56251-PWR | 1 | PIN | QW | |||
| 80 | 56327-PWR | 1 | PIPE | QW | |||
| 81 | 56216-PWR | 1 | TRIGGER | QW | |||
| 82 | 56241-PWR | 1 | CONTROL SA | QW | |||
| 83 | 56515-PWR | 1 | COVER | QW | |||
| 84 | 56215-PWR | 1 | CONTACT PLATE | QW | |||
| 85 | 56204-PWR | 1 | CONNECTOR | QW | |||
| 86 | 56329-PWR | 1 | SPRING COMPRESSION | QW | |||
| 87 | 56181-PWR | 1 | SPACER | QW | |||
| 88 | 56183-PWR | 1 | SCREW | QW | |||
| 89 | 56352-PWR | 1 | FOOT SA | QW | |||
| 91 | 56353-PWR | 1 | FOLLOWER | QW | |||
| 92 | 56216-PWR | 1 | TRIGGER | QW | |||
| 93 | 56218-PWR | 1 | SPRING COMPRESSION | QW | |||
| 94 | 56226-PWR | 1 | SPRING TORSION | QW | |||
| 95 | 56248-PWR | 1 | SCREW | QW | |||
| 96 | 56253-PWR | 1 | LATCH | QW | |||
| 97 | 56220-PWR | 1 | TRIGGER | QW | |||
| 98 | 56238-PWR | 1 | CONNECTING WIRE | QW | |||
| 99 | 56363-PWR | 1 | LOCKING DEVICE | QW | |||
| 100 | 56249-PWR | 1 | HANDLE LH | QW | |||
| 101 | 56308-PWR | 1 | SCREW | QW | |||
| 102 | 56310-PWR | 1 | STOP | QW | |||
| 103 | DW56507 | 1 | BATTERY 6V - 1.5AH - 9WH | QW | |||
| 104 | 56247-PWR | 1 | HOOK | QW | |||
| 105 | DW56508 | 1 | COVER | QW | |||
| 106 | 56237-PWR | 1 | BAR LOCKING | QW | |||
| 107 | 56346-PWR | 1 | MAGAZINE SA | QW | |||
| 108 | 56393-PWR | 1 | LABEL | QW | |||
| 109 | 56124-PWR | 1 | LOCKING SCREW | QW | |||
| 110 | 56370-PWR | 1 | COVER | QW | |||
| 111 | DW56509 | 1 | CHARGER | Charger Base | QW | ||
| 129 | 1004772-39 | 1 | ADAPTOR SA | QW | |||
| 150 | DW56512 | 1 | CHARGER SA | QW | |||
| 861 | DW56514 | 1 | KITBOX | QW | |||
| 876 | 56516-PWR | 1 | RUBBER PAD | QW |
