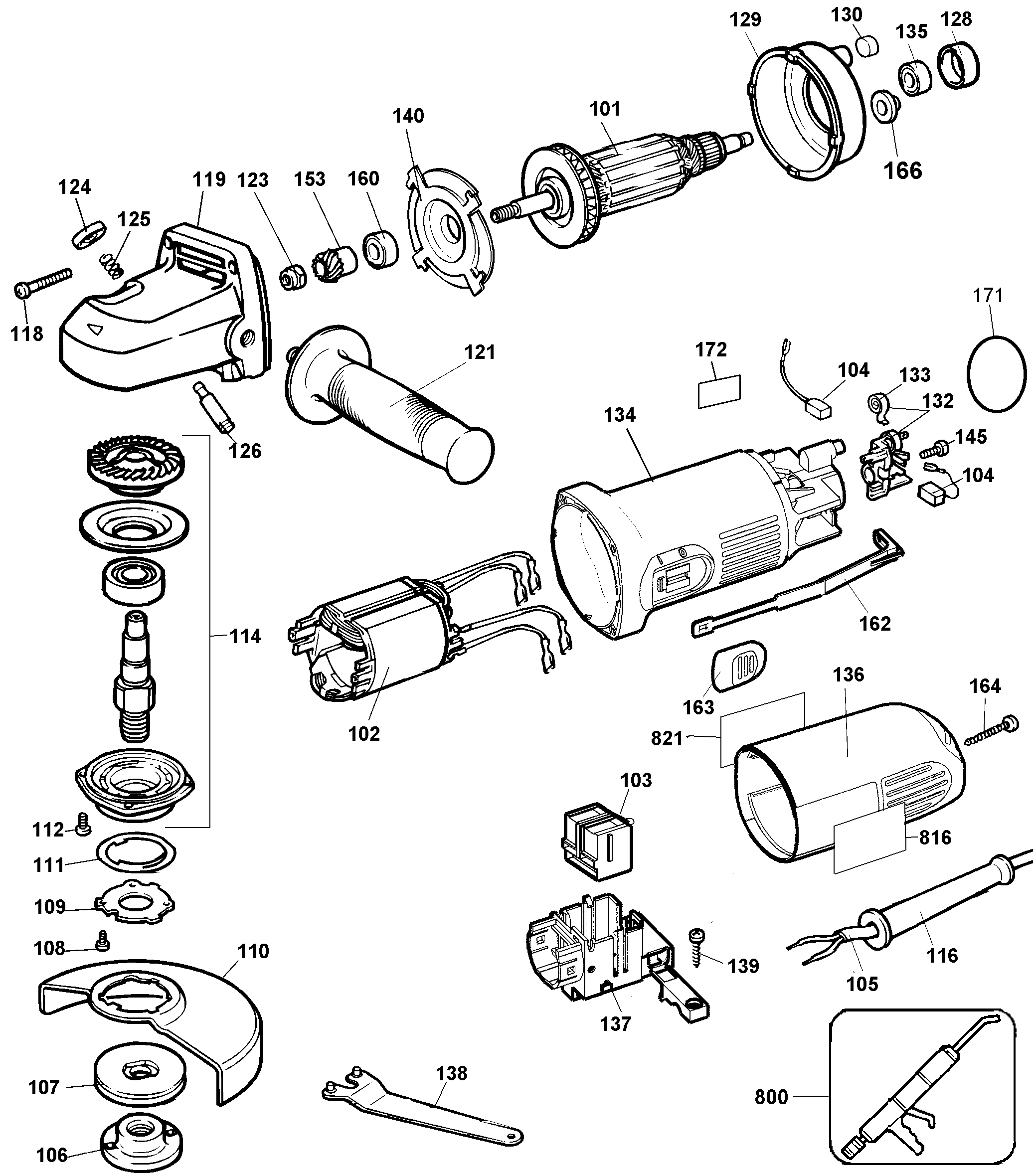

DW818 SMALL ANGLE GRINDER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 401702-10 | 1 | ARMATURE 230V | AR | |||
| 102 | 605527-00 | 1 | FIELD | AR | |||
| 103 | 945614-00 | 1 | SWITCH | AR | |||
| 104 | 939539-01 | 2 | BRUSH CUT OFF | AR | |||
| 105 | 330080-55 | 1 | CORD & PLUG | AR | |||
| 106 | 401678-05 | 1 | OUTER FLANGE | AR | |||
| 107 | 391969-00 | 1 | INNER FLANGE | AR | |||
| 108 | 562160-06 | 3 | SCREW | AR | |||
| 109 | 605415-00 | 1 | RETAINING PLATE | AR | |||
| 110 | 944685-00 | 1 | GUARD | AR | |||
| 111 | 393576-00 | 1 | RING | AR | |||
| 112 | 330045-46 | 4 | SCREW | AR | |||
| 114 | 945301-12 | 1 | SPINDLE ASSY | AR | |||
| 116 | 330005-01 | 1 | CORD PROTECTOR | AR | |||
| 118 | 562097-01 | 4 | SCREW | AR | |||
| 119 | 615073-00SV | 1 | GEAR CASE ASSY. | AR | |||
| 121 | 573115-00 | 1 | SIDE HANDLE | AR | |||
| 123 | 945292-00 | 1 | NUT | AR | |||
| 124 | 944575-00 | 1 | BUTTON | AR | |||
| 125 | 562210-00 | 1 | SPRING | AR | |||
| 126 | 944571-00 | 1 | SPINDLE LOCK | AR | |||
| 128 | 641823-00 | 1 | SLEEVE | AR | |||
| 129 | 401623-00 | 1 | BAFFLE | AR | |||
| 130 | 949638-01 | 2 | BUFFER | AR | |||
| 132 | 606574-01SV | 2 | BRUSH HOLDER | AR | |||
| 133 | 562204-00 | 2 | SPRING | AR | |||
| 134 | 395243-24SV | 1 | FIELD CASE ASSY | AR | |||
| 135 | 605040-02 | 1 | BEARING | AR | |||
| 136 | 613186-00 | 1 | END CAP | AR | |||
| 137 | 611540-00 | 1 | SUPPORT | AR | |||
| 138 | 401680-00 | 1 | WRENCH | AR | |||
| 139 | 562097-05 | 1 | SCREW | AR | |||
| 140 | 401622-01 | 1 | FLANGE | AR | |||
| 145 | 562097-00 | 2 | SCREW | AR | |||
| 153 | 562100-01 | 1 | PINION | 11T | AR | ||
| 160 | N110359 | 1 | BEARING | AR | |||
| 162 | 611737-01 | 1 | LINK | AR | |||
| 163 | 569624-01 | 1 | BUTTON | AR | |||
| 164 | 562097-13 | 1 | SCREW | AR | |||
| 166 | 398906-00 | 1 | SPACER INSULATING | AR | |||
| 171 | 393799-00 | 1 | O RING | AR | |||
| 172 | 396044-00 | 1 | WARNING LABEL | AR | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | AR | ||
| 816 | 946194-00 | 1 | BRAND LABEL | AR | |||
| 821 | 614831-00 | 1 | NAME PLATE | DW818-AR T4 | AR |
