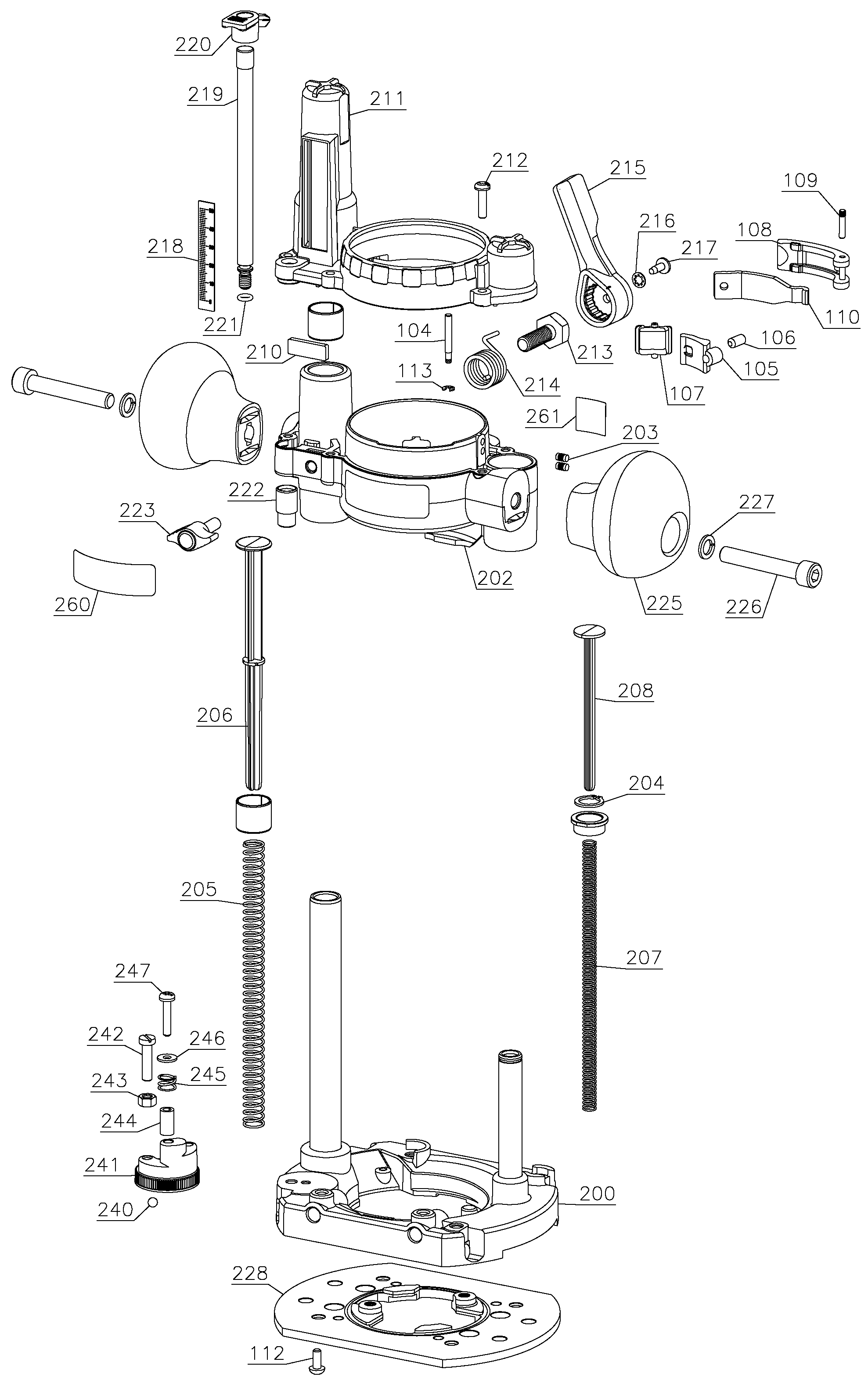

DWP611PK ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | A26126SV | 1 | MOTOR HOUSING SA | INCL. BEARING | INCL 50,51,52 | BR | |
| 2 | N074107 | 1 | LED LIGHT | BR | |||
| 3 | A26131 | 1 | INSERT | BR | |||
| 4 | N038183 | 1 | LOCK BUTTON | BR | |||
| 5 | A23489 | 1 | SPRING | BR | |||
| 6 | 330065-06 | 2 | SCREW | BR | |||
| 7 | A26132SV | 1 | ARMATURE & BRG | INCL. 53,54 | BR | ||
| 8 | A25248 | 1 | NUT | BR | |||
| 9 | A23498 | 1 | FIELD CASE | BR | |||
| 10 | 330065-07 | 1 | SCREW | BR | |||
| 11 | A27345 | 2 | BRUSH HOLDER 120V | INCL. 59 | BR | ||
| 12 | 330019-01 | 2 | SCREW | BR | |||
| 13 | N074106 | 1 | MODULE | V.S. | BR | ||
| 14 | N074104 | 1 | CONTROL MODULE SA | GACC 115-120V | BR | ||
| 15 | N191774 | 1 | CORD | Also order items 61,62 | BR | ||
| 16 | 329301-00 | 1 | CORD CLAMP | BR | |||
| 17 | 330019-02 | 2 | SCREW | BR | |||
| 18 | 887453 | 1 | SWITCH | BR | |||
| 19 | A29360 | 1 | SWITCH COVER | BR | |||
| 20 | N038242 | 1 | TOP CAP | V.S. | BR | ||
| 21 | A27330 | 1 | MAGNET | BR | |||
| 22 | 330045-09 | 2 | SCREW | BR | |||
| 23 | 330065-08 | 2 | SCREW | M4x18 T20 | BR | ||
| 24 | A24215SV | 1 | COLLET | W/NUT 1/4INCH | BR | ||
| 24 | A28462SV | 1 | COLLET | w/nut 8 mm | BR | ||
| 25 | N204073 | 1 | NAME PLATE | BR | |||
| 26 | N204472 | 1 | WARNING LABEL | BR | |||
| 50 | A26125 | 1 | INSERT | FAN END BEARING | BR | ||
| 51 | A27537 | 1 | BEARING | BR | |||
| 52 | A25250 | 1 | NUT LH | BR | |||
| 53 | N110359 | 1 | BEARING | BR | |||
| 54 | A25585 | 1 | INSULATOR | BR | |||
| 55 | A21119 | 1 | FIELD SA 115V | 120V | BR | ||
| 56 | A23504 | 1 | BAFFLE | BR | |||
| 57 | 949638-02 | 2 | DAMPER | BR | |||
| 58 | A27937 | 1 | WASHER | PRELOAD | BR | ||
| 59 | A27343 | 2 | BRUSH 120V | 120V | BR | ||
| 60 | 330005-01 | 1 | CORD PROTECTOR | BR | |||
| 61 | 445964-00 | 1 | TERMINAL | BR | |||
| 62 | 444262-00 | 1 | TERMINAL | CABLE CRIMP | BR | ||
| 65 | A27895 | 1 | WRENCH SPECIAL | BR | |||
| 100 | N032769SV | 1 | BASE SA | FIXED, D-SHAPE | BR | ||
| 102 | A28391 | 1 | SCALE | MICRO ADJUST | BR | ||
| 104 | A24452 | 2 | PIN | BR | |||
| 105 | A24764 | 2 | ADJUSTER | BR | |||
| 106 | 330022-18 | 2 | SCREW | BR | |||
| 107 | A24767 | 2 | PAD | BR | |||
| 108 | A24771 | 2 | CLAMPING BAR | BR | |||
| 109 | A24770 | 2 | PIN | BR | |||
| 110 | A27362 | 2 | SPRING | BR | |||
| 111 | A27941 | 1 | BASEPLATE | BR | |||
| 112 | N029178 | 8 | SCREW | BR | |||
| 113 | N028373 | 2 | RETAINER | BR | |||
| 114 | N693104 | 1 | ADJUSTER HEIGHT | BR | |||
| 115 | A28466 | 2 | IDENTITY LABEL | BR | |||
| 200 | N095607 | 1 | BASE SA | BR | |||
| 202 | N095608 | 1 | CARRIER SA | BR | |||
| 203 | N042079 | 4 | PIN | BR | |||
| 204 | 684179 | 1 | RING | BR | |||
| 205 | N037001 | 1 | SPRING | BR | |||
| 206 | N034346 | 1 | GUIDE | BR | |||
| 207 | A29112 | 1 | SPRING | BR | |||
| 208 | A29651 | 1 | GUIDE | BR | |||
| 210 | N027873 | 1 | PLATE | BR | |||
| 211 | N029880 | 1 | COVER | BR | |||
| 212 | 330045-06 | 5 | SCREW | BR | |||
| 213 | N029497 | 1 | BOLT | BR | |||
| 214 | N029508 | 1 | SPRING | BR | |||
| 215 | N027646 | 1 | LEVER | BR | |||
| 216 | 608298-00 | 1 | WASHER SPECIAL | BR | |||
| 217 | 324007-10 | 1 | SCREW | BR | |||
| 218 | N032095 | 1 | SCALE | BR | |||
| 219 | A28031 | 1 | ROD | BR | |||
| 220 | N031168 | 1 | ADJUSTER | BR | |||
| 221 | N027984 | 1 | O RING | BR | |||
| 222 | N027987 | 1 | ADJUSTER | BR | |||
| 223 | 608930-00 | 2 | SCREW | BR | |||
| 225 | 397560-00 | 2 | KNOB | BR | |||
| 226 | 607395-00 | 2 | SCREW | BR | |||
| 227 | 098197-09 | 2 | WASHER | BR | |||
| 228 | N029742 | 1 | BASEPLATE | BR | |||
| 240 | 652836-00 | 1 | BALL | BR | |||
| 241 | 326976-01 | 1 | TURRET | BR | |||
| 242 | 608928-00 | 1 | SCREW | BR | |||
| 243 | 330015-04 | 1 | NUT | BR | |||
| 244 | 652835-00 | 1 | SPACER | BR | |||
| 245 | 652834-00 | 1 | SPRING | BR | |||
| 246 | 653599-00 | 1 | WASHER | BR | |||
| 247 | 330045-07 | 1 | SCREW | BR | |||
| 260 | N029502 | 1 | BRAND LABEL | BR | |||
| 261 | N029503 | 1 | NAMEPLATE | BR | |||
| 861 | A28470 | 1 | KITBOX | BR |
