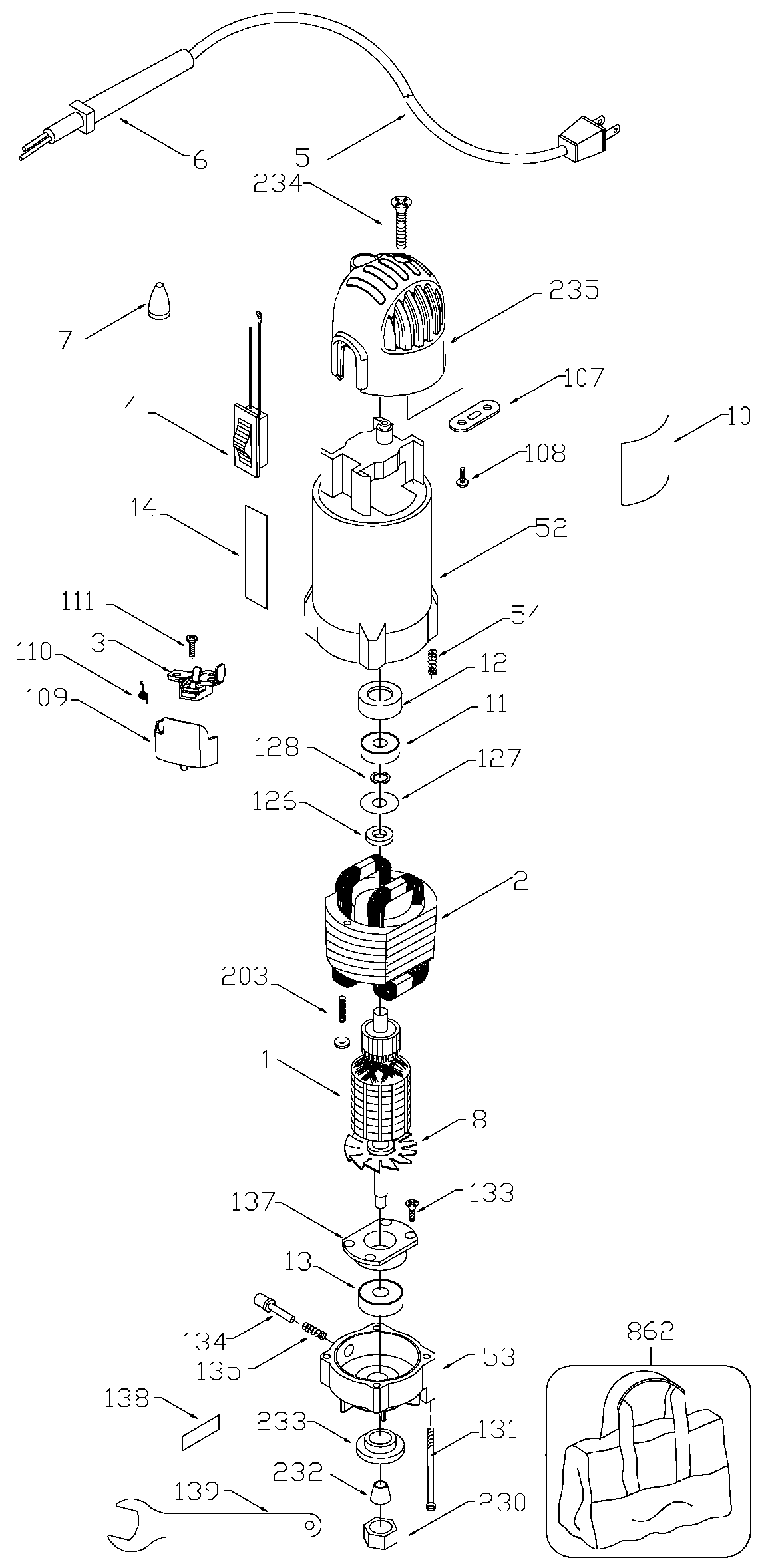

D26670 LAMINATE TRIMMER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	882248	1	ARMATURE 220V			B2
2	A20310SV	1	FIELD			B2
3	N031636	2	BRUSH ASSEMBLY	INCL. BR. HOLDER		B2
4	A18106	1	SWITCH			B2
5	330122-28	1	CORD SET			B2
6	810716	1	CORD PROTECTOR			B2
7	682063	2	CONNECTOR			B2
8	901706	1	FAN			B2
10	A18977	1	NAMEPLATE	D26670-B2 TY1		B2
11	330003-05	1	BEARING			B2
12	694432	1	HOLDER BEARING			B2
13	874538SV	1	BALL BEARING			B2
14	A18892	1	DEWALT LABEL			B2
52	A18660	1	MOTOR HSG.			B2
53	873678	1	FRONT HOUSING		INCL. 54	B2
54	874536	1	HELICOIL-1/4-20X3/8			B2
107	861434	1	CORD CLAMP			B2
108	882185	2	SCREW			B2
109	690740	2	BRUSH HOLDER BASE			B2
110	868775	2	BRUSH SPRING			B2
111	879298	2	SCREW	4-24 x 5/8		B2
126	698394	1	INSULATING TUBE			B2
127	695893	1	WASHER			B2
128	849328	1	SPRING			B2
131	694015	4	SCREW			B2
133	803157	4	SCREW			B2
134	698708	1	SPINDLE LOCK			B2
135	698709	1	SPRING			B2
137	874537	1	SWITCH			B2
139	683875	1	WRENCH OPEN END	ALTVEND-DJ		B2
203	695185	2	FIELD SCREW			B2
211	897161	1	KNOB			B2
212	A20069	1	BASE ASSY			B2
213	875497	1	SET-SCREW			B2
214	874017	1	THUMB SCREW			B2
215	893130	1	SUB BASE	SQUARE		B2
223	876676	1	SPRING			B2
224	859359	1	WASHER			B2
230	691257	1	NUT COLLET			B2
231	5140174-70	4	SCREW	8-32x5/16 PAN HD		B2
232	684718	1	COLLET		1/4	B2
233	849826	1	RETAINER			B2
234	872708	1	SCREW			B2
235	A18083	1	END CAP			B2
240	A19994	1	WARNING LABEL			B2
244	000000-00	1	NO LONGER AVAILABLE			B2
862	A19681	1	TOOL BAG		not included	B2
