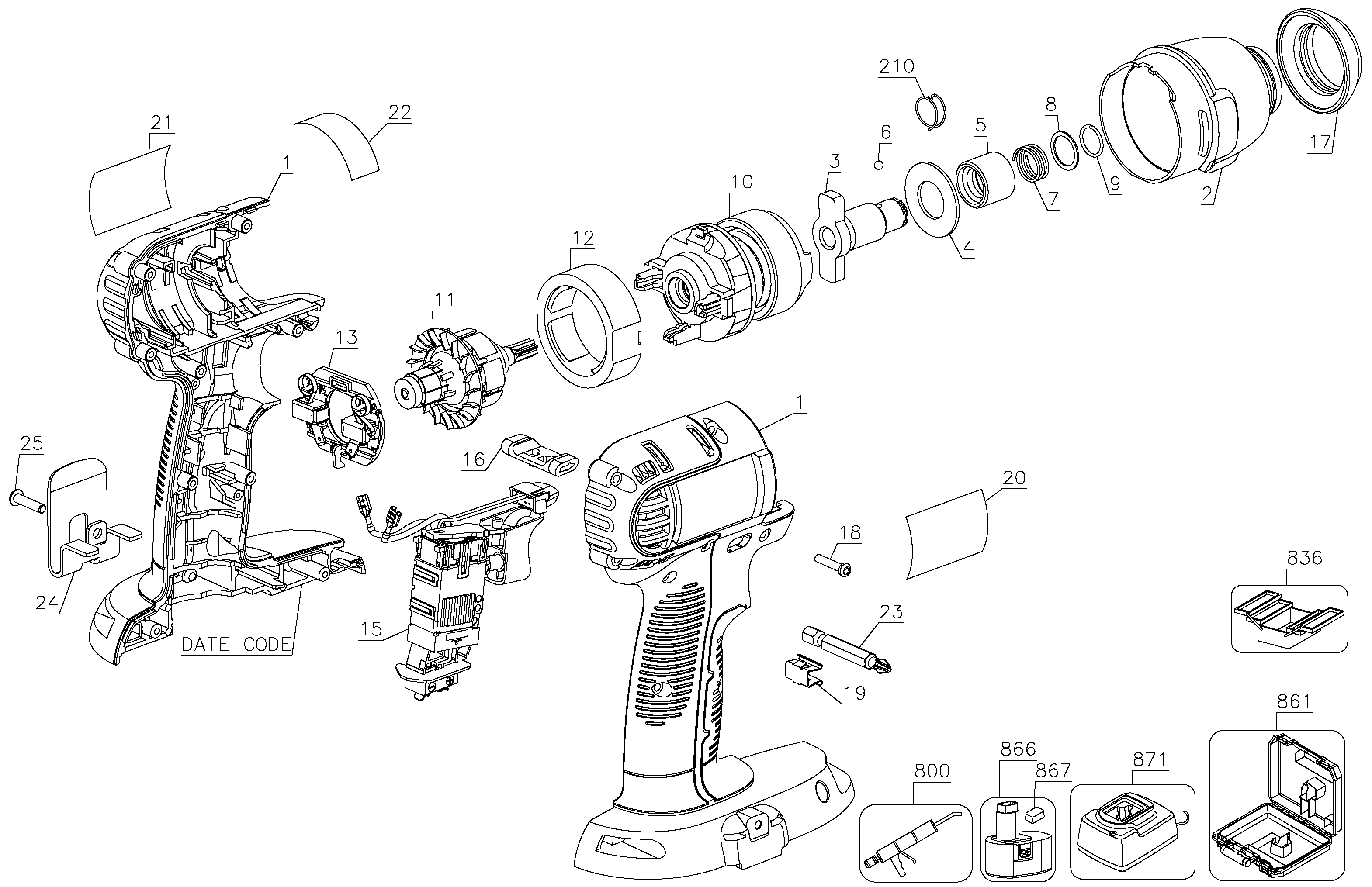

DC845KA IMPACT DRIVER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 658395-01 | 1 | CLAMSHELL SET | 12 V Ni-Cad | AR | ||
| 2 | 646693-00SV | 1 | NOSE RING | AR | |||
| 3 | N268388 | 1 | ANVIL ASSY | w/ Bit Eject Spring | AR | ||
| 3 | 642875-00 | 1 | ANVIL ASSEMBLY | AR | |||
| 4 | 642883-00 | 1 | WASHER | AR | |||
| 5 | N078437 | 1 | SLEEVE | AR | |||
| 5 | N078437 | 1 | SLEEVE | AR | |||
| 6 | N089668 | 1 | BALL STEEL | AR | |||
| 7 | 151359-00 | 1 | SPRING | AR | |||
| 7 | N019351 | 1 | SPRING | AR | |||
| 8 | N016823 | 1 | WASHER | AR | |||
| 8 | 617784-00 | 1 | WASHER | AR | |||
| 9 | N053863 | 1 | RING | AR | |||
| 9 | 610298-00 | 1 | LOCKING RING | AR | |||
| 10 | N118244SV | 1 | CLUTCH SA | AR | |||
| 11 | N378006 | 1 | ARMATURE SA | 12V | AR | ||
| 12 | N211574 | 1 | MAGNET | KIT | AR | ||
| 13 | N093746 | 1 | BRUSH HOLDER SA | BLACK W/O PCB | AR | ||
| 15 | N019949 | 1 | SWITCH | 9.6-12 Volt | AR | ||
| 16 | 659201-00 | 1 | REVERSER | AR | |||
| 17 | 642886-00 | 1 | NOSE RING | Rubber | AR | ||
| 18 | 682211-00 | 9 | SCREW | AR | |||
| 19 | 148354-03 | 1 | HOLDER | AR | |||
| 20 | N124286 | 1 | NAME PLATE | DC845-AR TY.3 | AR | ||
| 21 | 646763-00 | 1 | BRAND LABEL | AR | |||
| 22 | 650677-00 | 1 | WARNING LABEL (SPA) | AR | |||
| 23 | 607906-22 | 1 | BIT PHILLIPS | Phillips #2 | AR | ||
| 24 | 659916-00SV | 1 | CLIP | not supplied | AR | ||
| 25 | 330013-03 | 1 | SCREW | AR | |||
| 210 | N078434 | 1 | SPRING | AR | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | AR | ||
| 800 | 284778-00 | 1 | GREASE | MOLYKOTE G68 | AR | ||
| 836 | 233945-00 | 1 | SERVICE TOOL | AR | |||
| 861 | 652211-00 | 1 | KITBOX | AR | |||
| 861 | 380865-02 | 1 | HANDLE FRAME KIT | AR | |||
| 861 | 637475-00 | 2 | LATCH ASSEMBLY | AR | |||
| 866 | DC9071 | 2 | BATTERY 12V - 2.4AH | Ni-Cad | AR | ||
| 867 | 645221-00 | 1 | CAP | AR | |||
| 871 | DW9116-AR | 1 | CHARGER | AR |
