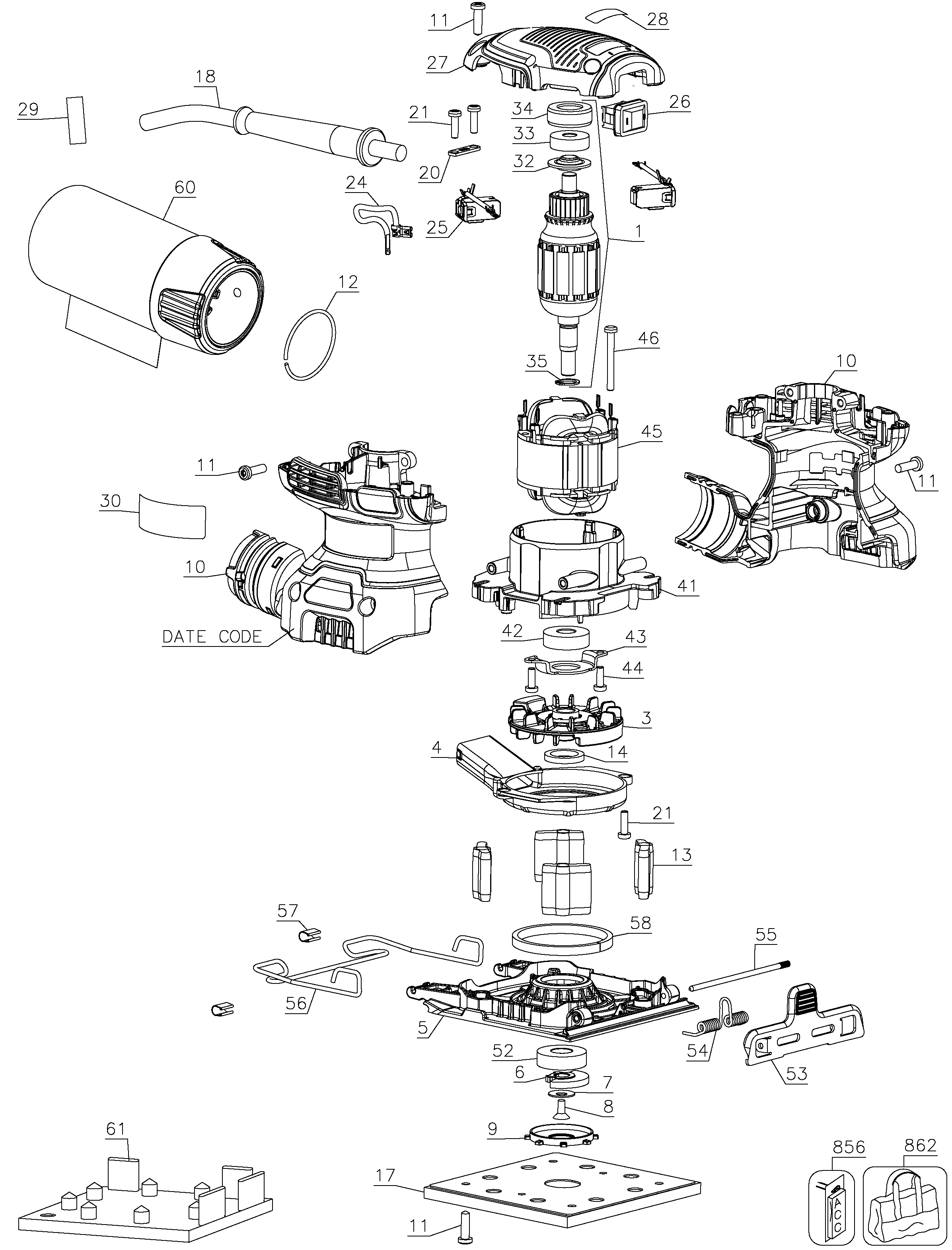

DWE6411 1/4 SHEET ORBITAL SANDER Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N457029 | 1 | ARMATURE ASSEMBLY | BR | |||
| 3 | N381997 | 1 | FAN | BR | |||
| 4 | N413312 | 1 | BAFFLE SA | BR | |||
| 5 | N346319 | 1 | BASE | BR | |||
| 6 | N360702 | 1 | COUNTERWEIGHT | BR | |||
| 7 | N345099 | 1 | WASHER | BR | |||
| 8 | 098012-11 | 1 | SCREW | BR | |||
| 9 | N402677 | 1 | END CAP | BR | |||
| 10 | N394565 | 1 | CLAMSHELL SET | BR | |||
| 11 | 330019-12 | 14 | SCREW | BR | |||
| 12 | N377182 | 1 | LOCKING RING | BR | |||
| 13 | N472412 | 4 | LEG | Pckgd N389235 | BR | ||
| 14 | N416160 | 1 | SEAL | FAN | BR | ||
| 17 | N442697 | 1 | PAD SA | Pkgd N362819 | BR | ||
| 18 | N470466 | 1 | POWER CORD | BR | |||
| 20 | 329301-00 | 1 | CORD CLAMP | BR | |||
| 21 | 330019-02 | 4 | SCREW | BR | |||
| 24 | N372307 | 1 | LEADWIRE | BLACK | BR | ||
| 25 | N292059 | 2 | BRUSH & HOLDER 115V | 120V | BR | ||
| 26 | 656494-00 | 1 | SWITCH | BR | |||
| 27 | N388154-01 | 1 | CAP | SHORT | BR | ||
| 28 | N397366 | 1 | LABEL | PERFORM/PROTECT | BR | ||
| 29 | N283361 | 1 | WARNING LABEL | Cord Wrap | BR | ||
| 30 | N457337 | 1 | RATING LABEL | DWE6411-BR TY10 | BR | ||
| 32 | N336059 | 1 | WASHER | COMM END | BR | ||
| 33 | 605040-05 | 1 | BEARING | BR | |||
| 34 | N136311 | 1 | RUBBER BOOT | BR | |||
| 35 | 444793-00 | 1 | CIRCLIP | BR | |||
| 41 | N388152 | 1 | MOUNT | BR | |||
| 42 | 330003-17 | 1 | BEARING | BR | |||
| 43 | N388153 | 1 | BEARING HOLDER | BR | |||
| 44 | 330019-02 | 2 | SCREW | BR | |||
| 45 | N457035 | 1 | FIELD | BR | |||
| 46 | 330019-08 | 2 | SCREW | BR | |||
| 52 | 330003-64 | 1 | BEARING | BR | |||
| 53 | N464703 | 1 | CLAMP | FRONT Pck'd N415395 | Front | BR | |
| 54 | N360481 | 1 | SPRING | BR | |||
| 55 | N396569 | 1 | PIN | BR | |||
| 56 | N366359 | 1 | CLAMP | BR | |||
| 57 | N369879 | 2 | CLIP | BR | |||
| 58 | N372479 | 1 | SEAL | PLATEN | BR | ||
| 60 | N409756 | 1 | DUST BAG ASSY | L.A. | BR | ||
| 61 | 144954-00 | 1 | PUNCH | BR | |||
| 856 | DWV9000 | 1 | UNIVERSAL CONNECTOR | ACCESSORY | TO ATTACH DUST PORT TO OTHER VACS WITH 1 ¼IN HOSE | BR | |
| 862 | N294699 | 1 | BAG | Optional | BR |
