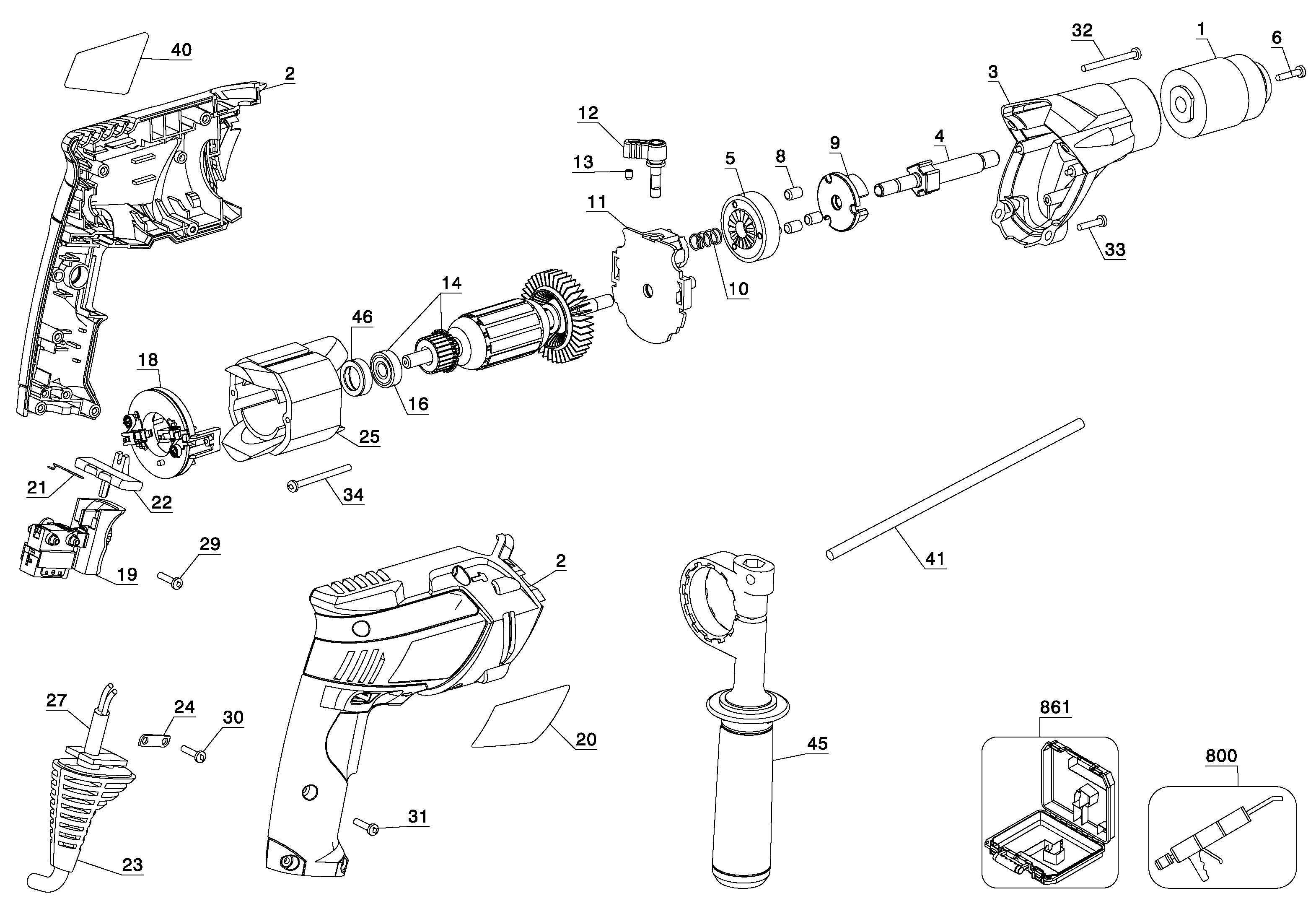

KR750 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 629530-01L | 1 | CHUCK KEYLESS | B2 | |||
| 2 | 490560-00 | 1 | CLAMSHELL | B2 | |||
| 3 | 490559-00SV | 1 | GEARCASE & BRG. | B2 | |||
| 4 | 488643-00SV | 1 | SPINDLE ASSY | B2 | |||
| 5 | 488642-00 | 1 | GEAR | B2 | |||
| 6 | 90552945 | 1 | SCREW.SPECIAL | B2 | |||
| 8 | 478752-00 | 1 | ROLLER | B2 | |||
| 9 | 478748-00 | 1 | CARRIER | B2 | |||
| 10 | 491055-00 | 1 | SPRING | B2 | |||
| 11 | 488624-00SV | 1 | BEARING HOUSING | B2 | |||
| 12 | 490715-00SV | 1 | SHIFTER ASSY | B2 | |||
| 13 | 326467-00 | 1 | DETENT | B2 | |||
| 14 | 645700-01 | 1 | ARMATURE | 230V | B2 | ||
| 16 | 606290-01 | 1 | BEARING | Replacement bearing mandates item 46 must be used. | B2 | ||
| 18 | 90525184 | 1 | BRUSH HOLDER SA | B2 | |||
| 19 | 90541944 | 1 | SWITCH SA | B2 | |||
| 20 | 90533293 | 1 | NAME PLATE | B2 | |||
| 21 | 629167-00 | 1 | SPRING | B2 | |||
| 22 | 629168-00 | 1 | LEVER | B2 | |||
| 23 | 635395-00 | 1 | CORD PROTECTOR | B2 | |||
| 24 | 329301-00 | 1 | CORD CLAMP | B2 | |||
| 25 | 645699-01 | 1 | FIELD SA | 230V | B2 | ||
| 27 | 330122-30 | 1 | CORDSET | B2 | |||
| 29 | 911026-00 | 2 | SCREW | B2 | |||
| 30 | 330019-38 | 2 | SCREW | B2 | |||
| 31 | 330019-04 | 6 | SCREW | B2 | |||
| 32 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | B2 | ||
| 33 | 330019-32 | 2 | SCREW | B2 | |||
| 34 | 330019-63 | 2 | SCREW | B2 | |||
| 40 | 493395-00 | 1 | LABEL | B2 | |||
| 41 | 580787-00 | 1 | DEPTH STOP | B2 | |||
| 45 | 939794-02 | 1 | HANDLE SIDE SA | B2 | |||
| 46 | 635176-00 | 1 | SLEEVE | B2 | |||
| 800 | 870889-02 | 1 | GREASE | B2 | |||
| 861 | 615390-00N | 1 | KIT BOX | not included with unit | B2 |
