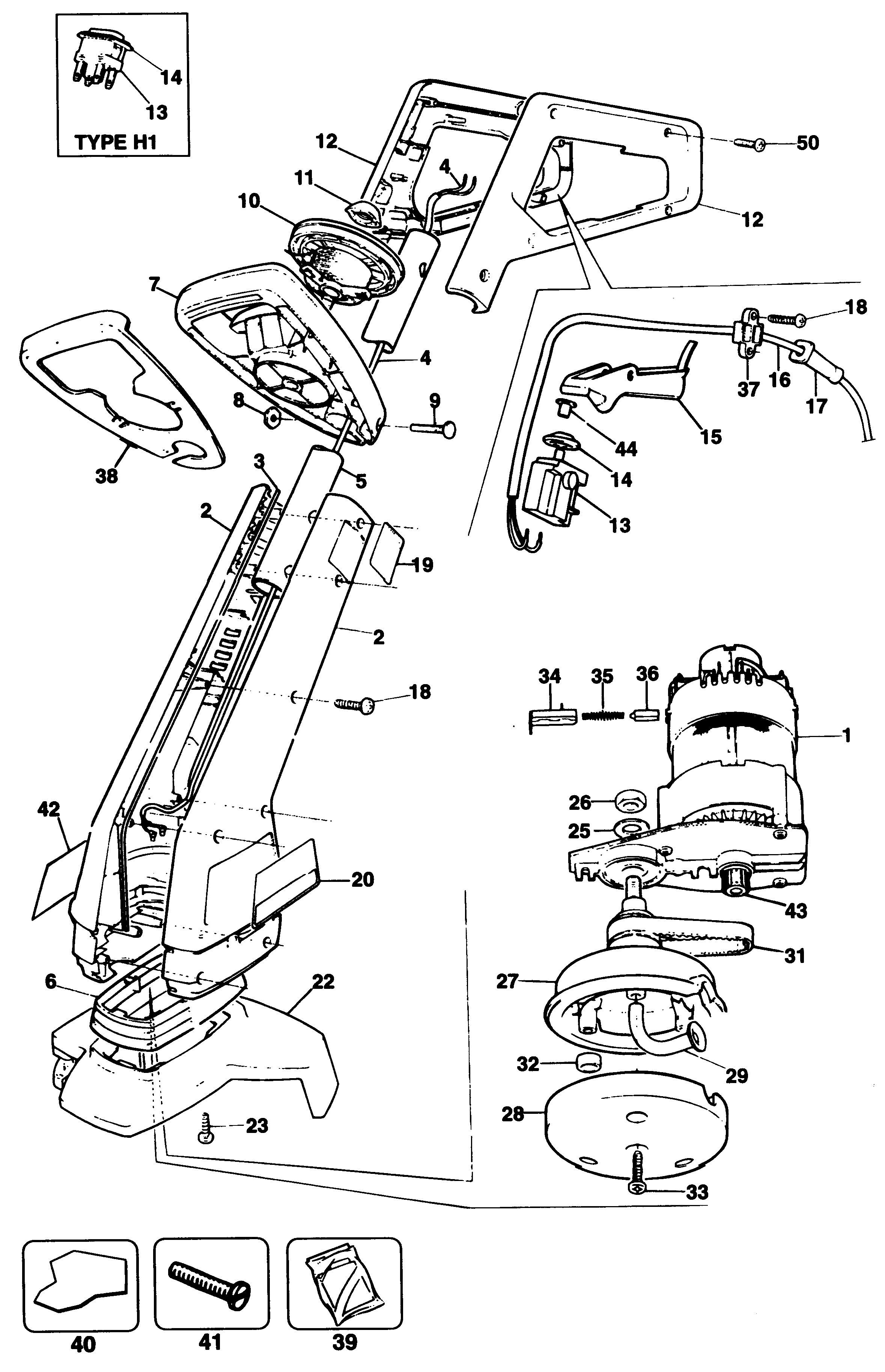

GL620 STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 745858 | 1 | CLAMSHELL | CH | |||
| 3 | 821244 | 1 | TUBE | CH | |||
| 4 | 749413 | 1 | CABLE SA | H1B | CH | ||
| 4 | 749413 | 1 | CABLE SA | H1A | CH | ||
| 5 | 745859 | 1 | HANDLE TUBE | CH | |||
| 6 | 821199 | 1 | COLLAR | CH | |||
| 8 | 930243 | 1 | NUT | CH | |||
| 9 | 817213 | 1 | SCREW | CH | |||
| 10 | 746008 | 1 | SPOOL SA | CH | |||
| 11 | 821228 | 1 | NUT | CH | |||
| 12 | 809648 | 1 | HANDLE SWITCH | H1B | CH | ||
| 12 | 809648 | 1 | HANDLE SWITCH | H1A | CH | ||
| 13 | 748013 | 1 | SWITCH | H1A | CH | ||
| 13 | 795775 | 1 | SWITCH | H1B | CH | ||
| 14 | 851901 | 1 | SEAL | H1B | CH | ||
| 14 | 851901 | 1 | SEAL | H1A | CH | ||
| 14 | 845016 | 1 | FRAME | CH | |||
| 15 | 798117 | 1 | LEVER | CH | |||
| 16 | 745920 | 1 | CORDSET | CH | |||
| 17 | 890184 | 1 | CORD PROTECTOR | CH | |||
| 17 | 770235 | 1 | PROTECTOR | H1B | CH | ||
| 17 | 770235 | 1 | PROTECTOR | H1A | CH | ||
| 18 | 747329 | 14 | SCREW | CH | |||
| 20 | 745976 | 1 | WARNING LABEL | CH | |||
| 22 | 745948 | 1 | GUARD 10" | CH | |||
| 23 | 823143 | 1 | SCREW | CH | |||
| 25 | 723589 | 1 | WASHER | CH | |||
| 26 | 723627 | 1 | LOCK NUT | CH | |||
| 29 | 828996 | 1 | FLARED ELBOW | CH | |||
| 31 | 827855 | 1 | BELT | CH | |||
| 32 | 747319 | 1 | BALANCE WEIGHT | CH | |||
| 33 | 849256 | 3 | SCREW | CH | |||
| 34 | 812738 | 2 | BRUSH HOLDER | CH | |||
| 35 | 847709 | 2 | SPRING | CH | |||
| 36 | 376143 | 2 | BRUSH | CH | |||
| 37 | 994808 | 1 | CABLE CLAMP | CH | |||
| 38 | 745960 | 1 | PLATE | CH | |||
| 40 | 821255 | 1 | WIRE SKID | PARTS NOT DRAWN | CH | ||
| 41 | 814709 | 2 | SCREW | CH | |||
| 44 | 747949 | 1 | ACTUATOR | H1B | CH | ||
| 44 | 747949 | 1 | ACTUATOR | H1A | CH |
