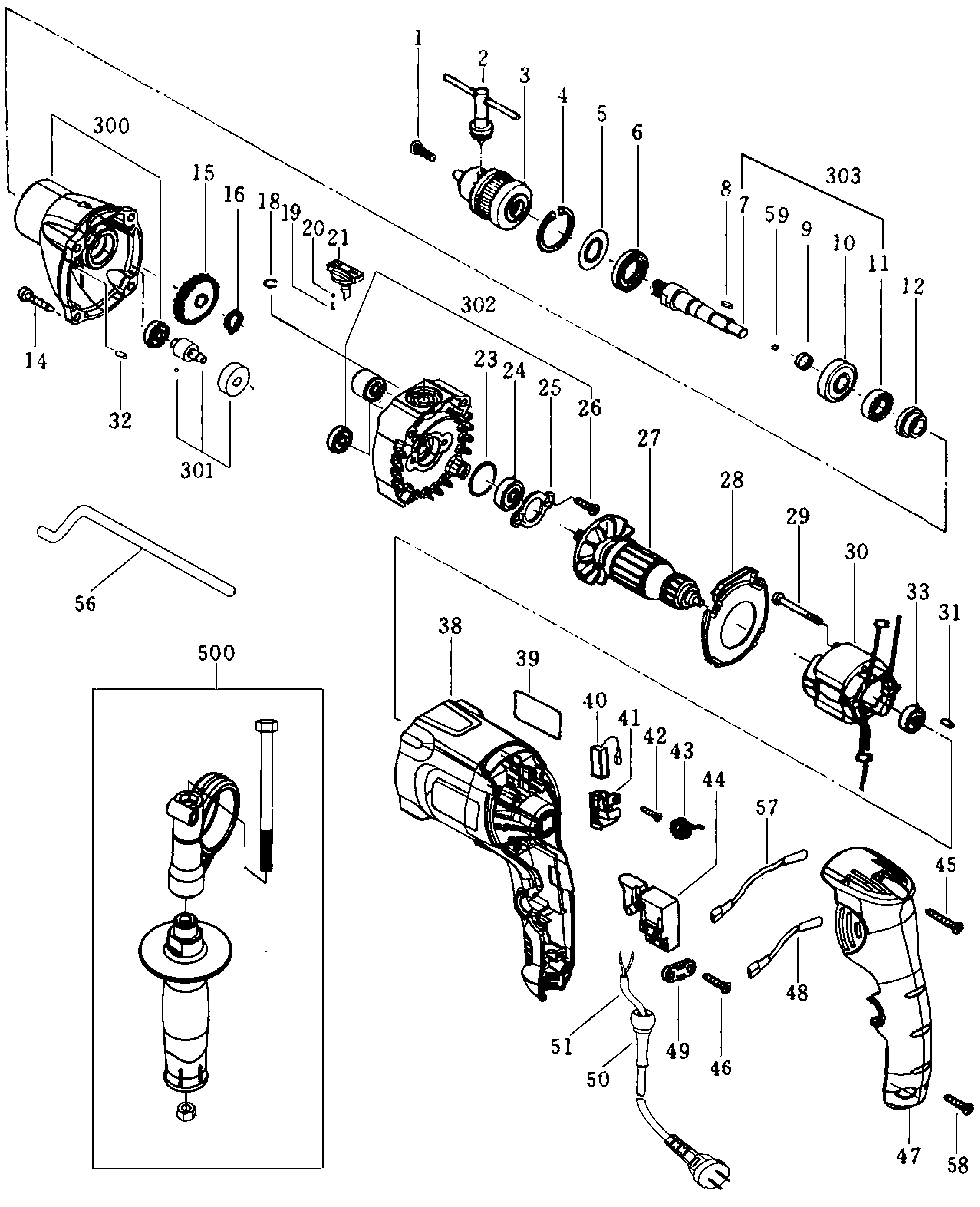

STDH8013 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140165-77 | 1 | SCREW | BR | |||
| 2 | 5140165-78 | 1 | CHUCK KEY | BR | |||
| 3 | 5140165-79 | 1 | CHUCK | BR | |||
| 4 | 5140164-89 | 2 | CIRCLIP | BR | |||
| 5 | 5140165-80 | 1 | WASHER | BR | |||
| 6 | 5140165-81 | 1 | FELT WASHER | BR | |||
| 7 | 5140165-82 | 1 | SPINDLE | BR | |||
| 8 | 5140165-83 | 1 | FLAT KEY | BR | |||
| 9 | 5140165-84 | 1 | SPRING | BR | |||
| 10 | 5140165-85 | 1 | BEARING | BR | |||
| 11 | 5140165-86 | 1 | IMPACT BLOCK | BR | |||
| 12 | 5140165-87 | 1 | IMPACT BLOCK | BR | |||
| 14 | 5140165-88 | 4 | SELF TAPPING SCREW | BR | |||
| 15 | 5140165-89 | 1 | GEAR | BR | |||
| 16 | 5140165-90 | 1 | RETAINING RING | BR | |||
| 18 | 5140165-91 | 1 | C RING | BR | |||
| 19 | 5140165-92 | 2 | SPRING | BR | |||
| 20 | 5140165-93 | 1 | BALL | BR | |||
| 21 | 5140165-94 | 1 | BUTTON ACTUATOR | BR | |||
| 23 | 5140165-95 | 1 | O-RING | BR | |||
| 24 | 5140165-96 | 1 | BEARING | BR | |||
| 25 | 5140165-97 | 1 | RETAINER | BR | |||
| 26 | 5140171-99 | 2 | MACHINE SCREW | BR | |||
| 27 | 5140165-99 | 1 | ARMATURE | BR | |||
| 28 | 5140166-01 | 1 | AIR DEFLECTOR | BR | |||
| 29 | 5140166-02 | 2 | SELF TAPPING SCREW | BR | |||
| 30 | 5140166-03 | 1 | FIELD | BR | |||
| 31 | 5140156-00 | 1 | PIN | BR | |||
| 32 | 5140166-05 | 1 | PIN | BR | |||
| 33 | 5140155-93 | 1 | BEARING | BR | |||
| 38 | 5140172-00 | 1 | FIELD CASE | BR | |||
| 39 | 5140166-08 | 1 | NAME PLATE | BR | |||
| 40 | 5140166-11 | 1 | BRUSH | BR | |||
| 41 | 5140166-13 | 1 | BRUSH HOLDER | BR | |||
| 42 | 5140165-18 | 4 | SCREW | BR | |||
| 43 | 5140166-14 | 1 | BRUSH SPRING | BR | |||
| 44 | 5140166-15 | 1 | SWITCH | BR | |||
| 45 | 5140166-17 | 1 | SELF TAPPING SCREW | BR | |||
| 46 | 5140155-81 | 2 | SCREW | BR | |||
| 47 | 5140166-18 | 1 | HANDLE COVER | BR | |||
| 48 | 5140166-19 | 1 | LEADWIRE | BR | |||
| 49 | 5140166-21 | 1 | CORD CLAMP | BR | |||
| 50 | 5140166-22 | 1 | CORD PROTECTOR | BR | |||
| 51 | 5140166-25 | 1 | CORD | BR | |||
| 56 | 5140166-26 | 1 | DEPTH ROD | BR | |||
| 57 | 5140166-27 | 1 | LEADWIRE | BR | |||
| 58 | 5140166-29 | 2 | SELF TAPPING SCREW | BR | |||
| 59 | 5140166-30 | 1 | BALL | BR | |||
| 300 | 5140166-31 | 1 | GEARCASE ASSY | BR | |||
| 301 | 5140166-32 | 1 | SPINDLE & GEAR ASSY. | BR | |||
| 302 | 5140166-33 | 1 | PLATE ASSY. | BR | |||
| 303 | 5140166-34 | 1 | SPINDLE ASSY. | BR | |||
| 500 | 5140166-35 | 1 | SIDE HANDLE | BR |
