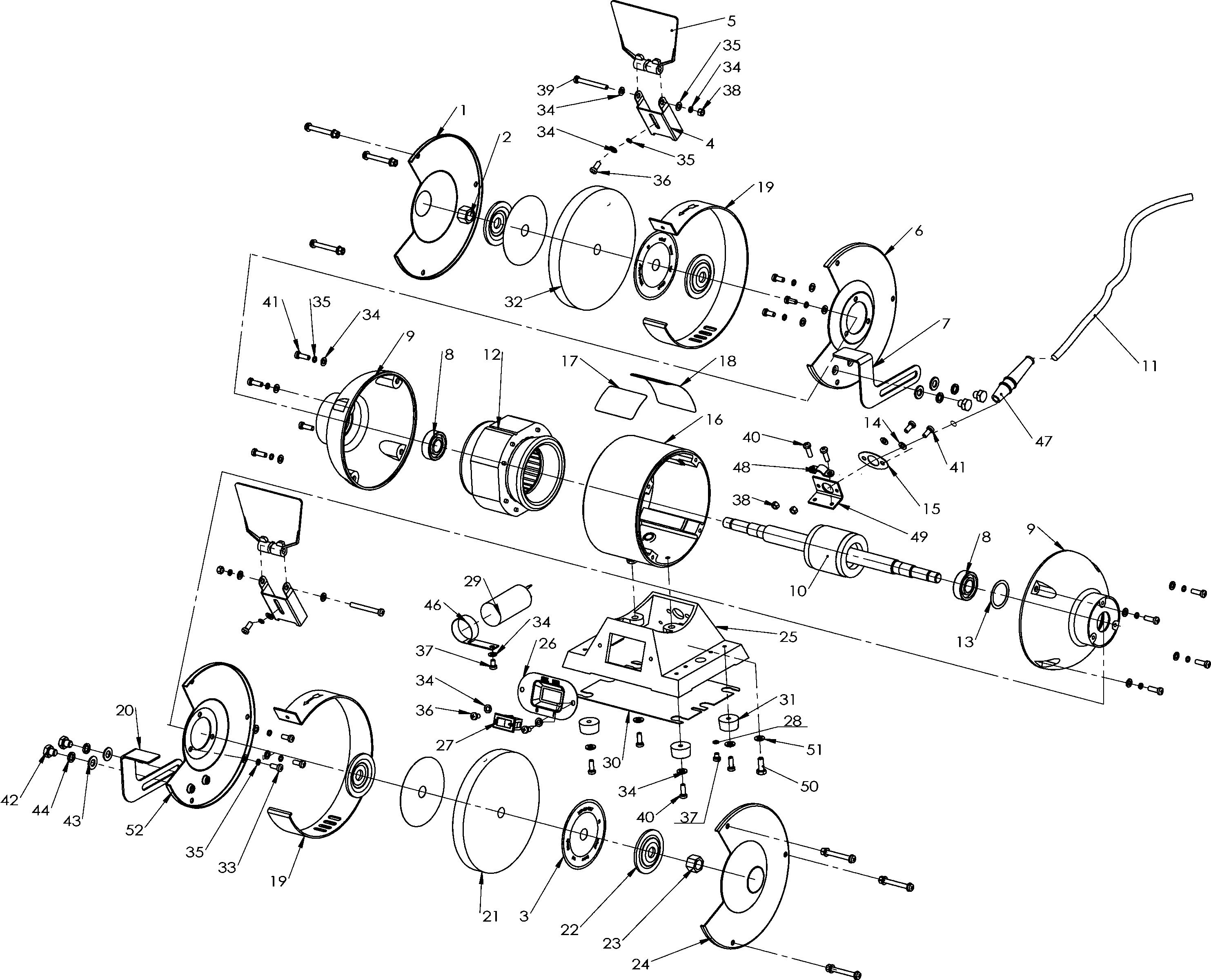

STGB3715 BENCH GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	5140167-99	1	WHEEL GUARD		AR
2	5140168-00	1	NUT		AR
3	5140168-01	2	DISC WHEEL		AR
4	5140168-02	2	BRACKET		AR
5	5140168-03	2	EYE SHIELD		AR
6	5140168-04	1	INNER COVER		AR
7	5140168-05	1	TOOL REST		AR
8	5140013-68	2	BEARING,BALL		AR
9	5140168-07	2	BEARING HOUSING		AR
10	5140168-09	1	ROTOR		AR
11	5140168-14	1	CORD SET		AR
12	5140168-17	1	STATOR		AR
13	5140168-19	1	WASHER		AR
14	5140168-20	1	STRAIN RELIEF		AR
15	5140168-21	1	MOUNTING PLATE		AR
16	5140168-22	1	MOTOR HOUSING		AR
17	5140168-23	1	ID LABEL		AR
18	5140168-24	1	RATING LABEL		AR
19	5140168-25	2	WHEEL COVER		AR
20	5140168-26	1	TOOL REST		AR
21	5140168-27	1	GRINDING WHEEL		AR
22	5140168-29	1	WHEEL FLANGE		AR
23	5140168-30	1	NUT		AR
24	5140168-31	1	WHEEL GUARD		AR
25	5140168-32	1	BASE		AR
26	5140168-33	1	SWITCH COVER		AR
27	5140240-53	1	VOLTAGE SWITCH	Voltage selector switch	AR
27	5140168-35	1	SWITCH		AR
28	5140168-36	1	WASHER		AR
29	5140168-37	1	CAPACITOR		AR
30	5140168-39	1	BASE PLATE		AR
31	5140168-40	4	RUBBER FOOT		AR
32	5140168-41	1	GRINDING WHEEL		AR
33	5140168-42	10	SCREW		AR
34	5140168-43	31	FLAT WASHER		AR
35	5140168-44	14	SPRING WASHER		AR
36	5140168-45	4	SCREW		AR
37	5140168-46	1	SCREW		AR
38	5140168-47	10	NUT		AR
39	5140168-48	6	SCREW		AR
40	5140168-49	1	SCREW		AR
41	5140168-50	1	SCREW		AR
42	5140168-51	1	HEX BOLT		AR
43	5140168-52	1	FLAT WASHER		AR
44	5140168-53	1	HEX BOLT		AR
46	5140168-54	1	CAPACITOR BRACKET		AR
47	5140168-55	1	CORD PROTECTOR		AR
48	5140168-56	1	CORD CLAMP		AR
49	5140168-57	1	CLAMP PLATE		AR
50	5140168-58	2	HEX BOLT		AR
51	5140168-59	2	WASHER		AR
52	5140168-60	1	INNER COVER		AR
