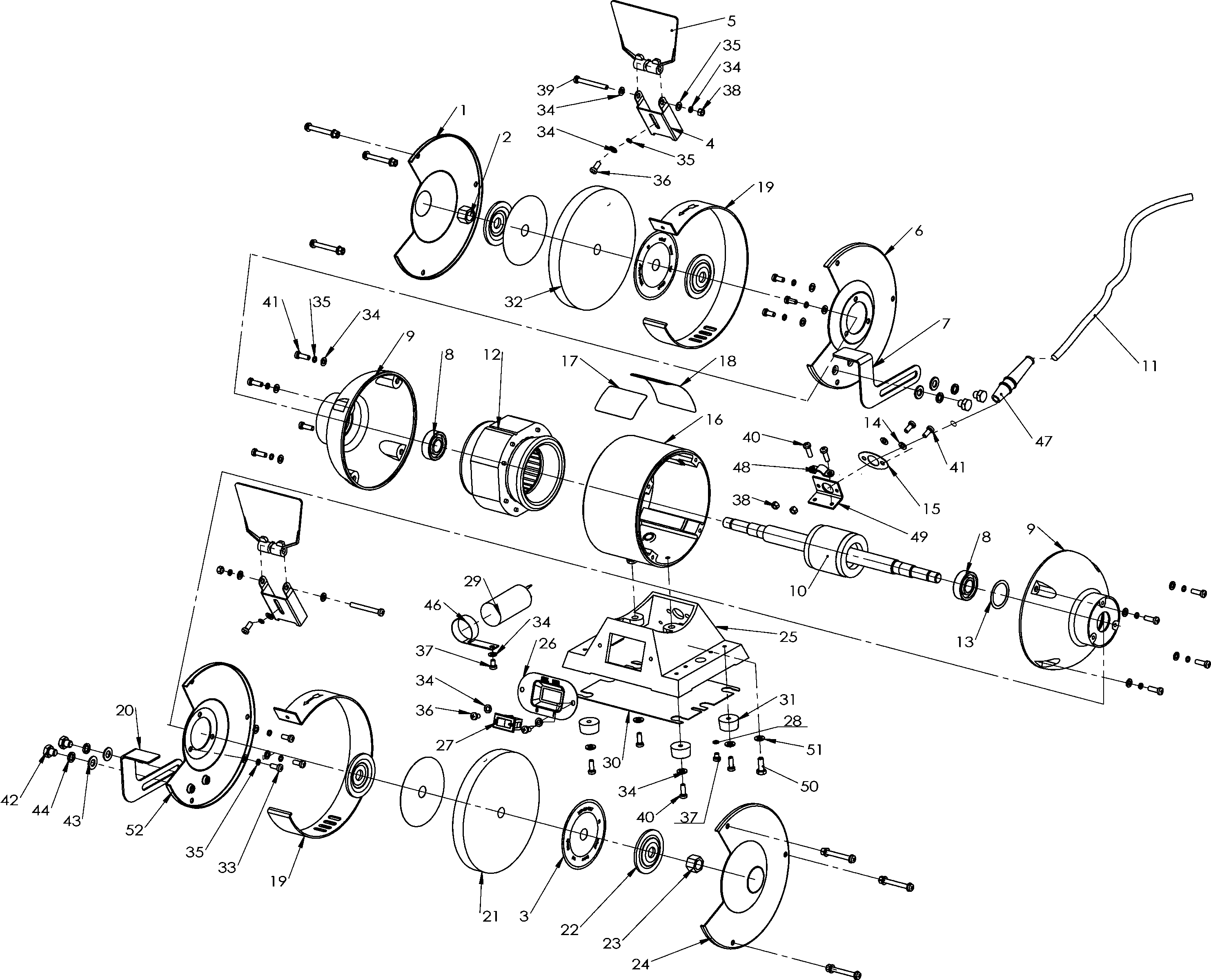

STGB3715 BENCH GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	5140167-99	1	WHEEL GUARD		B2
2	5140168-00	1	NUT		B2
3	5140168-01	2	DISC WHEEL		B2
6	5140168-04	1	INNER COVER		B2
7	5140168-05	1	TOOL REST		B2
8	5140013-68	2	BEARING,BALL		B2
9	5140168-07	2	BEARING HOUSING		B2
10	5140168-08	1	ROTOR		B2
11	5140168-12	1	CORD SET		B2
12	5140168-15	1	STATOR		B2
13	5140168-19	1	WASHER		B2
14	5140168-20	1	STRAIN RELIEF		B2
15	5140168-21	1	MOUNTING PLATE		B2
16	5140168-22	1	MOTOR HOUSING		B2
17	5140168-23	1	ID LABEL		B2
18	5140168-24	1	RATING LABEL		B2
19	5140168-25	2	WHEEL COVER		B2
20	5140168-26	1	TOOL REST		B2
21	5140168-27	1	GRINDING WHEEL		B2
22	5140168-28	2	WHEEL FLANGE		B2
23	5140168-30	1	NUT		B2
24	5140168-31	1	WHEEL GUARD		B2
25	5140168-32	1	BASE		B2
26	5140168-33	1	SWITCH COVER		B2
27	5140240-53	1	VOLTAGE SWITCH	Voltage selector switch	B2
27	5140168-34	1	SWITCH		B2
28	5140168-36	1	WASHER		B2
29	5140168-37	1	CAPACITOR		B2
30	5140168-39	1	BASE PLATE		B2
31	5140168-40	4	RUBBER FOOT		B2
32	5140168-41	1	GRINDING WHEEL		B2
33	5140168-42	10	SCREW		B2
34	5140168-43	31	FLAT WASHER		B2
35	5140168-44	14	SPRING WASHER		B2
36	5140168-45	4	SCREW		B2
37	5140168-46	1	SCREW		B2
38	5140168-47	10	NUT		B2
39	5140168-48	6	SCREW		B2
40	5140168-49	1	SCREW		B2
41	5140168-50	1	SCREW		B2
42	5140168-51	1	HEX BOLT		B2
43	5140168-52	1	FLAT WASHER		B2
44	5140168-53	1	HEX BOLT		B2
46	5140168-54	1	CAPACITOR BRACKET		B2
47	5140168-55	1	CORD PROTECTOR		B2
48	5140168-56	1	CORD CLAMP		B2
49	5140168-57	1	CLAMP PLATE		B2
50	5140168-58	2	HEX BOLT		B2
51	5140168-59	2	WASHER		B2
52	5140168-60	1	INNER COVER		B2
