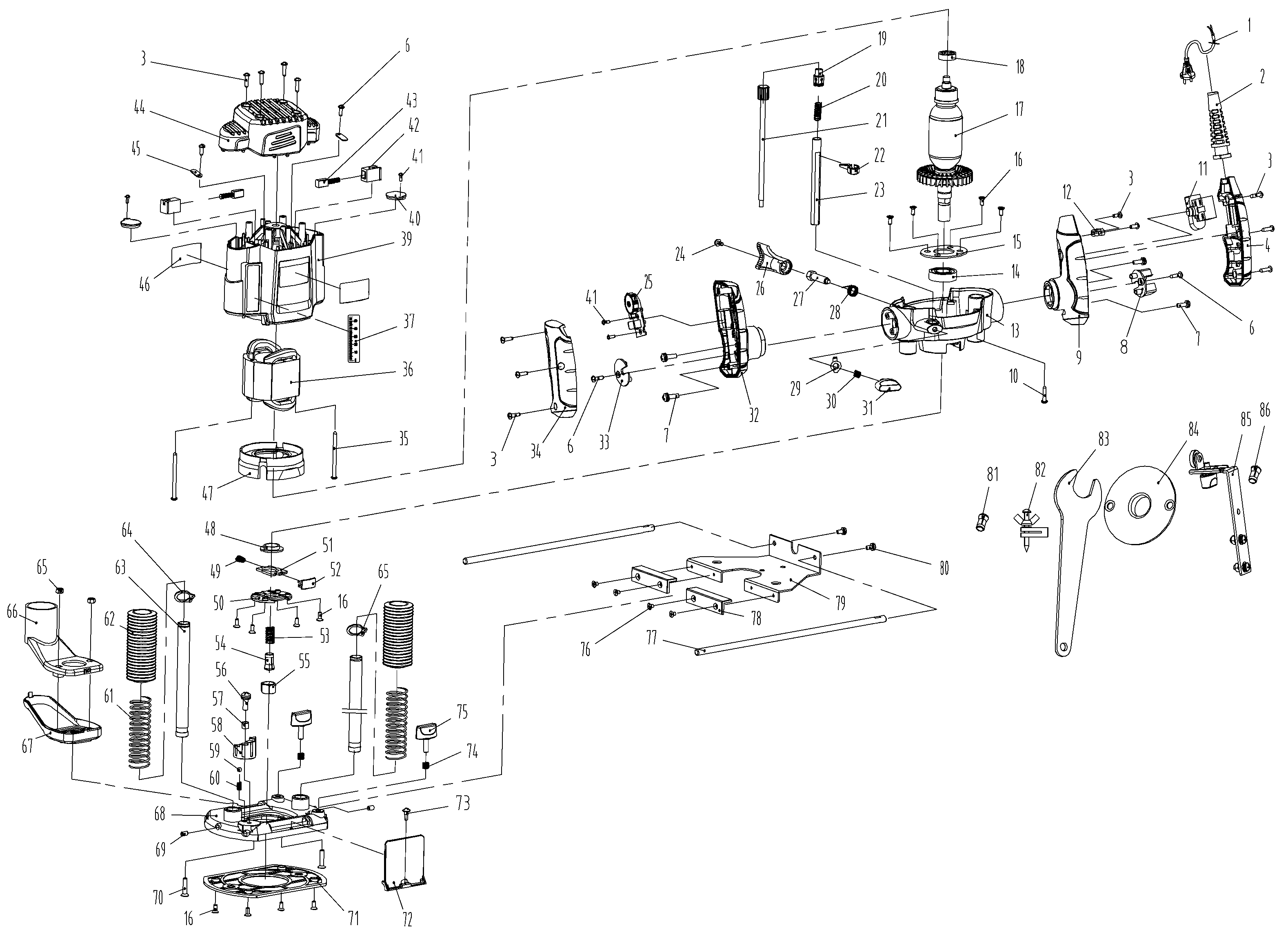

SRR1200 PLUNGE ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140202-58 | 1 | CORD | AR | |||
| 2 | 5140202-63 | 1 | CORD PROTECTOR | AR | |||
| 3 | 5140202-64 | 12 | SCREW | AR | |||
| 4 | 5140202-65 | 1 | RIGHT HANDLE COVER | AR | |||
| 6 | 5140202-66 | 4 | SCREW | AR | |||
| 7 | 5140202-67 | 4 | SCREW | AR | |||
| 8 | 5140202-68 | 1 | BOARD | AR | |||
| 9 | 5140202-69 | 1 | RIGHT HANDLE | AR | |||
| 10 | 5140202-70 | 4 | SCREW | AR | |||
| 11 | 5140202-71 | 1 | SWITCH LOCK ON | AR | |||
| 12 | 5140202-72 | 1 | CABLE CLIP | AR | |||
| 13 | 5140202-73 | 1 | GEAR BOX | AR | |||
| 14 | 5140202-74 | 1 | BEARING | AR | |||
| 15 | 5140202-75 | 1 | PLATEN | AR | |||
| 16 | 5140202-76 | 12 | SCREW | AR | |||
| 17 | 5140202-77 | 1 | ARMATURE | AR | |||
| 18 | 5140202-79 | 1 | BEARING | AR | |||
| 19 | 5140202-80 | 1 | ADJUSTER | AR | |||
| 20 | 5140202-81 | 1 | SPRING | AR | |||
| 21 | 5140202-82 | 1 | ADJUSTER | AR | |||
| 22 | 5140202-83 | 1 | POINTER | AR | |||
| 23 | 5140202-84 | 1 | GAUGE | AR | |||
| 24 | 5140202-85 | 1 | SCREW | AR | |||
| 25 | 5140202-87 | 1 | PCB ASSEMBLY | AR | |||
| 26 | 5140202-89 | 1 | SPANNER | AR | |||
| 27 | 5140202-90 | 1 | SCREW | AR | |||
| 28 | 5140202-91 | 1 | SPRING | AR | |||
| 29 | 5140202-92 | 1 | WASHER | AR | |||
| 30 | 5140202-93 | 1 | SPRING | AR | |||
| 31 | 5140202-94 | 1 | KNOB | AR | |||
| 32 | 5140202-95 | 1 | LEFT HANDLE | AR | |||
| 33 | 5140202-96 | 1 | BOARD | AR | |||
| 34 | 5140202-97 | 1 | LEFT HANDLE COVER | AR | |||
| 35 | 5140203-54 | 2 | SCREW | AR | |||
| 36 | 5140202-98 | 1 | FIELD | AR | |||
| 37 | 5140203-00 | 1 | DEPTH LABEL | AR | |||
| 39 | 5140203-01 | 1 | FIELD CASE | AR | |||
| 40 | 5140203-02 | 2 | COVER PLATE | AR | |||
| 41 | 5140203-03 | 4 | SCREW | AR | |||
| 42 | 5140203-04 | 2 | BRUSH COVER | AR | |||
| 43 | 5140203-05 | 2 | BRUSH | AR | |||
| 44 | 5140203-07 | 1 | UPPER COVER | AR | |||
| 45 | 5140203-08 | 2 | PLATE | AR | |||
| 46 | 5140203-13 | 1 | NAME PLATE | AR | |||
| 47 | 5140203-14 | 1 | BAFFLE | AR | |||
| 48 | 5140203-15 | 1 | NUT | AR | |||
| 49 | 5140203-16 | 1 | SPRING | AR | |||
| 50 | 5140203-17 | 1 | FRONT COVER | AR | |||
| 51 | 5140203-18 | 1 | SELF LOCK PIECE | AR | |||
| 52 | 5140203-19 | 1 | KNOB | AR | |||
| 53 | 5140203-20 | 1 | SPRING | AR | |||
| 54 | 5140203-21 | 1 | COLLET | AR | |||
| 55 | 5140203-22 | 1 | COLLET NUT | AR | |||
| 56 | 5140203-23 | 1 | SCREW | AR | |||
| 57 | 5140203-24 | 1 | SLEEVE | AR | |||
| 58 | 5140203-25 | 1 | RESIST PIECE | AR | |||
| 59 | 5140203-26 | 1 | STEEL BALL | AR | |||
| 60 | 5140203-27 | 1 | SPRING | AR | |||
| 61 | 5140203-28 | 2 | SPRING | AR | |||
| 62 | 5140203-29 | 2 | PLASTIC LOOP | AR | |||
| 63 | 5140203-30 | 2 | GUIDE | AR | |||
| 64 | 5140203-31 | 1 | CIRCLIP | AR | |||
| 65 | 5140203-32 | 2 | NUT | AR | |||
| 66 | 5140203-33 | 1 | PLASTIC COVER | AR | |||
| 67 | 5140203-34 | 1 | PLASTIC COVER | AR | |||
| 68 | 5140203-35 | 1 | BASE | AR | |||
| 69 | 5140203-36 | 2 | LOCKING SCREW | AR | |||
| 70 | 5140203-37 | 2 | SCREW | AR | |||
| 71 | 5140203-38 | 1 | BASE PLATE | AR | |||
| 72 | 5140203-39 | 1 | BAFFLE | AR | |||
| 73 | 5140203-40 | 1 | SCREW | AR | |||
| 74 | 5140203-41 | 2 | SPRING | AR | |||
| 75 | 5140203-42 | 2 | KNOB | AR | |||
| 76 | 5140203-43 | 4 | SCREW | AR | |||
| 77 | 5140203-44 | 2 | GUIDE BAR | AR | |||
| 78 | 5140203-45 | 2 | PLASTIC BOARD | AR | |||
| 79 | 5140203-46 | 1 | EDGE GUIDE | AR | |||
| 80 | 5140203-47 | 2 | SCREW | AR | |||
| 81 | 5140203-48 | 1 | COLLET | AR | |||
| 82 | 5140203-49 | 1 | CENTERING PIN | AR | |||
| 83 | 5140203-50 | 1 | SPANNER | AR | |||
| 84 | 5140203-51 | 1 | TEMPLATE GUIDE | AR | |||
| 85 | 5140203-52 | 1 | FOLLOWER | AR | |||
| 86 | 5140203-53 | 1 | COLLET | AR |
