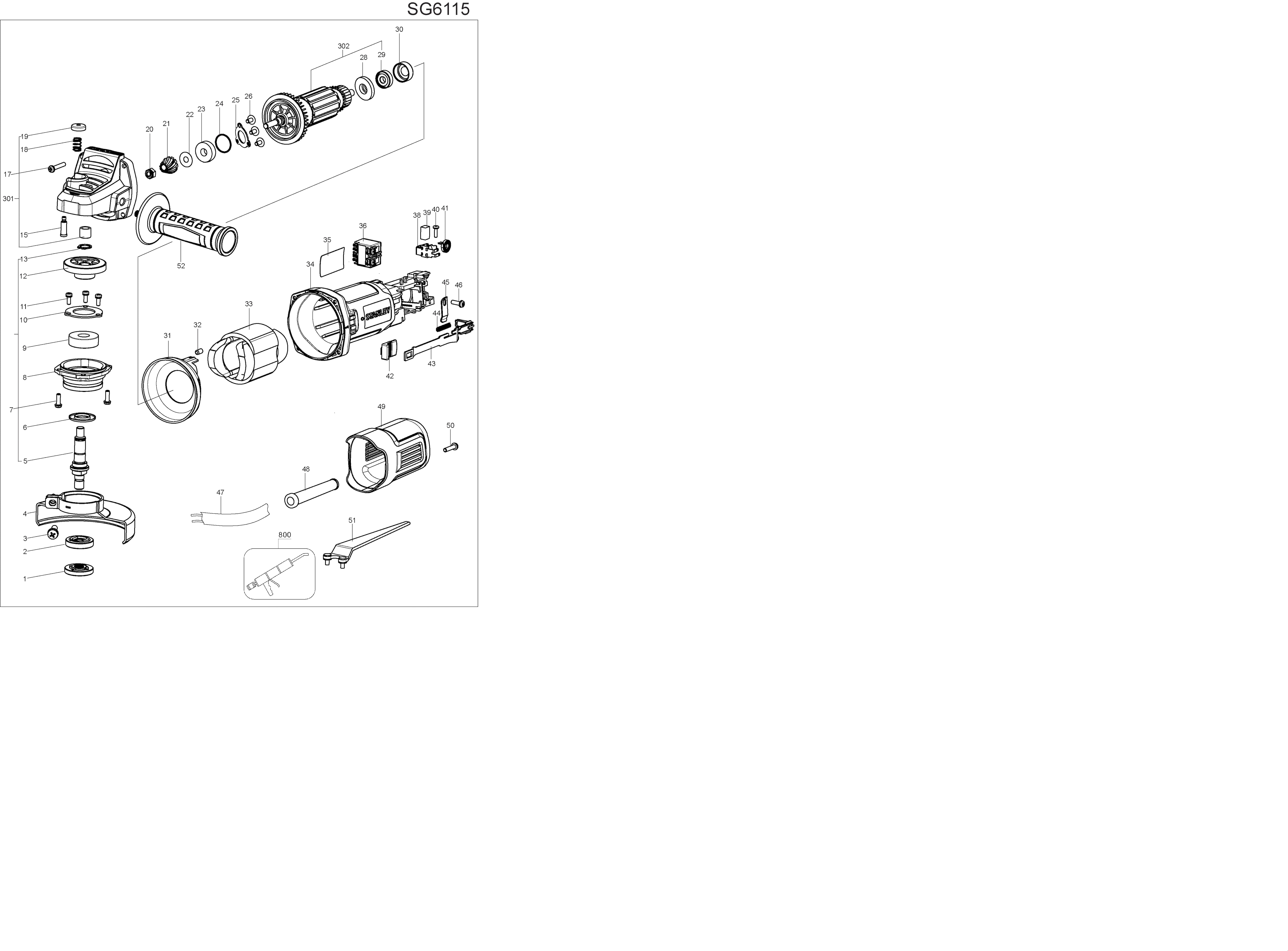

SG6115 ANGLE GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	N862877	1	OUTER FLANGE		B2
2	N803471	1	INNER FLANGE		B2
3	N866043	1	SCREW		B2
4	5140164-83	1	GUARD		B2
5	N746578	1	SPINDLE		B2
6	N494772	1	COVER		B2
7	5140164-85	4	SCREW		B2
8	N866050	1	GEARCASE COVER		B2
9	5140164-87	1	BEARING		B2
10	N787677	1	BEARING PLATE		B2
11	5140165-35	3	SCREW		B2
12	N802377	1	GEAR		B2
13	N851381	1	CIRCLIP		B2
15	N743788	1	LOCK PIN		B2
17	N802853	4	SCREW		B2
18	5140164-94	1	SPRING		B2
19	5140164-95	1	LOCK BUTTON		B2
20	N867028	1	NUT		B2
21	N802378	1	PINION		B2
22	5140164-99	1	WASHER		B2
23	N793193	1	BEARING		B2
24	N880529	1	O RING		B2
25	N826429	1	BEARING PLATE		B2
26	N826930	3	SCREW		B2
28	5140165-46	1	INSULATOR	WASHER	B2
29	N793199	1	BEARING		B2
30	N844524	1	SLEEVE BEARING		B2
31	N691342	1	BAFFLE		B2
32	5140246-75	2	PLUG		B2
33	N683540	1	FIELD SA		B2
34	N713568	1	FIELD CASE		B2
35	N823459	1	RATING LABEL		B2
36	N622597	1	SWITCH		B2
38	N767128	2	BRUSH HOLDER		B2
39	N875883	1	BRUSH PAIR		B2
40	5140165-18	2	SCREW		B2
41	5140165-16	1	BRUSH SPRING		B2
42	5140165-67	1	BUTTON		B2
43	N757193	1	LINK		B2
44	5140165-10	1	SPRING		B2
45	5140165-14	1	CORD CLAMP		B2
46	5140156-10	1	SCREW		B2
47	5140173-35	1	CORD SET		B2
48	N802854	1	CORD PROTECTOR		B2
49	N854001	1	END CAP		B2
50	5140155-81	1	SCREW		B2
51	5140179-53	1	WRENCH		B2
52	N865425	1	SIDE HANDLE		B2
301	N875885	1	GEARCASE SA		B2
302	N875654	1	ARMATURE		B2
800	N544392	1	GREASE		B2
