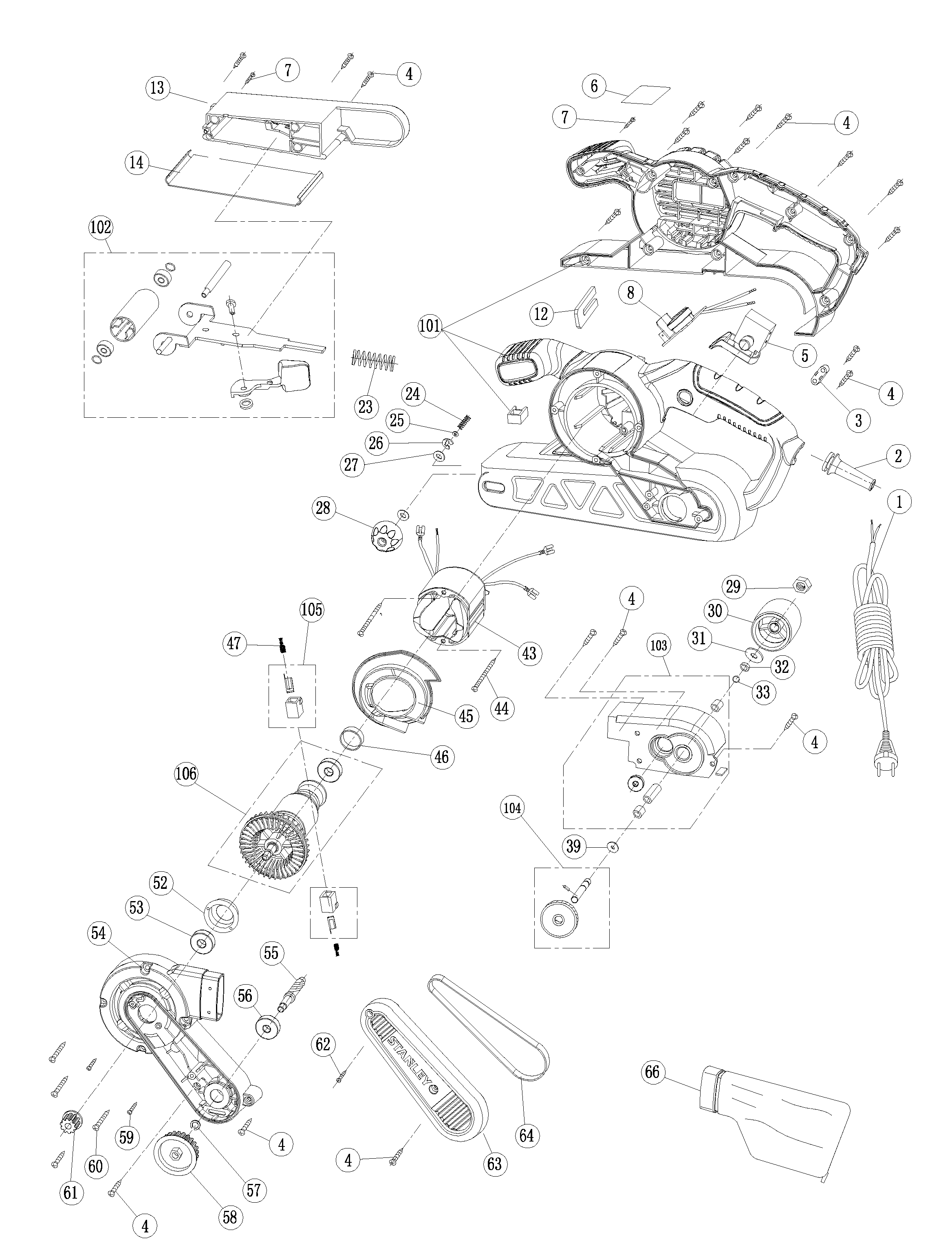

SB90 BELT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140230-61 | 1 | CORD SET | BR | |||
| 2 | 5140230-63 | 1 | PROTECTOR | BR | |||
| 3 | 5140230-64 | 1 | CLAMP | BR | |||
| 4 | 5140101-52 | 20 | SCREW | st4.1x16mm | BR | ||
| 5 | 5140230-65 | 1 | SWITCH | BR | |||
| 6 | 5140230-68 | 1 | RATING LABEL | BR | |||
| 7 | 5140230-71 | 2 | SCREW | BR | |||
| 8 | 5140230-73 | 1 | PCB BOARD | BR | |||
| 12 | 5140230-75 | 1 | BLOCK | BR | |||
| 13 | 5140230-76 | 1 | CLAMP | BR | |||
| 14 | 5140230-77 | 1 | BASE PLATE | BR | |||
| 23 | 5140230-79 | 1 | SPRING | BR | |||
| 24 | 5140230-80 | 1 | SPRING | BR | |||
| 25 | 5140230-81 | 1 | WASHER | BR | |||
| 26 | 5140230-82 | 1 | WASHER | BR | |||
| 27 | 5140230-83 | 2 | WASHER | BR | |||
| 28 | 5140230-84 | 1 | KNOB | BR | |||
| 29 | 5140230-85 | 1 | NUT | BR | |||
| 30 | 5140230-86 | 1 | ROLLER | BR | |||
| 31 | 5140230-87 | 1 | WASHER | BR | |||
| 32 | 5140230-88 | 1 | WASHER | BR | |||
| 33 | 5140230-89 | 1 | RING | BR | |||
| 39 | 5140230-91 | 1 | WASHER | BR | |||
| 43 | 5140230-94 | 1 | FIELD ASSY. | BR | |||
| 44 | 5140230-95 | 1 | SCREW | BR | |||
| 45 | 5140230-96 | 1 | FAN | BR | |||
| 46 | 5140230-97 | 1 | WASHER | BR | |||
| 47 | 5140230-99 | 2 | BRUSH | BR | |||
| 52 | 5140231-03 | 1 | COVER | BR | |||
| 53 | 5140231-04 | 1 | BEARING 608 | BR | |||
| 54 | 5140231-05 | 1 | HOUSING | BR | |||
| 55 | 5140231-06 | 1 | PINION GEAR | BR | |||
| 56 | 5140231-07 | 1 | BEARING | BR | |||
| 57 | 5140231-08 | 1 | WASHER | BR | |||
| 58 | 5140231-09 | 1 | GEAR | BR | |||
| 59 | 5140231-10 | 2 | SCREW | BR | |||
| 60 | 5140231-11 | 4 | SCREW | BR | |||
| 61 | 5140231-12 | 1 | PULLEY | BR | |||
| 62 | 5140231-13 | 1 | SCREW | BR | |||
| 63 | 5140231-14 | 1 | COVER | BR | |||
| 64 | 5140231-15 | 1 | BELT | BR | |||
| 66 | 5140231-16 | 1 | DUSTBAG | BR | |||
| 101 | 5140230-74 | 1 | HOUSING SA | BR | |||
| 102 | 5140230-78 | 1 | FORK | BR | |||
| 103 | 5140230-90 | 1 | SUPPORT SA | BR | |||
| 104 | 5140230-92 | 1 | SHAFT SA | BR | |||
| 105 | 5140231-00 | 2 | BRUSH HOLDER | BR | |||
| 106 | 5140231-02 | 1 | ARMATURE ASSY. | BR |
