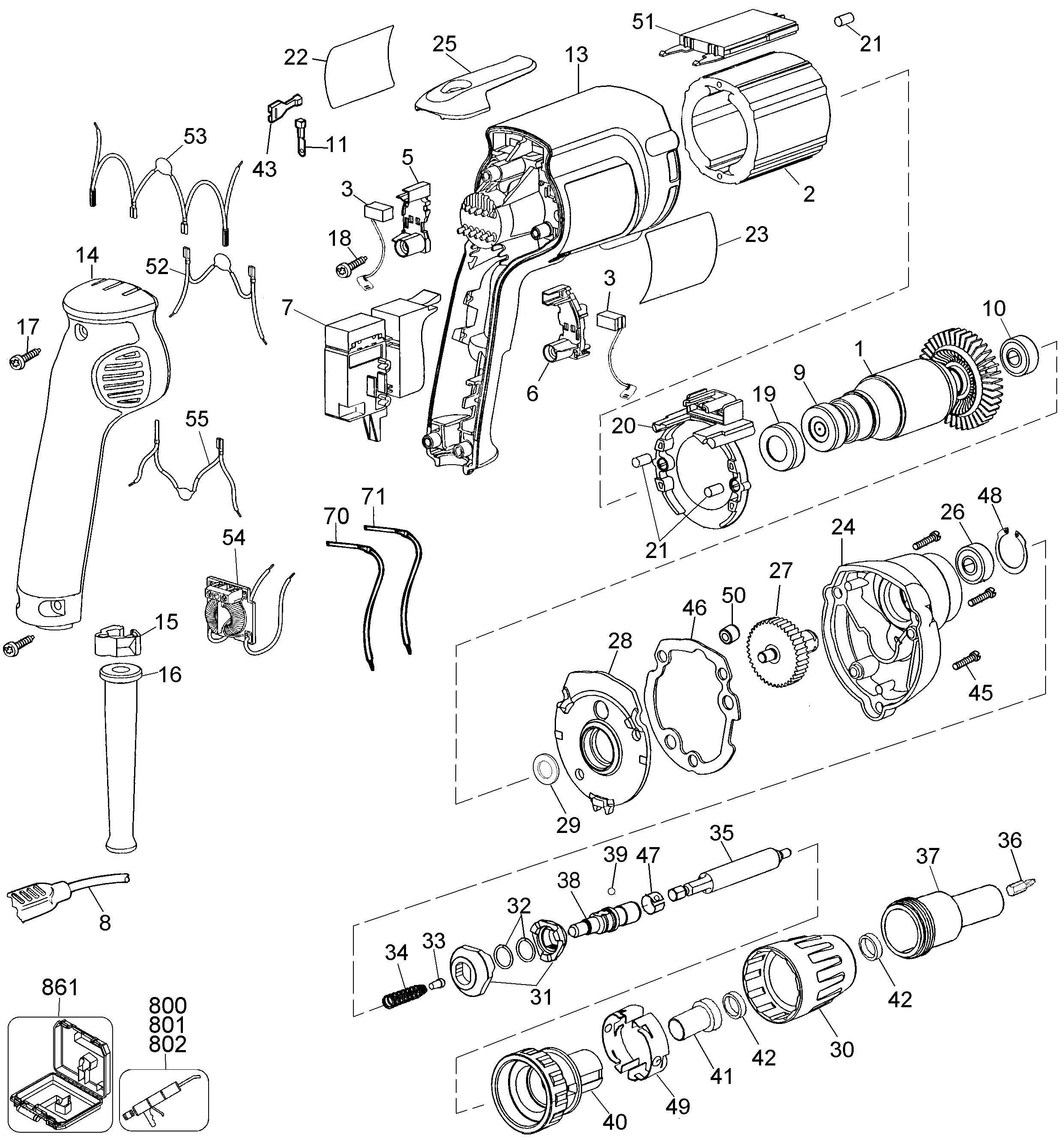

BS40EK SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176851-01 | 1 | ARMATURE & FAN | CH | |||
| 2 | 176849-01SV | 1 | FIELD 230V | CH | |||
| 3 | 176949-00 | 2 | BRUSH 230V | CH | |||
| 5 | 176801-03 | 1 | BRUSH HOLDER | CH | |||
| 6 | 176800-03 | 1 | BRUSH HOLDER | CH | |||
| 7 | 176830-09 | 1 | SWITCH | CH | |||
| 8 | 330080-40 | 1 | CORDSET | CH | |||
| 9 | 330003-04 | 1 | BEARING | CH | |||
| 10 | 330003-04 | 1 | BEARING | CH | |||
| 11 | 449192-00 | 3 | TERMINAL | CH | |||
| 14 | 176898-02 | 1 | HANDLE COVER | CH | |||
| 15 | 176832-00 | 1 | CORD CLAMP | CH | |||
| 16 | 330005-01 | 1 | CORD PROTECTOR | CH | |||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | CH | ||
| 18 | 176951-00 | 2 | SCREW | CH | |||
| 19 | 949721-03 | 1 | SLEEVE | CH | |||
| 20 | 176811-00 | 1 | BAFFLE | CH | |||
| 21 | 176815-01 | 1 | FIELDCASE | CH | |||
| 21 | 949638-02 | 3 | DAMPER | CH | |||
| 22 | 152529-00 | 1 | LABEL | CH | |||
| 23 | 000000-00 | 1 | NO LONGER AVAILABLE | CH | |||
| 24 | 176624-00SV | 1 | CASE-GEAR | INCL. 26,48 | CH | ||
| 25 | N045425 | 1 | CLIP | CH | |||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | CH | ||
| 27 | 638982-00SV | 1 | SPINDLE & GEAR | CH | |||
| 28 | 386622-00 | 1 | GEARCASE COVER | CH | |||
| 29 | 023813-00 | 1 | WASHER FIBRE | CH | |||
| 30 | 152492-03 | 1 | COLLAR | CH | |||
| 31 | 96558-00 | 2 | CLUTCH | CH | |||
| 32 | 089210-00 | 2 | RETAINER | CH | |||
| 33 | 021287-00 | 1 | GUIDE | CH | |||
| 34 | 86211-00 | 1 | SPRING | CH | |||
| 35 | N449701 | 1 | HOLDER BIT | CH | |||
| 36 | 607904-22 | 1 | BIT SCREWDRIVER | CH | |||
| 37 | 612001-00SV | 1 | LOCATOR | CH | |||
| 38 | 176697-00 | 1 | SPINDLE | CH | |||
| 39 | 696631-00 | 1 | BALL | CH | |||
| 40 | 381124-02 | 1 | BOX,KIT | CH | |||
| 40 | N740053 | 1 | CLUTCH SA | PKGD 176632-00 | INCL. 41,42,49 | CH | |
| 41 | 450907-00 | 1 | SLEEVE | CH | |||
| 42 | 696534-00 | 2 | SEAL | CH | |||
| 42 | 383714-00 | 1 | ELECTRONIC | CH | |||
| 43 | 136086-02 | 1 | TERMINAL | CH | |||
| 45 | 330019-14 | 3 | SCREW | CH | |||
| 46 | 176655-00 | 1 | GASKET | CH | |||
| 47 | 094518-00 | 1 | RETAINER | CH | |||
| 48 | 087692-00 | 1 | RETAINER | CH | |||
| 49 | 391436-00 | 2 | SPRING | CH | |||
| 50 | 093128-00 | 1 | BEARING NEEDLE | CH | |||
| 51 | 176917-00 | 1 | MODULE | CH | |||
| 52 | 384021-00 | 1 | CAPACITOR SA | CH | |||
| 53 | 384022-00 | 1 | CAPACITOR SA | CH | |||
| 55 | 383663-00 | 1 | CAPACITOR SA | INCL. 11,43 | CH | ||
| 70 | 176893-00 | 1 | LEAD BLACK | CH | |||
| 71 | 176834-00 | 1 | LEAD BLUE | CH | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | CH | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | CH | ||
| 802 | N017298 | 1 | GREASE | G-2008 Molykote | CH |
