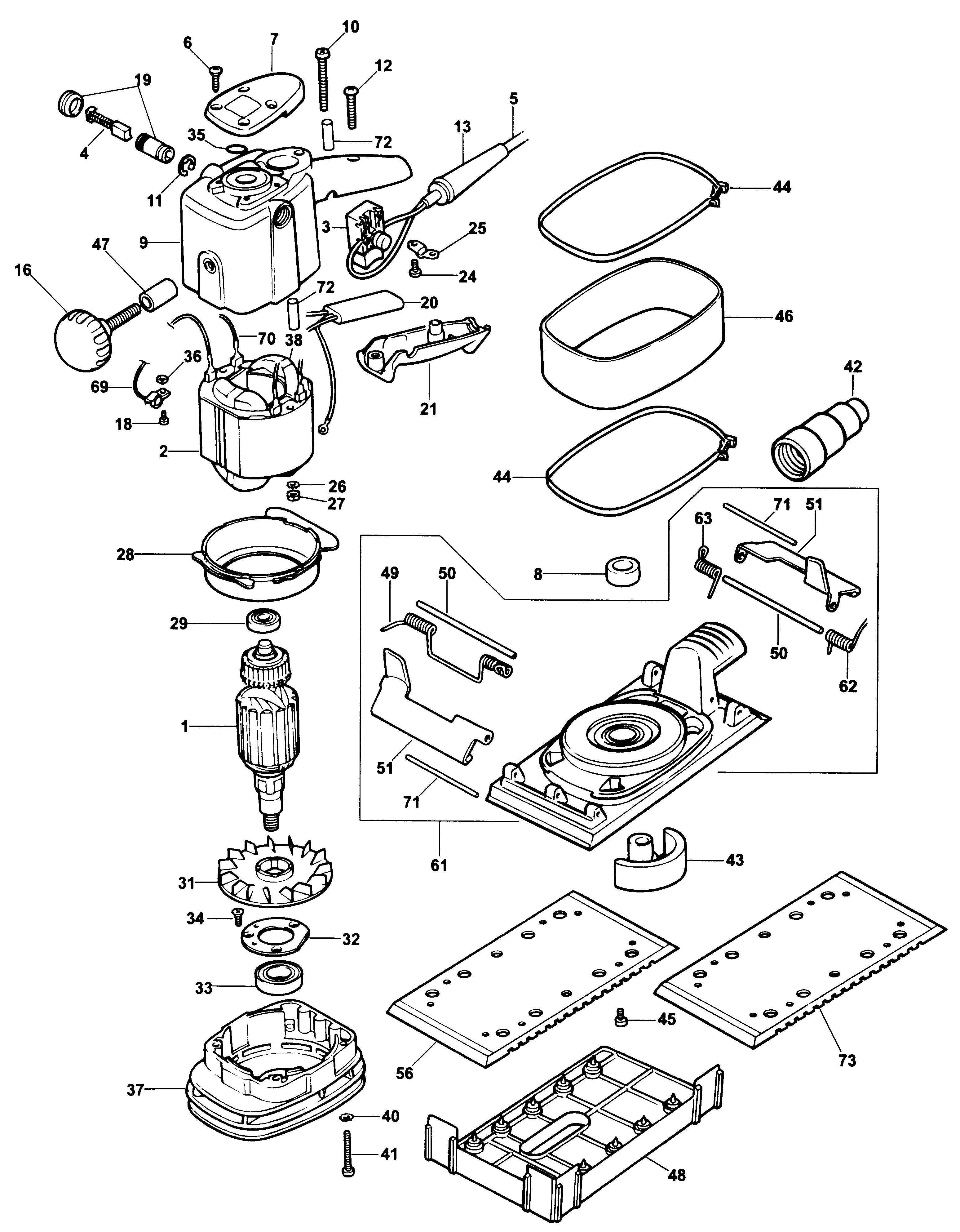

VS71 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 329626-00 | 1 | ARMATURE 230V | 230 VOLT | CH | ||
| 1 | 249339-00 | 1 | ARMATURE 115V | 115 VOLT | CH | ||
| 2 | 329627-00 | 1 | FIELD 230V | 230 VOLT | CH | ||
| 2 | 249349-00 | 1 | STATOR 115V | 115 VOLT | CH | ||
| 3 | 249331-00 | 1 | SWITCH | CH | |||
| 4 | 025121502 | 2 | BRUSH 115V | 115 VOLT | CH | ||
| 4 | 025121501 | 2 | BRUSH | 230 VOLT | CH | ||
| 5 | 330060-31 | 1 | CORDSET | GB 240V | CH | ||
| 5 | 325612-11 | 1 | CABLE | CH | |||
| 5 | 378990 | 1 | CORDSET | GB 115V | CH | ||
| 6 | 249418-00 | 4 | SCREW | CH | |||
| 7 | 329317-00 | 1 | COVER | CH | |||
| 8 | 326358-00 | 1 | BUSH | CH | |||
| 9 | 249574-00 | 1 | HOUSING SA | CH | |||
| 10 | 249424-10 | 1 | SCREW | CH | |||
| 11 | 248138-00 | 2 | CIRCLIP | CH | |||
| 12 | 249413-06 | 1 | SCREW | CH | |||
| 13 | 320785 | 1 | CORD PROTECTOR | CH | |||
| 16 | 869284-05 | 1 | HANDLE SA | CH | |||
| 18 | 025811100 | 2 | SCREW | CH | |||
| 19 | 249525-00 | 2 | BRUSH HOLDER SA | CH | |||
| 20 | 324624-00 | 1 | CAPACITOR | CH | |||
| 21 | 325091-00 | 1 | COVER | CH | |||
| 24 | 247613-05 | 2 | SCREW | CH | |||
| 25 | 910556 | 1 | CABLE CLAMP | CH | |||
| 26 | 093820600 | 2 | WASHER LOCK | CH | |||
| 27 | 249232-00 | 2 | NUT M4 | CH | |||
| 28 | 047120901 | 1 | COVER | CH | |||
| 29 | 025830002 | 1 | BEARING 609ZZ | CH | |||
| 31 | 047130501 | 1 | FAN | CH | |||
| 32 | 868047-00 | 1 | PLATE | CH | |||
| 33 | 051830000 | 1 | BEARING | CH | |||
| 34 | 249412-13 | 3 | SCREW | CH | |||
| 35 | 030971003 | 1 | SEAL | CH | |||
| 36 | 013822600 | 2 | NUT | CH | |||
| 37 | 249359-00 | 1 | HOUSING GEAR | CH | |||
| 38 | 941486-00 | 2 | CABLE TIE | CH | |||
| 40 | 725163 | 4 | WASHER | CH | |||
| 41 | 249416-10 | 4 | SCREW | CH | |||
| 42 | 248705-00 | 1 | ADAPTOR | CH | |||
| 43 | 326341-00 | 1 | COUNTERWEIGHT | CH | |||
| 44 | 249325-00 | 2 | CLIP SA | CH | |||
| 45 | 378795-01 | 8 | SCREW | CH | |||
| 46 | 326351-01 | 1 | SKIRT | CH | |||
| 47 | 249527-00 | 1 | SPACER | CH | |||
| 48 | 326356-00 | 1 | PUNCH | CH | |||
| 49 | 047930908 | 1 | SPRING | CH | |||
| 50 | 326355-01 | 2 | PIN | CH | |||
| 51 | 326342-00 | 2 | LEVER SA | CH | |||
| 56 | 326338-00 | 1 | PAD VELCRO | CH | |||
| 61 | 328657-00 | 1 | BASEPLATE SA | CH | |||
| 62 | 249347-00 | 1 | SPRING | CH | |||
| 63 | 249348-00 | 1 | SPRING | CH | |||
| 69 | 047164503 | 2 | LEAD 80MM YELLOW | CH | |||
| 70 | 047164502 | 2 | LEAD 200MM RED | CH | |||
| 71 | 249532-00 | 2 | RUBBER 5X90 | CH | |||
| 72 | 088306102 | 2 | SLEEVE | CH | |||
| 73 | 328325-00 | 1 | RUBBER PAD | CH |
