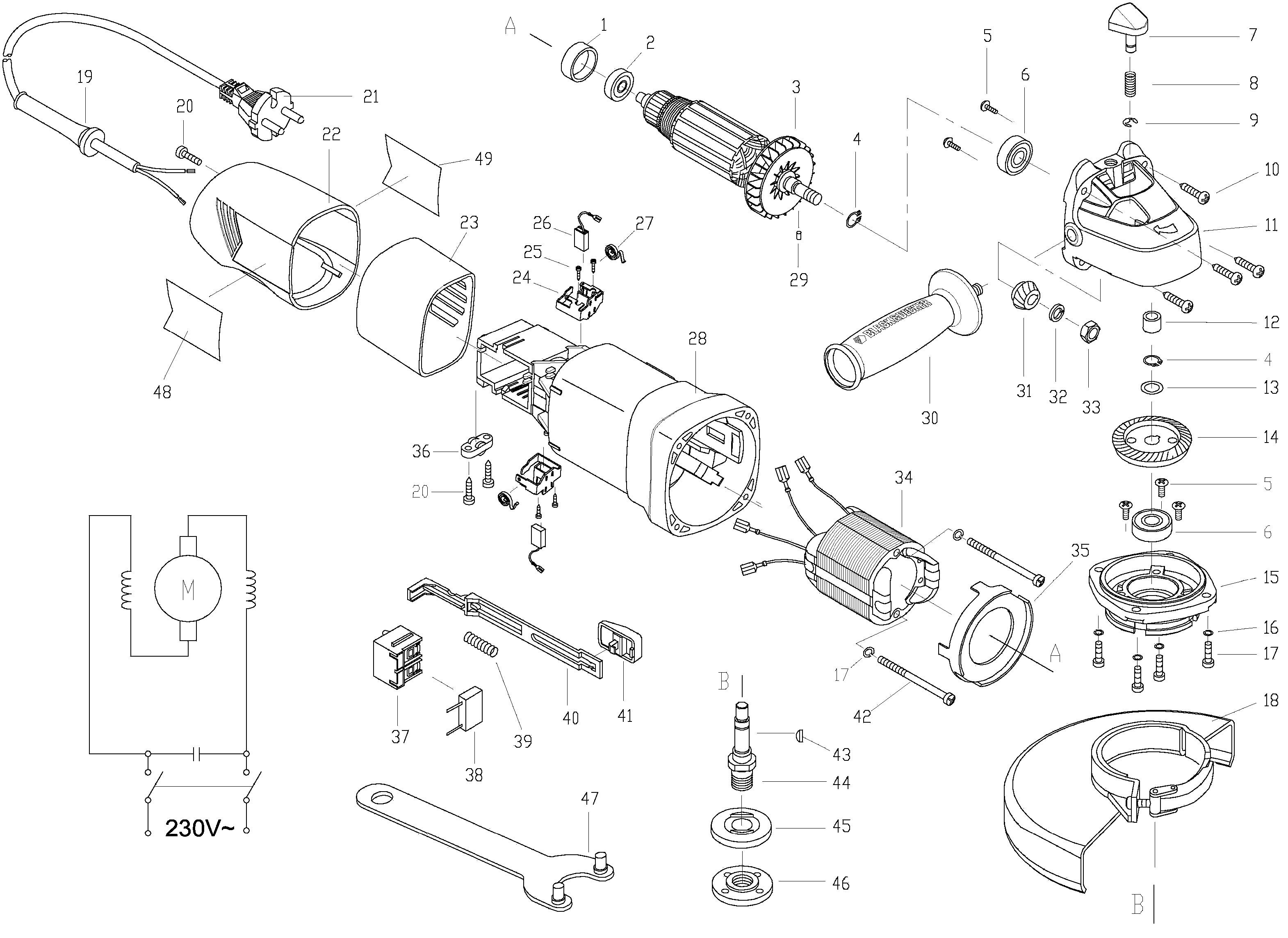

G720 SMALL ANGLE GRINDER Type 2 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	5140003-59	1	BEARING HOLDER		B2
2	5140003-60	1	BEARING		B2
3	5140003-61	1	ARMATURE 220V	220V	B2
4	5140177-27	1	RETAINING RING		B2
5	5140029-15	5	SCREW		B2
6	5140003-66	2	BEARING		B2
7	5140029-16	1	LOCK PIN		B2
8	5140003-68	1	SPRING		B2
9	5140003-69	1	RET. RING		B2
10	5140003-70	4	SCREW		B2
11	5140029-17	1	GEAR CASE		B2
12	5140003-72	1	BEARING		B2
13	5140029-18	1	SPRING RING		B2
14	5140003-75	1	GEAR		B2
15	5140029-19	1	GEAR CASE COVER		B2
16	5140003-79	4	WASHER		B2
17	5140003-80	4	SCREW	M4x14	B2
18	5140029-20	1	GUARD		B2
19	5140002-29	1	SLEEVE		B2
20	5140003-83	1	SCREW		B2
21	5140002-60	1	CORD & PLUG		B2
22	5140029-21	1	END CAP		B2
23	5140029-22	1	RUBBER CASE		B2
24	5140029-24	2	BRUSH HOLDER		B2
25	5140003-86	4	SCREW		B2
26	5140029-25	2	BRUSH CARBON		B2
27	5140029-27	2	SPRING		B2
28	5140029-28	1	FIELD CASE		B2
29	5140003-88	1	LOCK SCREW		B2
30	5140029-29	1	Handle		B2
31	5140003-91	1	PINION		B2
32	5140003-92	1	WASHER SPRING		B2
33	5140003-93	1	NUT		B2
34	5140003-95	1	STATOR SA 220V	220V	B2
35	5140003-97	1	BAFFLE		B2
36	5140002-48	1	CORD CLAMP		B2
37	5140002-54	1	SWITCH		B2
38	5140004-01	1	CONDENSOR		B2
39	5140029-30	1	SPRING		B2
40	5140029-31	1	SWITCH ACTUATOR		B2
41	5140029-32	1	SWITCH KNOB		B2
42	5140004-04	2	SCREW		B2
43	5140004-05	1	WOODRUFF KEY		B2
44	5140004-06	1	SPINDLE		B2
45	5140002-52	1	FLANGE		B2
46	5140004-07	1	NUT	FLANGE	B2
47	5140029-33	1	WRENCH		B2
48	5140029-35	1	RATING PLATE		B2
49	5140029-38	1	ID LABEL		B2
