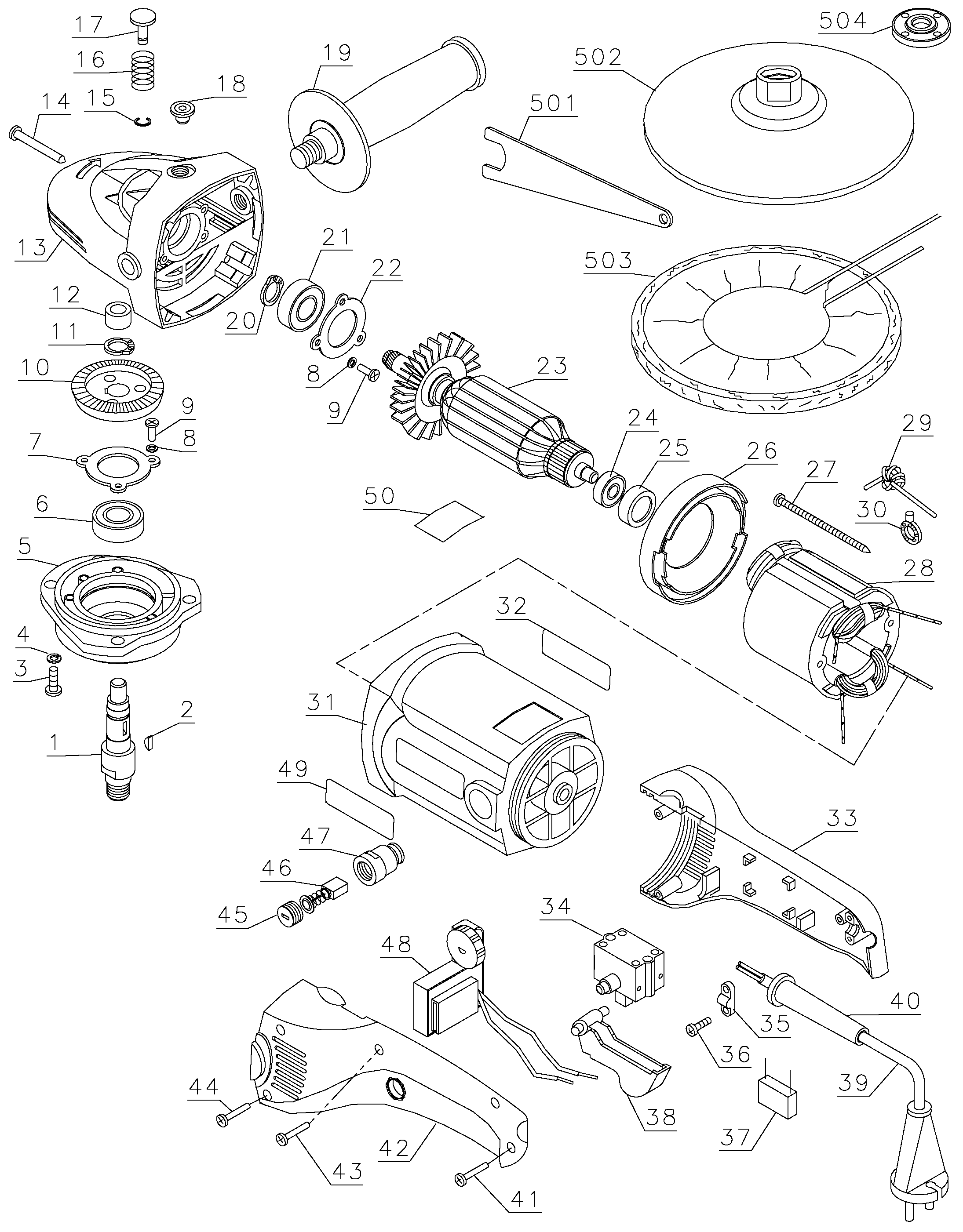

WP1300K POLISHER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	5140013-01	1	SPINDLE		B2
2	5140013-02	1	KEY		B2
3	5140013-03	4	SCREW		B2
4	5140013-04	4	WASHER		B2
5	5140013-05	1	BEARING HOUSING		B2
6	5140013-06	1	BEARING		B2
7	5140013-07	1	COVER		B2
8	5140013-08	6	WASHER		B2
9	5140013-09	6	SCREW		B2
10	5140013-10	1	GEAR		B2
11	5140013-11	1	CIRCLIP		B2
12	5140013-12	1	BUSH		B2
13	5140013-13	1	REDUCER		B2
14	5140013-14	4	SCREW		B2
15	5140013-15	1	CIRCLIP		B2
16	5140013-16	1	SPRING		B2
17	5140013-17	1	PIN		B2
18	5140013-18	3	RUBBER		B2
19	5140013-19	1	SIDE HANDLE		B2
20	5140013-20	1	CIRCLIP		B2
21	5140013-21	1	COVER		B2
22	5140013-22	1	COVER		B2
23	5140013-23	1	ARMATURE		B2
24	5140013-24	1	BEARING		B2
25	5140013-25	1	SLEEVE		B2
26	5140013-26	1	GUIDE		B2
27	5140013-27	2	SCREW		B2
28	5140013-28	1	FIELD		B2
29	5140013-29	2	LEAD SA		B2
30	5140013-30	2	SPRING		B2
31	5140013-31	1	FIELD CASE		B2
32	5140013-32	1	LABEL		B2
33	5140013-33	1	Handle		B2
34	5140013-34	1	SWITCH	230v	B2
35	5140013-35	1	CORD CLAMP		B2
36	5140013-36	2	SCREW		B2
37	5140013-37	1	CAPACITOR		B2
38	5140013-38	1	BUTTON		B2
39	5140013-56	1	CORD & PLUG		B2
40	5140013-40	1	CORD PROTECTOR		B2
41	5140013-41	1	SCREW		B2
42	5140013-42	1	Handle		B2
43	5140013-43	2	SCREW		B2
44	5140013-44	2	SCREW		B2
45	5140013-45	2	BRUSH CAP		B2
46	5140013-46	2	BRUSH	230v	B2
47	5140013-47	2	BRUSH HOLDER		B2
48	5140013-48	1	MODULE		B2
49	5140013-49	1	RATING PLATE		B2
50	5140012-90	1	BRAND LABEL	#2	B2
501	5140013-50	1	SPANNER		B2
502	5140013-51	1	PAD		B2
503	5140013-52	1	BONNET		B2
504	5140070-51	1	OUTER FLANGE		B2
