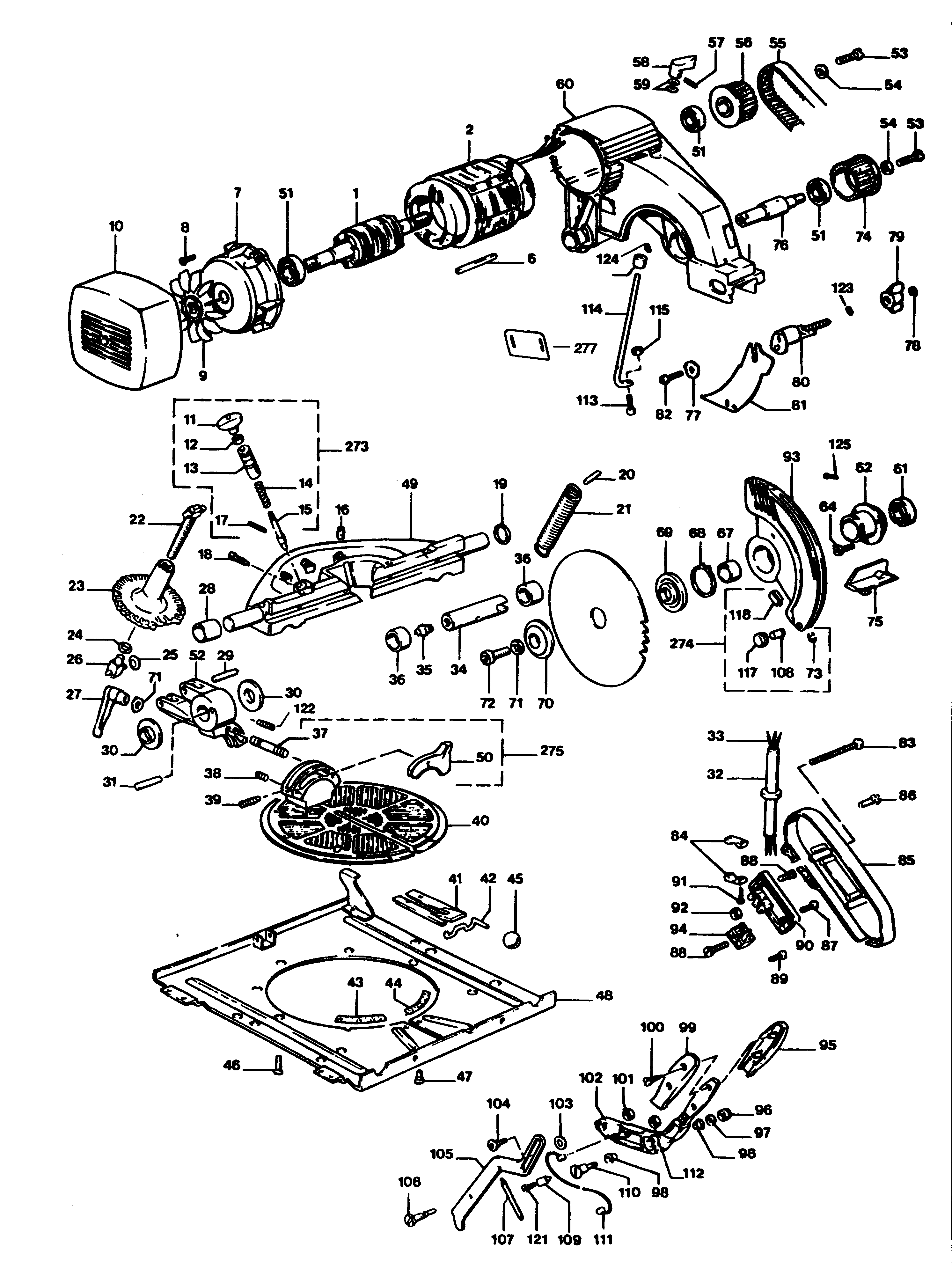

TGS172----G MOTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868410-01 | 1 | ROTOR | CH | |||
| 2 | 868395-09 | 1 | MOTOR SA 230V | CH | |||
| 6 | 172125701 | 1 | WEDGE | CH | |||
| 7 | 861085-04 | 1 | END CAP | CH | |||
| 8 | 860089-17 | 4 | SCREW.TEMP | CH | |||
| 10 | 861036-02 | 1 | END CAP | CH | |||
| 11 | 942453-00 | 1 | KNOB | CH | |||
| 12 | 949726-05 | 1 | NUT | CH | |||
| 13 | 941802-00 | 1 | BARREL | CH | |||
| 14 | 761054-00 | 1 | SPRING | CH | |||
| 15 | 941798-00 | 1 | LOCKING PIN | CH | |||
| 16 | 942329-00 | 1 | SCREW | CH | |||
| 17 | 761065-00 | 1 | PIN | CH | |||
| 18 | 941880-00 | 1 | SCREW | CH | |||
| 19 | 171930412 | 1 | WASHER | CH | |||
| 20 | 860649-01 | 1 | PIN | CH | |||
| 21 | 942455-00 | 1 | SPRING | CH | |||
| 22 | 942363-00 | 1 | SPINDLE | CH | |||
| 23 | 942472-01 | 1 | WHEEL REGULATOR | CH | |||
| 24 | 941801-00 | 1 | WASHER | CH | |||
| 25 | 860074-02 | 1 | WASHER | CH | |||
| 26 | 172112601 | 1 | SPINDLE | CH | |||
| 27 | 942518-00 | 1 | LOCK HANDLE | CH | |||
| 28 | 171114002 | 1 | BUSH | CH | |||
| 29 | 942045-00 | 1 | PIN | CH | |||
| 30 | 941800-00 | 2 | WASHER LOCK | CH | |||
| 31 | 941872-00 | 1 | PIN | CH | |||
| 32 | 942277-00 | 1 | PROTECTOR | CH | |||
| 33 | 942354-00 | 1 | CABLE | CH | |||
| 34 | 071123503 | 1 | SPINDLE | CH | |||
| 35 | 034940402 | 1 | NIPPLE | CH | |||
| 36 | 941886-00 | 2 | BUSH | CH | |||
| 37 | 172910180 | 1 | BOLT M10X170 | M10 X 170 | CH | ||
| 38 | 172815401 | 2 | SCREW | CH | |||
| 39 | 949743-01 | 2 | SCREW | CH | |||
| 40 | 869230-02 | 1 | TABLE | CH | |||
| 41 | 942364-00 | 1 | PLATE | CH | |||
| 42 | 942234-00 | 1 | LOCKING PIN | CH | |||
| 43 | 942208-00 | 1 | SCALE LH | CH | |||
| 44 | 942207-00 | 1 | SCALE RH | CH | |||
| 45 | 942450-00 | 1 | KNOB | CH | |||
| 46 | 868256-00 | 10 | SCREW | CH | |||
| 47 | 942272-00 | 1 | SCREW | CH | |||
| 48 | 172115102 | 1 | TABLE | CH | |||
| 49 | 172116601 | 1 | FENCE | CH | |||
| 50 | 942400-00 | 1 | PLATE | CH | |||
| 51 | 930563-00 | 2 | BEARING | CH | |||
| 52 | 942367-00 | 1 | LEVER | CH | |||
| 60 | 172120100 | 1 | HOUSING | CH | |||
| 61 | 860155-08 | 1 | BEARING | CH | |||
| 62 | 172121000 | 1 | SLEEVE | CH | |||
| 64 | 860094-00 | 3 | SCREW.TEMP | CH | |||
| 67 | 172120900 | 1 | SPACER | CH | |||
| 68 | 860079-05 | 1 | CIRCLIP | CH | |||
| 69 | 172125400 | 1 | BOSS | CH | |||
| 70 | 172120600 | 1 | SLEEVE | CH | |||
| 71 | 860073-04 | 2 | WASHER | CH | |||
| 72 | 071814100 | 1 | SCREW | CH | |||
| 73 | 860322-03 | 2 | CIRCLIP | CH | |||
| 74 | 942396-01 | 1 | PULLEY SHAFT | CH | |||
| 75 | PARTNLS | 3 | NO LONGER SUPPLIED | CH | |||
| 76 | 942410-00 | 1 | SHAFT | CH | |||
| 77 | 860073-04 | 1 | WASHER | CH | |||
| 78 | 860322-00 | 1 | CIRCLIP | CH | |||
| 79 | 942263-00 | 1 | KNOB | CH | |||
| 80 | 172121301 | 1 | SUPPORT | CH | |||
| 81 | 172232401 | 1 | RIVING KNIFE 75MM | CH | |||
| 82 | 942041-00 | 1 | SCREW | CH | |||
| 83 | 860089-13 | 2 | SCREW | CH | |||
| 84 | 941544-00 | 2 | CABLE CLAMP | CH | |||
| 85 | 195053 | 1 | COVER | CH | |||
| 86 | 860089-18 | 1 | SCREW | CH | |||
| 87 | 760996-00 | 1 | SCREW.TEMP | CH | |||
| 88 | 949701-02 | 4 | SCREW | CH | |||
| 89 | 949870-02 | 1 | SCREW | CH | |||
| 90 | 172164800 | 1 | COVER | CH | |||
| 91 | 860084-13 | 2 | SCREW | CH | |||
| 92 | 249232-00 | 2 | NUT M4 | CH | |||
| 93 | 942389-01 | 2 | GUARD | CH | |||
| 94 | 942416-00 | 1 | TERMINAL BLOCK | CH | |||
| 95 | 171127400 | 1 | Handle | CH | |||
| 96 | 941563-00 | 1 | NUT | CH | |||
| 97 | 860073-03 | 2 | WASHER M8 | CH | |||
| 98 | 171120901 | 2 | BOSS | CH | |||
| 99 | 171120202 | 1 | HANDLE COVER | CH | |||
| 100 | 860084-11 | 2 | SCREW | CH | |||
| 101 | 860083-12 | 1 | NUT M6 | CH | |||
| 102 | 942251-00 | 1 | LEVER | CH | |||
| 103 | 171120600 | 1 | DISC | CH | |||
| 104 | 171127003 | 1 | SCREW | CH | |||
| 105 | 172120500 | 1 | LEVER | CH | |||
| 106 | 172127001 | 1 | SCREW | CH | |||
| 107 | 085931319 | 1 | FSO SPRING | CH | |||
| 108 | 942264-00 | 1 | PIN | CH | |||
| 109 | 140931226 | 1 | CLAMP | CH | |||
| 110 | 171127001 | 1 | SCREW | CH | |||
| 111 | 942458-00 | 1 | CORD | CH | |||
| 112 | 249232-00 | 1 | NUT M4 | CH | |||
| 113 | 860085-17 | 1 | SCREW | CH | |||
| 114 | 861380-00 | 1 | DEPTH STOP | CH | |||
| 115 | 860083-12 | 1 | NUT M6 | CH | |||
| 116 | 942244-00 | 1 | BUSH | CH | |||
| 117 | 861096-01 | 1 | ROLLER | CH | |||
| 118 | 861095-01 | 2 | BUFFER | CH | |||
| 121 | 949701-02 | 1 | SCREW | CH | |||
| 122 | 172815400 | 1 | SCREW | CH | |||
| 123 | 860073-04 | 1 | WASHER | CH | |||
| 124 | 860073-08 | 1 | WASHER | CH | |||
| 125 | 949896-12 | 1 | SCREW | CH | |||
| 273 | 944909-00 | 1 | LOCKING PIN SA | CH | |||
| 274 | 944898-01 | 1 | ROLLER SA | CH | |||
| 275 | 866855-00 | 1 | TABLE KIT | CH |
