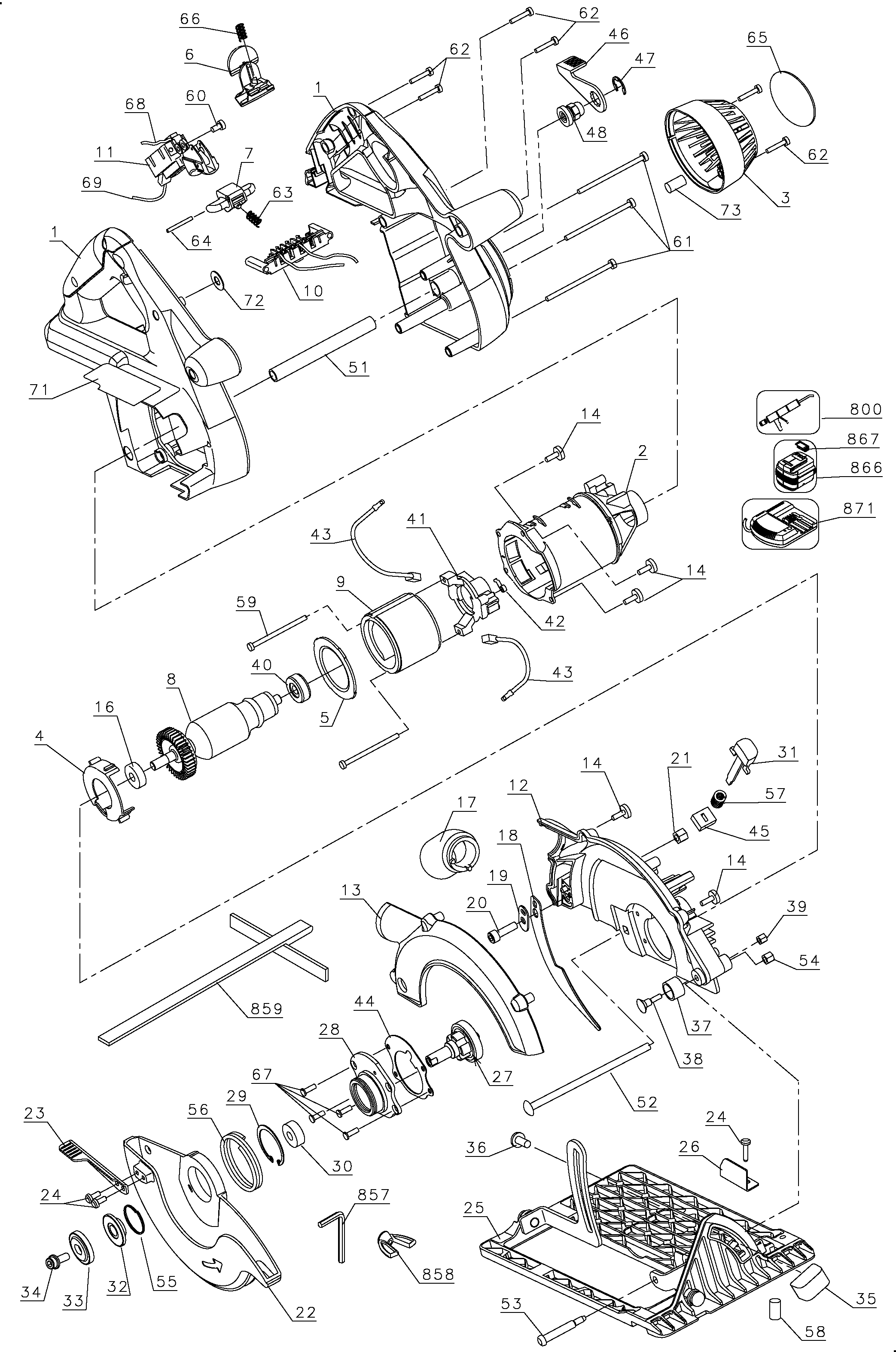

MHA24K CORDLESS CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 388483-01 | 1 | HOUSING & COVER | QW | |||
| 2 | 388489-00 | 1 | FIELDCASE | QW | |||
| 3 | 388516-00 | 1 | END CAP | QW | |||
| 4 | 388517-00 | 1 | BAFFLE FAN | QW | |||
| 5 | 388529-00 | 1 | BAFFLE FAN | QW | |||
| 6 | 388493-01 | 1 | LATCH | QW | |||
| 7 | 388530-00 | 1 | BUTTON LOCK-OFF | QW | |||
| 8 | 393416-00 | 1 | ARMATURE | QW | |||
| 9 | 388232-01SV | 1 | MAGNET | QW | |||
| 10 | 387530-01 | 1 | TERMINAL BLOCK | QW | |||
| 11 | 388507-00 | 1 | SWITCH | QW | |||
| 12 | 391747-00 | 1 | GUARD UPPER | QW | |||
| 13 | 391225-01 | 1 | GUARD UPPER | QW | |||
| 14 | 330045-45 | 8 | SCREW | QW | |||
| 16 | N110359 | 1 | BEARING | QW | |||
| 17 | 391229-00 | 1 | CHUTE | QW | |||
| 18 | 391218-00 | 1 | RIVING KNIFE | QW | |||
| 19 | 391219-00 | 1 | RETAINING PLATE | QW | |||
| 20 | 391854-00 | 1 | SCREW | QW | |||
| 21 | 330021-01 | 1 | NUT | QW | |||
| 22 | 391752-00 | 1 | GUARD LOWER | QW | |||
| 23 | 391221-00 | 1 | LEVER | QW | |||
| 24 | 330045-44 | 3 | SCREW | QW | |||
| 25 | 391753-00 | 1 | SHOE SA | QW | |||
| 26 | 391220-00 | 1 | BRACKET | QW | |||
| 27 | 609925-00 | 1 | SPINDLE SA | QW | |||
| 28 | 388505-00 | 1 | GEARCASE COVER | QW | |||
| 29 | 037464-00 | 1 | RETAINING RING | QW | |||
| 30 | 605040-15 | 1 | BEARING,BALL | QW | |||
| 31 | 388486-00 | 1 | SPINDLE LOCK | QW | |||
| 32 | 388490-00 | 1 | WASHER INNER CLAMP | QW | |||
| 33 | 388499-00 | 1 | WASHER OUTER CLAMP | QW | |||
| 34 | 391755-00 | 1 | BOLT | QW | |||
| 35 | 395889-00 | 1 | KNOB | QW | |||
| 36 | N022876 | 1 | CARRIAGE BOLT | M6x1.0x25 NYLOCK | QW | ||
| 37 | N248899 | 1 | BUMPER | QW | |||
| 38 | 389133-00 | 1 | SCREW | QW | |||
| 39 | 330021-00 | 1 | STOP NUT | QW | |||
| 40 | 390759-00 | 1 | BEARING SA | QW | |||
| 41 | 382178-01 | 1 | BRUSH FRAME | QW | |||
| 42 | 445860-00 | 2 | BRUSH SPRING | QW | |||
| 43 | 390772-02 | 2 | BRUSH & LEAD | QW | |||
| 44 | 391758-00 | 1 | GASKET | QW | |||
| 45 | 388492-00 | 1 | WIPER | QW | |||
| 46 | 145347-00 | 1 | LEVER | QW | |||
| 47 | 152211-00 | 1 | RING | QW | |||
| 48 | 610744-00 | 1 | NUT | QW | |||
| 51 | 389135-00 | 1 | TUBE | QW | |||
| 52 | 98128-88 | 1 | CARRIAGE BOLT | QW | |||
| 53 | 396631-00 | 1 | SCREW | QW | |||
| 54 | 148641-00 | 1 | LOCK NUT | QW | |||
| 55 | 388496-00 | 1 | RETAINER | QW | |||
| 56 | 604915-00 | 1 | SPRING | QW | |||
| 57 | 058698-00 | 1 | SPRING | QW | |||
| 58 | 381069-00 | 1 | SCREW | QW | |||
| 59 | 448269-00 | 2 | SCREW | QW | |||
| 60 | 330019-40 | 1 | SCREW | QW | |||
| 61 | 398987-00 | 3 | SCREW | QW | |||
| 62 | 330019-04 | 8 | SCREW | QW | |||
| 63 | 389120-00 | 1 | SPRING | QW | |||
| 64 | 388531-00 | 1 | PIN | QW | |||
| 65 | 391774-00 | 1 | IDENTITY LABEL | QW | |||
| 66 | 388993-00 | 1 | SPRING | QW | |||
| 67 | 389235-01 | 4 | SCREW | QW | |||
| 67 | 391775-00 | 1 | NP:MHA24 T1 | QW | |||
| 68 | 390855-00 | 1 | LEAD | QW | |||
| 69 | 390856-00 | 1 | LEAD BROWN | QW | |||
| 72 | 388520-00 | 1 | WASHER LOCK | QW | |||
| 73 | 032731-00 | 1 | PLUG | QW | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | QW | ||
| 857 | 098000-11 | 1 | HEX KEY | QW | |||
| 858 | 084317-00 | 1 | NUT,WING | QW | |||
| 859 | 249226-00 | 1 | FENCE | QW | |||
| 866 | 000000-00 | 1 | NO LONGER AVAILABLE | QW | |||
| 867 | 608262-00 | 1 | CAP | BATTERY | QW | ||
| 871 | EZAL24-QW | 1 | 24V CHARGER | QW |
