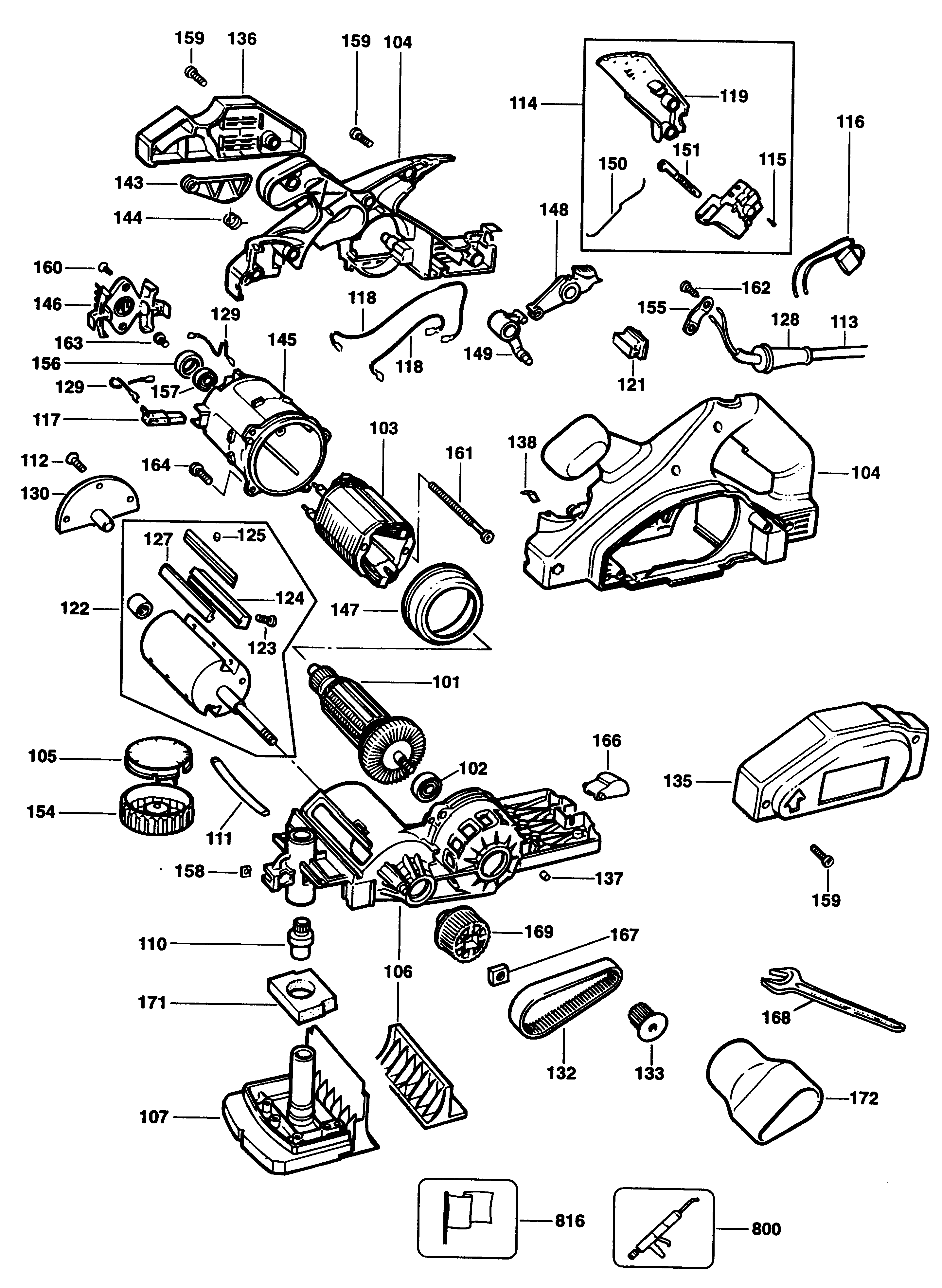

KW725 PLANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 879693-49 | 1 | ARMATURE | CH | |||
| 102 | 330003-26 | 1 | BEARING | CH | |||
| 103 | 373007-00 | 1 | FIELD 230V | CH | |||
| 104 | 322790-03 | 1 | HOUSING | CH | |||
| 105 | 322796-01 | 1 | CAP | CH | |||
| 106 | 369308-01 | 1 | CASTING SA | CH | |||
| 107 | 326036-01 | 1 | SHOE | CH | |||
| 110 | 322939-01 | 1 | SPINDLE | CH | |||
| 111 | 322803 | 1 | SPRING | CH | |||
| 112 | 911246 | 3 | SCREW | CH | |||
| 113 | 747032-10 | 1 | CORDSET (EURO) | CH | |||
| 114 | 369380-49 | 1 | SWITCH KIT | CH | |||
| 115 | 911026 | 4 | SCREW | CH | |||
| 116 | 321384 | 1 | CAPACITOR | CH | |||
| 117 | 324826-00 | 2 | BRUSH & HOLDER 230V | CH | |||
| 118 | 878846 | 2 | LEAD 360MM | CH | |||
| 119 | 323675-03 | 1 | HOUSING SWITCH | CH | |||
| 121 | 323390-02 | 1 | BLANK | CH | |||
| 122 | 324418-49 | 1 | BLADEDRUM SA | CH | |||
| 123 | 371878 | 6 | REPAIR KIT | CH | |||
| 124 | 324248-00 | 2 | BLADE CLAMP | CH | |||
| 125 | 911391-01 | 4 | SCREW | CH | |||
| 127 | 323346 | 2 | BLADE CLAMP | CH | |||
| 128 | 770235 | 1 | PROTECTOR | CH | |||
| 129 | 323768-05 | 2 | LEAD 90MM BLACK | CH | |||
| 130 | 324341-00 | 1 | PLATE | CH | |||
| 132 | 324427-00 | 1 | BELT TOOTHED | CH | |||
| 133 | 324429-00 | 1 | PULLEY | CH | |||
| 135 | 322787 | 1 | COVER BELT | CH | |||
| 136 | 322794 | 1 | END CAP | CH | |||
| 137 | 916010 | 1 | BUMPER | CH | |||
| 138 | 916954 | 1 | SPRING | CH | |||
| 143 | 322797 | 1 | LEVER | CH | |||
| 144 | 323722-00 | 1 | SPRING | CH | |||
| 145 | 322330 | 1 | FIELDCASE | CH | |||
| 146 | 322894 | 1 | BRIDGE | CH | |||
| 147 | 916128 | 1 | BAFFLE FAN | CH | |||
| 148 | 322369-01 | 1 | LEVER | CH | |||
| 149 | 323553 | 1 | LEVER | CH | |||
| 150 | 323552 | 1 | CLIP | CH | |||
| 151 | 326161-00 | 1 | LEVER | CH | |||
| 154 | 322795 | 1 | ADJUSTER | CH | |||
| 155 | 821070 | 1 | CORD CLAMP | CH | |||
| 156 | 911897 | 1 | HOLDER | CH | |||
| 157 | 330003-31 | 1 | BEARING | CH | |||
| 158 | 918405 | 1 | PLATE | CH | |||
| 159 | 911325 | 13 | SCREW | CH | |||
| 160 | 894748 | 2 | O RING | CH | |||
| 161 | 916231 | 2 | SCREW | CH | |||
| 162 | D911324 | 2 | SCREW | CH | |||
| 163 | 911276 | 1 | SCREW | CH | |||
| 164 | 324006-00 | 4 | SCREW | CH | |||
| 166 | 324649-00 | 1 | STAND | CH | |||
| 167 | 326088-00 | 1 | NUT M10 DIN562 | CH | |||
| 168 | 371878 | 1 | REPAIR KIT | CH | |||
| 169 | 326081-00 | 1 | PULLEY M10 | CH | |||
| 171 | 325422-00 | 1 | INSERT | CH | |||
| 172 | 325316-00 | 1 | ADAPTOR | CH | |||
| 800 | 870889-02 | 1 | GREASE | CH |
