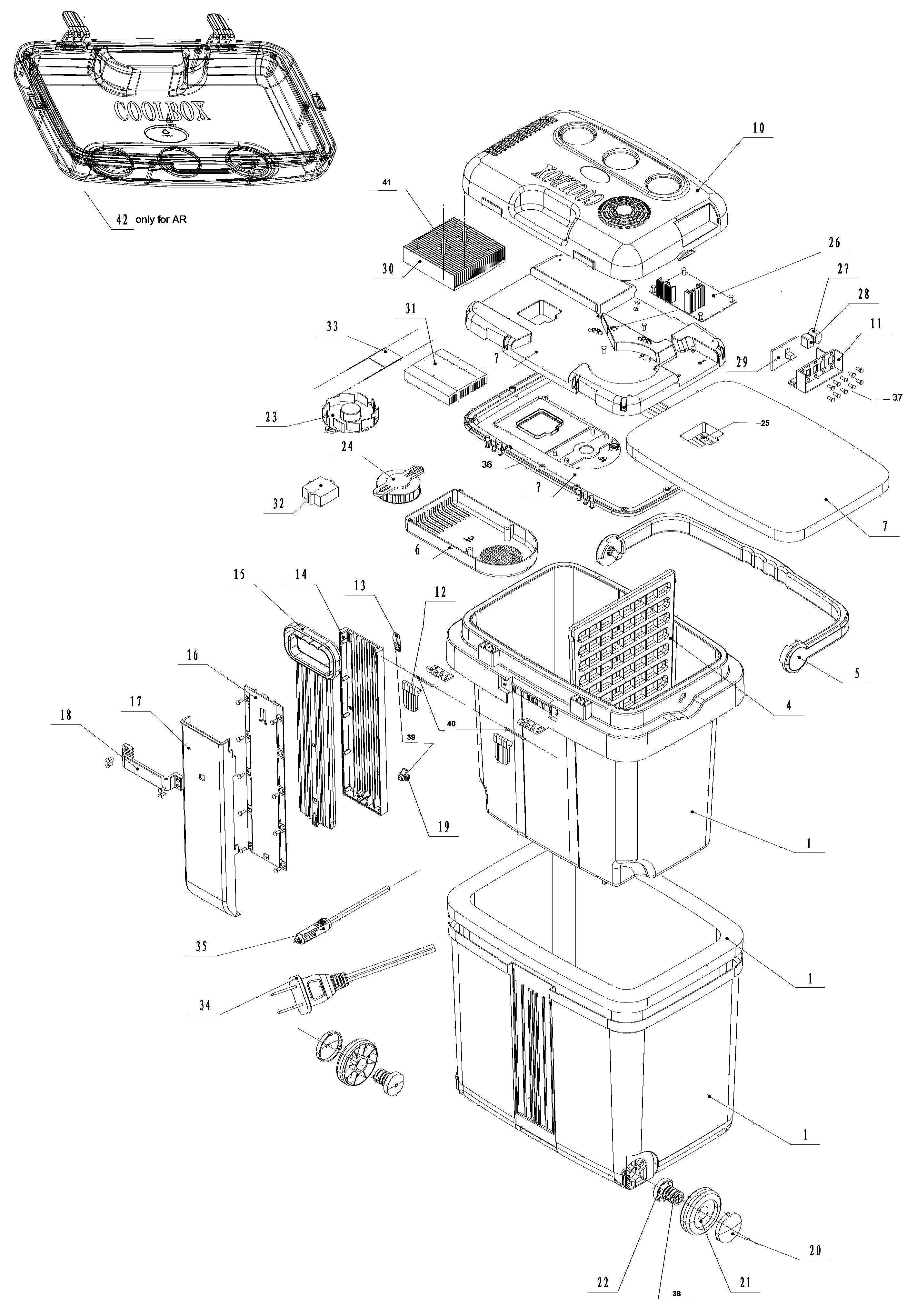

BDC33L COOLER / HEATER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140143-14 | 1 | OUTER CASE ASSY. | B2C | |||
| 4 | 5140143-15 | 1 | DIVIDER | B2C | |||
| 5 | 5140143-16 | 1 | Handle | B2C | |||
| 6 | 5140143-17 | 1 | COVER | B2C | |||
| 7 | 5140143-18 | 1 | LID ASSEMBLY | B2C | |||
| 10 | 5140143-19 | 1 | OUTER COVER | B2C | |||
| 11 | 5140143-20 | 1 | SWITCH HOLDER | B2C | |||
| 12 | 5140143-21 | 2 | HINGE | B2C | |||
| 13 | 5140143-22 | 1 | PULLER | B2C | |||
| 14 | 5140143-23 | 1 | EXTENSION | B2C | |||
| 15 | 5140143-24 | 1 | PULLER | B2C | |||
| 16 | 5140143-25 | 1 | COVER | B2C | |||
| 17 | 5140143-26 | 1 | OUTER COVER | B2C | |||
| 18 | 5140143-27 | 1 | EXTENSION | B2C | |||
| 19 | 5140143-28 | 1 | LOCK | B2C | |||
| 20 | 5140143-29 | 2 | WHEEL COVER | B2C | |||
| 21 | 5140143-30 | 2 | WHEEL | B2C | |||
| 22 | 5140143-31 | 2 | AXLE | B2C | |||
| 23 | 5140143-32 | 1 | FAN | B2C | |||
| 24 | 5140143-33 | 1 | FAN | B2C | |||
| 25 | 5140143-34 | 1 | THERMOSTAT | B2C | |||
| 26 | 5140143-35 | 1 | SWITCH | B2C | |||
| 27 | 5140143-36 | 1 | AC INLET | B2C | |||
| 28 | 5140143-37 | 1 | DC INLET | B2C | |||
| 29 | 5140143-38 | 1 | SWITCH PANEL | B2C | |||
| 30 | 5140143-39 | 1 | RADIATOR | B2C | |||
| 31 | 5140143-40 | 1 | RADIATOR | B2C | |||
| 32 | 5140143-41 | 1 | RADIATOR | B2C | |||
| 33 | 5140143-42 | 1 | COOLING UNIT | B2C | |||
| 34 | 5140143-54 | 1 | POWER CORD | B2C | |||
| 35 | 5140143-44 | 1 | POWER CORD | B2C | |||
| 36 | 5140143-45 | 1 | SEALING TAPE | B2C | |||
| 37 | 5140143-46 | 1 | SCREW | B2C | |||
| 38 | 5140143-47 | 2 | SPRING CLIP | B2C | |||
| 39 | 5140143-48 | 2 | SPRING | B2C | |||
| 40 | 5140143-49 | 2 | CONNECTING ROD | B2C | |||
| 41 | 5140143-50 | 1 | SCREW | B2C |
