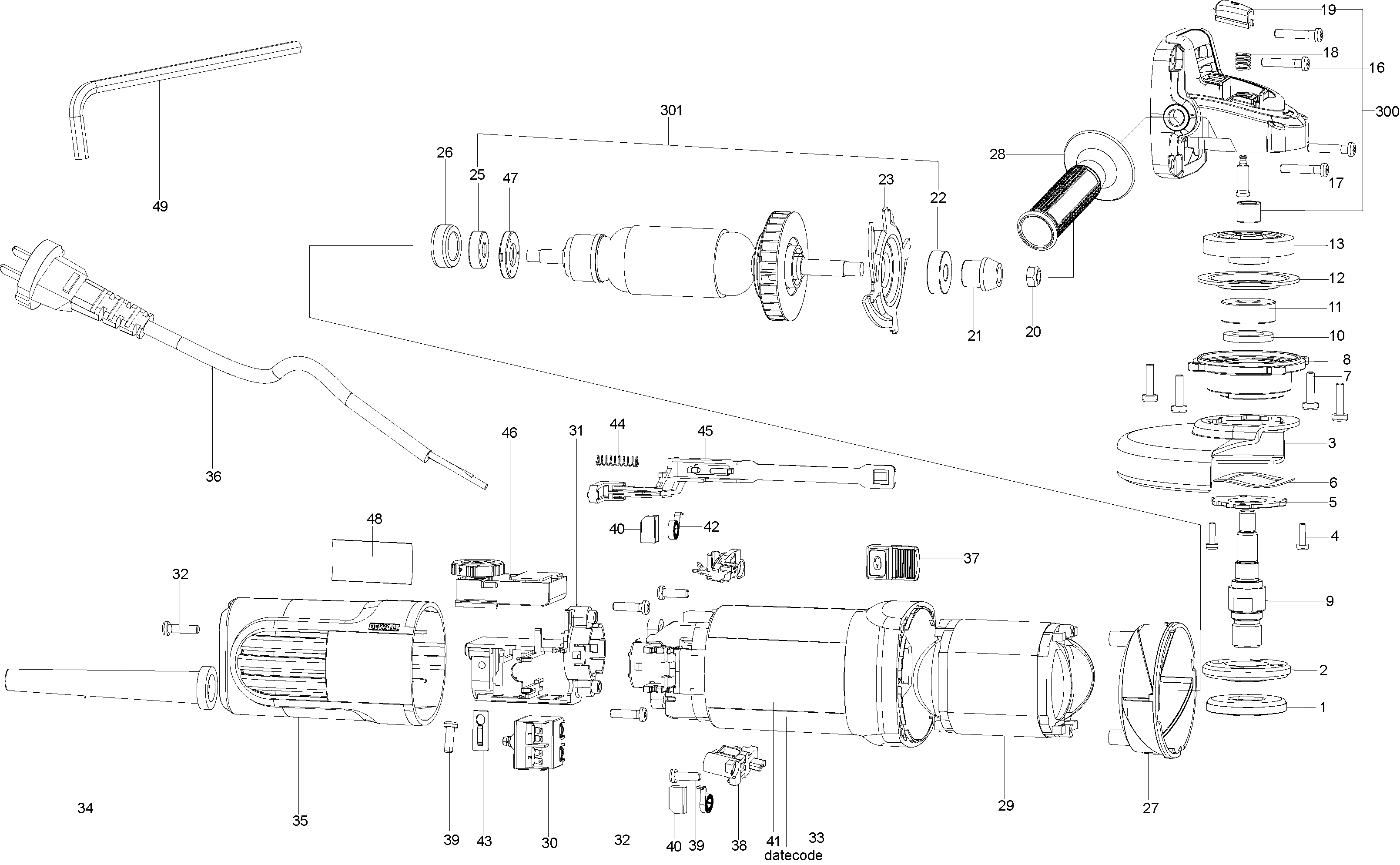

DWE4118 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N527725 | 1 | OUTER FLANGE | B3 | |||
| 2 | N527720 | 1 | INNER FLANGE | B3 | |||
| 3 | N516995 | 1 | GUARD | B3 | |||
| 4 | N516962 | 3 | SCREW | M3x11mm | B3 | ||
| 5 | N525975 | 1 | GUARD RET PLATE | B3 | |||
| 6 | 393576-00 | 1 | RING | B3 | |||
| 7 | N520080 | 4 | SCREW | B3 | |||
| 8 | N516728 | 1 | GEARCASE | B3 | |||
| 9 | N527723 | 1 | SPINDLE | 5/8'' UNC-2A | B3 | ||
| 10 | 641893-00 | 1 | FELT SEAL | B3 | |||
| 11 | 605040-22 | 1 | BEARING | B3 | |||
| 12 | N520065 | 1 | FLANGE | B3 | |||
| 13 | 661243-00 | 1 | GEAR & PINION | B3 | |||
| 16 | N520085 | 4 | SCREW | B3 | |||
| 17 | N499495 | 1 | SPINDLE LOCK | B3 | |||
| 18 | N520072 | 1 | SPRING | B3 | |||
| 19 | N499496 | 1 | BUTTON | B3 | |||
| 20 | 49205017 | 1 | NUT | B3 | |||
| 21 | 661243-00 | 1 | GEAR & PINION | B3 | |||
| 22 | N110359 | 1 | BEARING | B3 | |||
| 23 | 401622-01 | 1 | FLANGE | B3 | |||
| 25 | 605040-03 | 1 | BEARING BALL | B3 | |||
| 26 | 930275-00 | 1 | SLEEVE | B3 | |||
| 27 | N522613 | 1 | BAFFLE | B3 | |||
| 28 | N512593 | 1 | HANDLE SIDE SA | B3 | |||
| 29 | N615214 | 1 | FIELD | B3 | |||
| 30 | N327459 | 1 | SWITCH | B3 | |||
| 31 | N513692 | 1 | SWITCH SUPPORT | B3 | |||
| 32 | N520087 | 3 | SCREW | B3 | |||
| 33 | N506686 | 1 | FIELDCASE | B3 | |||
| 34 | 641081-00 | 1 | CORD PROTECTOR | B3 | |||
| 35 | N517652 | 1 | END CAP | B3 | |||
| 36 | N534393 | 1 | CORDSET | B3 | |||
| 37 | N519344 | 1 | BUTTON | B3 | |||
| 38 | N566924 | 2 | BRUSH HOLDER SA | B3 | |||
| 39 | N520084 | 3 | SCREW | B3 | |||
| 40 | N082895 | 1 | BRUSH PAIR 115V | 115V - 120V | B3 | ||
| 41 | N585151 | 1 | RATING LABEL | B3 | |||
| 42 | 562204-00 | 2 | SPRING | B3 | |||
| 43 | N525990 | 1 | CORD CLAMP | B3 | |||
| 44 | N526221 | 1 | SPRING | B3 | |||
| 45 | N510166 | 1 | LINK | B3 | |||
| 46 | N575286 | 1 | MODULE ASSY. | B3 | |||
| 47 | N514046 | 1 | MAGNET | B3 | |||
| 48 | N527000 | 1 | LABEL | B3 | |||
| 49 | N107295 | 1 | HEX KEY | 6 mm | B3 | ||
| 300 | N561809 | 1 | GEARCASE SA | B3 | |||
| 301 | N615213 | 1 | ARMATURE ASSY. | B3 |
