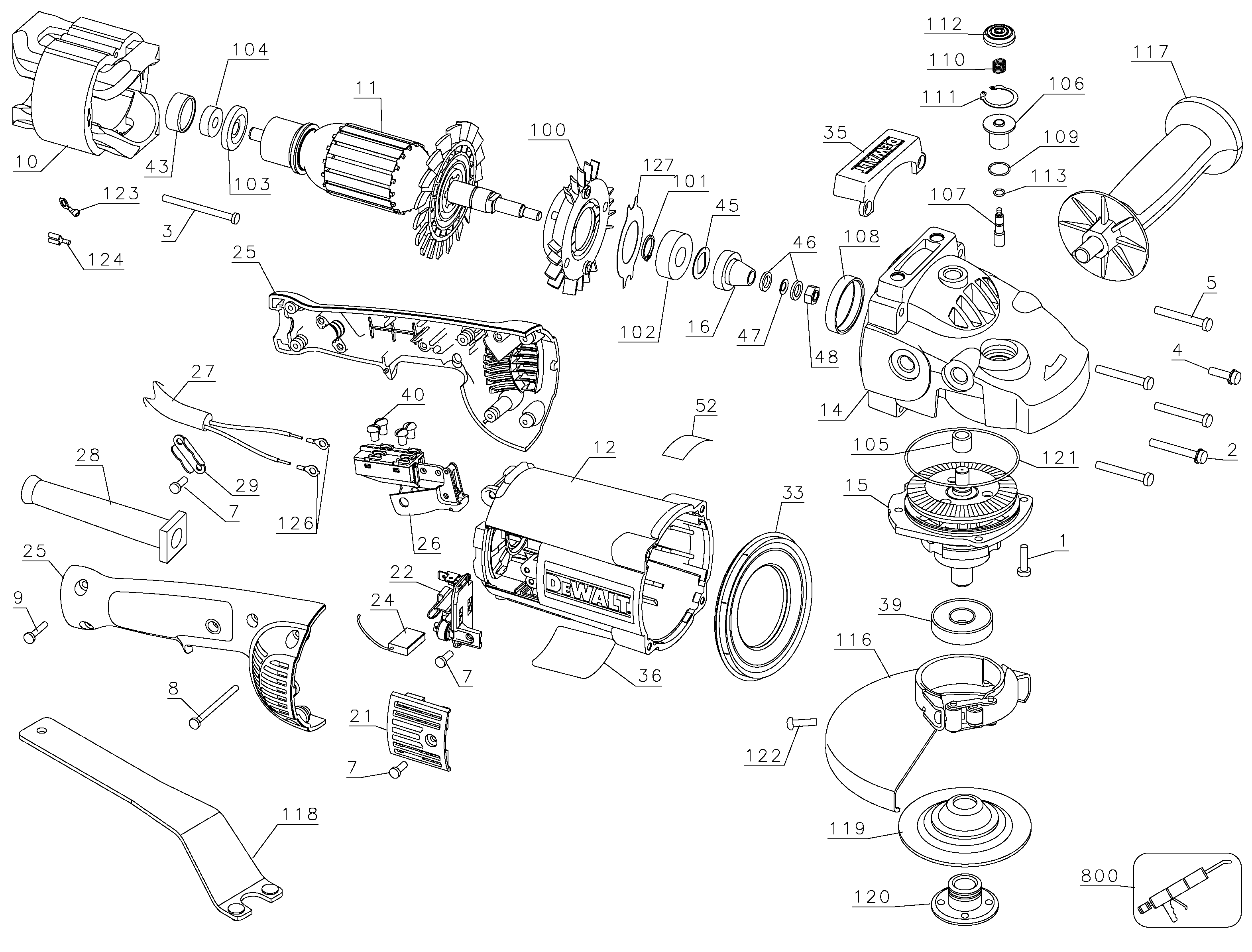

D28494N ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-15 | 4 | SCREW | B3 | |||
| 2 | 330019-26 | 4 | SCREW | B3 | |||
| 3 | 330019-19 | 2 | SCREW | B3 | |||
| 4 | 330045-70 | 1 | SCREW | B3 | |||
| 5 | 330045-67 | 1 | SCREW | B3 | |||
| 7 | 330019-11 | 6 | SCREW | M4.55x13 T20 | B3 | ||
| 8 | 330019-18 | 3 | SCREW | M4.55 x 50 PLASTIC THD FMG | B3 | ||
| 9 | 330019-32 | 4 | SCREW | B3 | |||
| 10 | 617004-04 | 1 | FIELD 115V | B3 | |||
| 11 | 621864-06SV | 1 | ARMATURE&BRGS. | B3 | |||
| 12 | 393239-00 | 1 | FIELD CASE | B3 | |||
| 14 | 398618-00SV | 1 | GEAR CASE ASSY. | INC.105-113 | B3 | ||
| 15 | 398621-09SV | 1 | GEAR CASE COVER ASSY | B3 | |||
| 16 | 603237-01 | 1 | PINION ASSY. | 12T | B3 | ||
| 21 | 394387-00 | 2 | BRUSH COVER | B3 | |||
| 22 | 617001-00 | 2 | BRUSH HOLDER SA | B3 | |||
| 24 | 392574-01 | 2 | BRUSH 115V | CUT OFF | B3 | ||
| 25 | 395184-00 | 1 | HANDLE SA | B3 | |||
| 26 | 394375-04 | 1 | SWITCH SA | B3 | |||
| 27 | 614838-00 | 1 | CORDSET | 14-2 S 8FT | B3 | ||
| 28 | 330005-11 | 1 | CORD PROTECTOR | B3 | |||
| 29 | 604119-00 | 1 | CORD CLAMP | B3 | |||
| 33 | 614542-00 | 1 | BAFFLE | B3 | |||
| 35 | 620579-00 | 1 | BUMPER | B3 | |||
| 36 | 629789-00 | 1 | NAMEPLATE | D28494 TY 3 | B3 | ||
| 39 | 445928-01 | 1 | MOUNT | B3 | |||
| 40 | 384127-01 | 4 | SCREW | B3 | |||
| 43 | 609970-00 | 1 | SLEEVE INSULATING | B3 | |||
| 45 | 608568-00 | 1 | WASHER | B3 | |||
| 46 | 607502-00 | 2 | WASHER | B3 | |||
| 47 | 614045-00 | 1 | WASHER SPRING | B3 | |||
| 48 | 609125-00 | 1 | LOCK NUT | B3 | |||
| 52 | 613184-00 | 1 | ID LABEL | D28494, 6000 RPM | B3 | ||
| 100 | 614708-00 | 1 | SPACER | B3 | |||
| 101 | 398605-00 | 1 | RETAINER | B3 | |||
| 102 | 605040-27 | 1 | BEARING | B3 | |||
| 103 | 393238-00 | 1 | SHIELD | B3 | |||
| 104 | N110359 | 1 | BEARING | B3 | |||
| 105 | 330004-06 | 1 | BEARING NEEDLE | B3 | |||
| 106 | 611213-00 | 1 | SLEEVE | B3 | |||
| 107 | 611212-00 | 1 | LOCK PIN | B3 | |||
| 108 | 609971-00 | 1 | SLEEVE | B3 | |||
| 109 | 50049-00 | 1 | RING | B3 | |||
| 110 | 395029-00 | 1 | SPRING | B3 | |||
| 111 | 603470-00 | 1 | RETAINER | B3 | |||
| 112 | 610999-00 | 1 | CAP | B3 | |||
| 113 | 603608-00 | 1 | O RING | B3 | |||
| 116 | N037746 | 1 | GUARD | 9 INCH, DEEP | INCL. 122 | B3 | |
| 117 | 651858-01 | 1 | SIDE HANDLE | B3 | |||
| 118 | 061820-01 | 1 | SPANNER WRENCH | B3 | |||
| 119 | 054339-00 | 1 | FLANGE | B3 | |||
| 120 | 22191-00 | 1 | NUT, CLAMP | B3 | |||
| 121 | 397031-00 | 1 | O RING | B3 | |||
| 122 | 606863-00 | 1 | SCREW | B3 | |||
| 123 | 610057-00 | 2 | TERMINAL | FIELD LEAD TO SWITCH | B3 | ||
| 124 | 612273-00 | 2 | TERMINAL | FIELD LEAD TO BRUSH | B3 | ||
| 126 | 395716-00 | 2 | TERMINAL | B3 | |||
| 127 | 613366-00 | 1 | INSERT | B3 | |||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | B3 | ||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | B3 |
