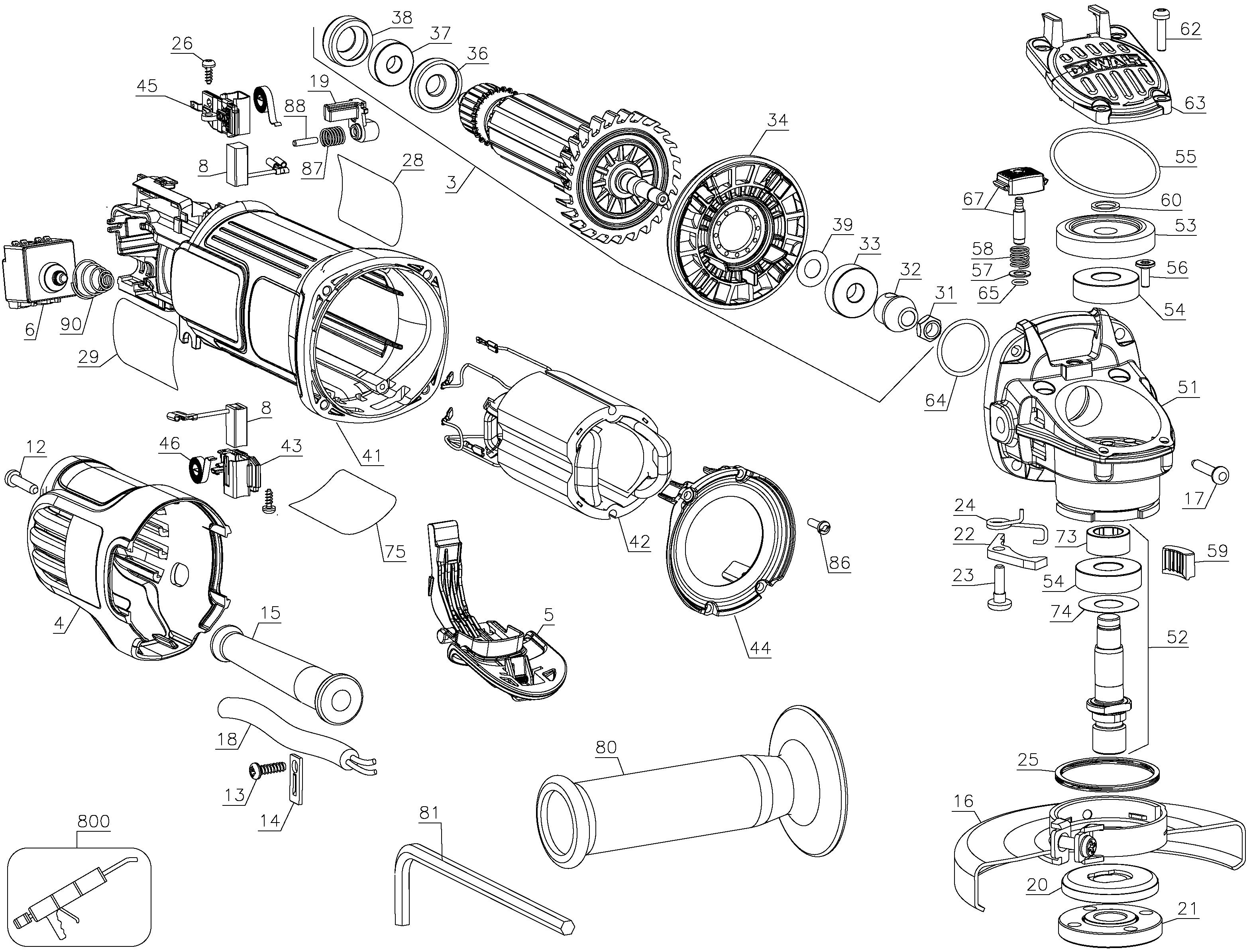

DWE4120 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | N389431 | 1 | ARMATURE 120V | B3 | |||
| 4 | N122021-01 | 1 | END HANDLE | B3 | |||
| 5 | N232486 | 1 | PADDLE | B3 | |||
| 6 | N327459 | 1 | SWITCH | B3 | |||
| 8 | N097696 | 2 | BRUSH | Pop off | B3 | ||
| 12 | N017839 | 1 | SCREW | B3 | |||
| 13 | 562097-00 | 1 | SCREW | B3 | |||
| 14 | 619328-00 | 1 | CORD CLAMP | B3 | |||
| 15 | 330005-01 | 1 | CORD PROTECTOR | B3 | |||
| 16 | N105312 | 1 | GUARD | B3 | |||
| 17 | 330065-31 | 4 | PLASTIC SCREW | B3 | |||
| 18 | N168588 | 1 | CORDSET | 18-2SJT6FT NON-POLAR | B3 | ||
| 19 | N124292 | 1 | LOCK-ON BUTTON | B3 | |||
| 20 | N115381 | 1 | INNER FLANGE | B3 | |||
| 21 | N134467 | 1 | NUT | B3 | |||
| 22 | N136731 | 1 | LEVER | B3 | |||
| 23 | N137733 | 1 | SCREW | B3 | |||
| 24 | N105579 | 1 | SPRING | B3 | |||
| 25 | N135116 | 1 | WASHER SPRING | B3 | |||
| 26 | 593478-00 | 2 | SCREW | M3 X 8 | B3 | ||
| 28 | N149175 | 1 | BRAND LABEL | B3 | |||
| 29 | N157454 | 1 | NAMEPLATE | DWE4120-B3 TYPE 1 | B3 | ||
| 31 | 604484-00 | 1 | NUT | B3 | |||
| 32 | N153125 | 1 | PINION | B3 | |||
| 33 | N175104 | 1 | BEARING | B3 | |||
| 34 | N132042 | 1 | BAFFLE | B3 | |||
| 36 | N101228 | 1 | WASHER | B3 | |||
| 37 | N130916 | 1 | BEARING | B3 | |||
| 38 | 641823-00 | 1 | SLEEVE | B3 | |||
| 39 | N213812 | 1 | WASHER | B3 | |||
| 41 | N122019-01 | 1 | FIELDCASE | B3 | |||
| 42 | N232485 | 1 | FIELD 120V | 120V PKGD N156823 | B3 | ||
| 43 | N167600 | 1 | BRUSHBOX | B3 | |||
| 44 | N132864 | 1 | BAFFLE | B3 | |||
| 45 | N097702 | 1 | BRUSHBOX | B3 | |||
| 46 | N097703 | 2 | SPRING | B3 | |||
| 51 | N153391 | 1 | GEARCASE | B3 | |||
| 52 | N233357 | 1 | SPINDLE ASSEMBLY | 5/8-11, -B3 | B3 | ||
| 53 | N153126 | 1 | GEAR | B3 | |||
| 54 | 330003-64 | 2 | BEARING | B3 | |||
| 55 | N094024 | 1 | O RING | B3 | |||
| 56 | N118088 | 3 | SCREW | B3 | |||
| 57 | N447838 | 1 | WASHER | B3 | |||
| 58 | N092954 | 1 | SPRING | B3 | |||
| 59 | N126708 | 1 | INSERT | B3 | |||
| 60 | 444793-00 | 1 | CIRCLIP | B3 | |||
| 62 | N122904 | 4 | SCREW | B3 | |||
| 63 | N116180 | 1 | GEARCASE COVER | B3 | |||
| 64 | N119639 | 1 | O RING | B3 | |||
| 65 | N094012 | 1 | O RING | B3 | |||
| 67 | N181767 | 1 | SPINDLE LOCK | B3 | |||
| 73 | N095815 | 1 | SLEEVE | B3 | |||
| 74 | 638229-00 | 1 | WASHER | B3 | |||
| 75 | N185083 | 1 | WARNING LABEL | B3 | |||
| 80 | 562211-00 | 1 | HANDLE SIDE SA | B3 | |||
| 81 | N107295 | 1 | HEX KEY | 6 mm | B3 | ||
| 86 | 330065-25 | 4 | SCREW | B3 | |||
| 87 | 562210-00 | 2 | SPRING | B3 | |||
| 88 | N221693 | 1 | ROLL PIN | B3 | |||
| 90 | N260662 | 1 | SPRING | B3 | |||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | B3 | ||
| 800 | 30301914-01 | 1 | GREASE | 35LBS RHEOLUBE 380G1 | B3 | ||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | B3 |
